NOVAMCTRL700
NOVASTAR

NOVAMCTRL700

ORDER CODE: NOVAMCTRL700

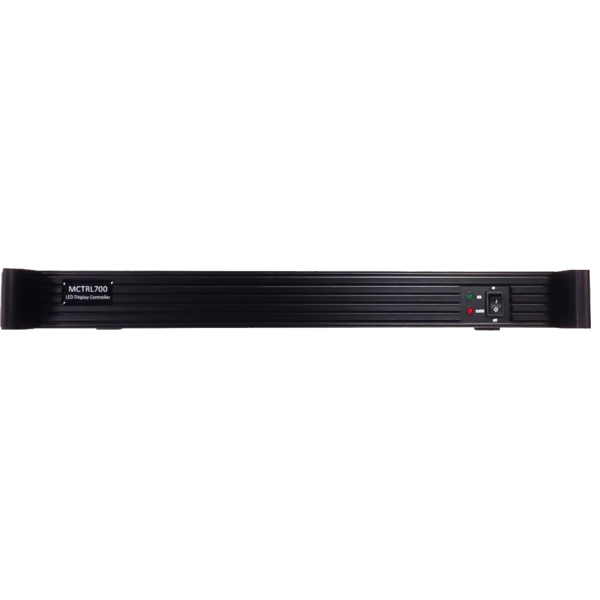

The MCTRL700 is an LED display controller developed by NovaStar. It supports 1x DVI input, 1x HDLMI input, 1xaudio input, and 6x Ethernet outputs. The maximum loading capacity of a single MCTRL700 is 1920×1200@60Hz. The MCTRL700 communicates with PC via Type-B USB port. Multiple MCTRL700 units can be cascaded via UART port. The MCTRL700 can be mainly used in the rental and fixed applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

Main features:

  • INPUT
  • DVI IN:
  • - 1x SL-DVI input connector.
  • - Resolutions up to 1920×1200@60Hz.
  • - Custom resolutions supported.
  • - Maximum width: 3840 (3840×600@60Hz).
  • - Maximum height: 3840 (548×3840@60Hz).
  • - HDCP 1.4 compliant.
  • - DOES NOT support interlaced signal input.
  • HDMI IN:
  • - 1x HDMI 1.3 input connector.
  • - Resolutions up to 1920×1200@60Hz.
  • - Custom resolutions supported.
  • - Maximum width: 3840 (3840×600@60Hz).
  • - Maximum height: 3840 (548×3840@60Hz).
  • - HDCP1.4 compliant.
  • - DOES NOT support interlaced signal input.
  • AUDIO: Audio input connector.
  • OUTPUT
  • 1~6:
  • - 6x RJ45 Gigabit Ethernet ports.
  • - Capacity per port up to 650,000 pixels.
  • - Redundancy between Ethernet ports supported.
  • HDMI OUT: 1x HDMI 1.3 output connector for cascading.
  • DVI OUT: 1x SL-DVI output connector for cascading.
  • CONTROL
  • USB Type-B: USB 2.0 port to connect to PC.
  • UART IN/OUT:
  • - Input and output ports to cascade devices.
  • - Up to 20 devices can be cascaded.
  • POWER: AC 100V-240V~50/60Hz
  • Rated power consumption: 12W.
  • Temperature: -20°C to +60°C.
  • Humidity: 10% RH to 90% RH, non-condensing.
  • Size (LxHxD): 482x44.4x268,5 mm.
  • Net weight: 2.6 kg; Note: It is the weight of a single device only.
  • Rackmount: 1U.
  • Carrying case: 530 mm × 140 mm × 370 mm.
  • Accessory box: 402 mm × 347 mm × 65 mm.
  • Accessories: 1x Power cord, 1x USB cable, 1x DVI cable.
  • Packing box: 550 mm × 440 mm × 175 mm.
  • Certifications: FCC, CE, IC.
