PBC63614
ORDER CODE: PBC63614
Share me

Immagine Principale
  • PBC63614
  • PBC63614

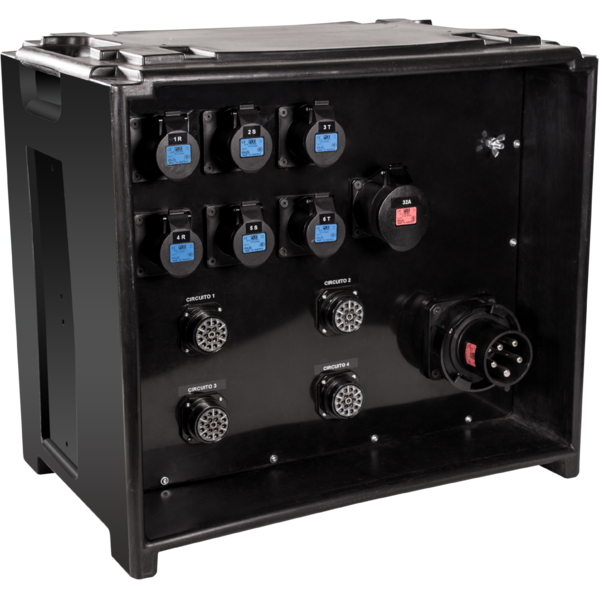

  • Power distribution box, 63A-5p input plug.



    Features:
    Structure:
    IP 54 shock resistant, robust and mobile insulated thermoplastic box with stackable shape.
    IP 55 protection hatch for controls and instruments.
    Box dimensions (WxHxD): 60x40x54 cm.
    Input:
    63A-5p (3P+N+E) panel mount CEE plug, 400V 50/60Hz IP67, 1pc (code 913315).
    Output:
    32A-5p (3P+N+E) panel mount CEE socket, 400V 50/60Hz IP67, 1 pc (code 912425).
    16A-3p (1P+N+E) panel mount CEE socket, 230V 50/60Hz IP44, 6 pcs (code 911413).
    Panel mount multipin sockets 19P IP67 Socapex, 4pcs (code 916141).
    Protection:
    4P magneto-thermic switch, 4 modules, 63A, Curve C, 400-415V, 10kA, 1 pc.
    Pure differential switch 4P, 4 modULES, 40A, Tipe A, 30mA, 5 pcs.
    4P differential magnetothermic circuit breaker, 4P, 4 modules, Curve C, 32A, 6kA Tipe A, 30mA, 1 pc.
    Magneto-thermic switch 1P+N, 1 module, 16A, Curve C 6kA, 30 pcs.
    Tools:
    4P fuser block, 4 modules, 1 pc.
    Network analyzer, voltmeters / ammeters, timers, 4 modules, 1 pc.

    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
