Pixie Spot
ORDER CODE: PIXIESPOT
Share me

Immagine Principale
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
  • PIXIESPOT
    • Pixie Spot
    Code Housing Avail.
    PIXIESPOTBK Black

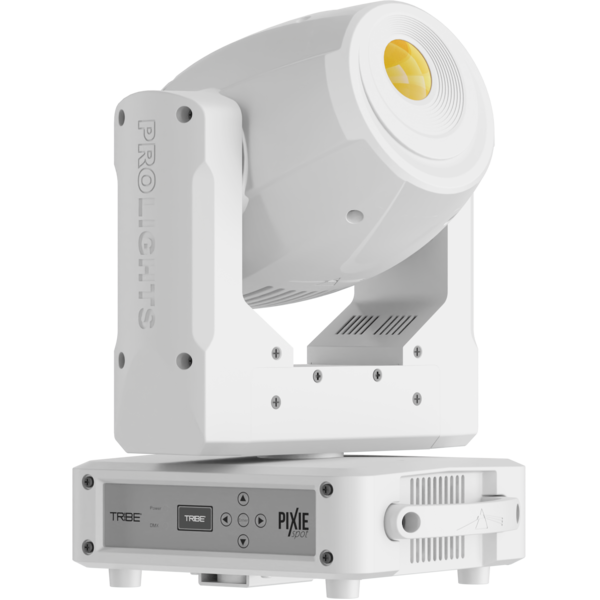

    PIXIESPOTWH White

    Pixie Spot was the first TRIBE spot moving head to deliver a full spectrum chromatic synthesis, equipped with a 60W RGBW/FC LED light source to perform limitless brightness, intense and saturated colours as well as proper whites. Pixie Spot can be also controlled wireless through the optional USB Wi-Fi transceiver in combination with WIFIBOX and the SmartColor app.

    Features:
    60W RGBW/FC Osram Ostar LED source
    Colour mixing featuring rich saturated and pastel colours and white reproduction
    Effect section equipped with 3f circular prism
    Gobo wheel: 7 rotating gobos
    USB IN for control through SmartColor app through Wi-Fi USB

    LIGHT SOURCE
    • Source:
      60
      W
      RGBW Osram LED
    • Luminous flux:
      1'069
      lm
    • Lux:
      1'682
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      18
      °
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      linear CTO correction 2.700 K ~ 6.000 K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable
    • Gobo size:
      outer Ø 16.9 mm; image Ø 14 mm; thickness 0.2 ÷ 1.1 mm
    • Circular prism:
      3
      f
      with bi-directional rotation
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      270
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      15 / 18 / 23
      channel
    • Wireless Control:
      optional, proprietary protocol compatible with WIFIBOX, WDBOX
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 / 28
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      118
      W
    • Max power consumption (at 120V):
      120.3
      W
    • Output (at 230V):
      17
      units on a single power line
    • Output (at 120V):
      9
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Data:
      USB port for USB WIFI transmitter (optional)
    • Signal connection:
      XLR 3p IN/OUT connectors
    • Power connection:
      IEC IN/OUT connectors
    • Dimensions (WxHxD):
      253x352x192
      mm
    • Weight:
      7
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x PIXIESPOT
    • 1 x 1,5 meters BARE END - IEC power cable
    • 1 x OS24
    • User Manual
