PL22H53
Share me

Immagine Principale
  • PL22H53
  • PL22H53

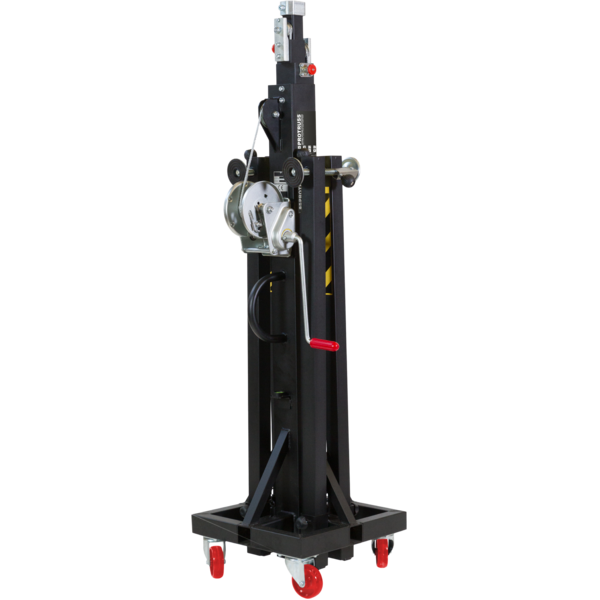

  • Telescopic lifter

    Features:
    Made of zinc-plated steel, highly resistant to corrosion and oxidation
    Manual winch with automatic brake allowing for smooth and easy lifting
    Automatic safety device
    Four swivel wheels on the base for ease of transport
    Four independent stabilising legs, with adjustable mounting plates
    Built-in spirit level to help maintain vertical position during installation and adjustment

    TECHNICAL INFORMATION
    • Max load:
      220
      kg
    • Min load:
      25
      kg
    • Max height:
      5,3
      m
    • Height (folded):
      1,7
      m
    • Base area (open):
      211x211
      cm
    • Inner frame diameter:
      38
      mm
    • Lifter weight:
      72
      kg
    Product Code
    Accessory Code
    Description
    PL22H53 (optional)
    PL23H65 (optional)
    Support for truss fixed accessory, 29cm truss compatible
    PL22H53 (optional)
    PL23H65 (optional)
    Support for lighting bar accessory
    PL22H53 (optional)
    PL23H65 (optional)
    Adjustable support for truss accessory, 18-59cm
