  • RL60H65
  • RL60H65
  • Front-load lifter built with sliding aluminium profiles and double-arm trolley

    Features:
    Manual winch with automatic brake for smooth and easy lifting
    Safety systems:
    Auto-lock security, profiles are raised one by one and then locked in the required position by the safety pins, avoiding the cable to support unnecessary load
    Inertial-lock security locks the trolley in a safe, fixed and stable position thus not relying on the cable for support
    Retentive-system ensures that the sliding of the profiles up to maximum height is correct
    Four independent stabilising legs with adjustable mounting plates
    Built-in spirit level to help maintain vertical position during installation and adjustment
    Two bars on the rear side for further reinforcement of the vertical profiles
    Oversized and twist-resistant steel cable, powerful auto-locking bolts and steel pulley, in accordance with DIN standards
    Four swivel wheels on the base for ease of transport

    TECHNICAL INFORMATION
    • Max load:
      600
      kg
    • Min load:
      40
      kg
    • Max height:
      6,5
      m

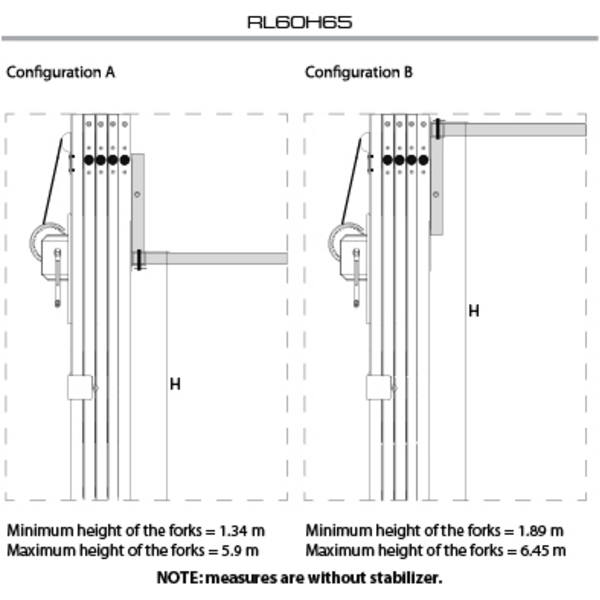

    • Max height fork lift:
      5,9
      m
    • Min height fork lift:
      1,3
      m
    • Height (folded):
      2
      m
    • Base area (open):
      251x215
      cm
    • Lifter weight:
      245
      kg
    Product Code
    Accessory Code
    Description
    RL60H65 (optional)
    Line array support with hook for Omega
    RL60H65 (optional)
    Support for truss adaptor (perpendicular), 2 units
    RL60H65 (optional)
    Hook adaptor for Omega, 2 units
