RSP

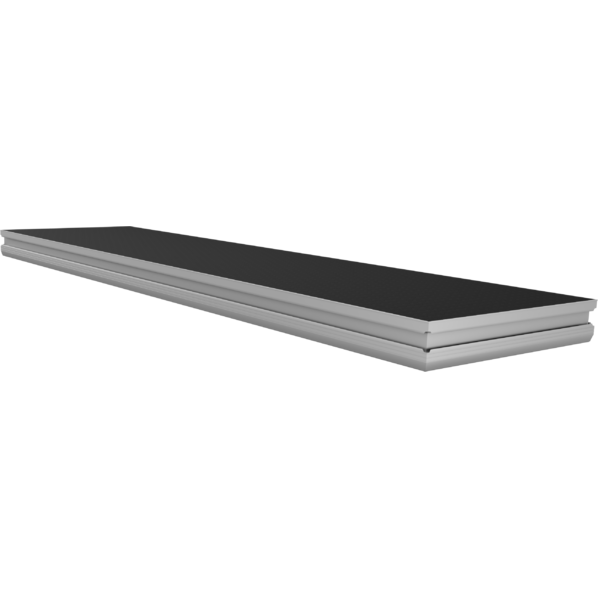

Deck panel in Plywood for modular stage system ROADSTAGE series anti-skid, suitable for indoor and outdoor applications.

Main features:

  • Available in 2x1 m, 1x1 m, 2x0,5 m
  • Resistant to weathering agents
  • Panel frame made of aluminium
  • Load capacity 750 kg/sqm (CEE standard)
  • Legs not included

PHOTO GALLERY

Technical specifications

Versions

Code
Plywood Panel (cm)
Weight (kg)
Load capacity (kg/m²)
RSP2010
RSP2010
200x100x9
31,1
750
RSP2005
RSP2005
200x50x9
18,8
750
RSP1010
RSP1010
100x100x9
18,1
750

Accessories & Related Products

RSSL
RSSL
(Optional)
RSTL
RSTL
(Optional)
RSSW040
RSSW040
(Optional)
Wheel leg in aluminium for ROADSTAGE system, h.40 cm
RSSA
RSSA
(Optional)
RSSF
RSSF
(Optional)
RSH200
RSH200
(Optional)
Aluminum handrail for ROADSTAGE system, dimensions: 200x120cm
RSH100
RSH100
(Optional)
Aluminum handrail for ROADSTAGE system, dimensions: 100x120cm
RSPT2010
RSPT2010
(Optional)
Stage trolley for ROADSTAGE system, dimensions 208x102 cm
RSA101
RSA101
(Optional)
Stage deck clamp for ROADSTAGE system
RSA102
RSA102
(Optional)
Handrail assembly clamp for ROADSTAGE system, compatible with RSH
RSA103
RSA103
(Optional)
Self leveling insert for ROADSTAGE system
RSA104
RSA104
(Optional)
Assembly insert for RSS ROADSTAGE system
RSA105
RSA105
(Optional)
Stage leg clamp for ROADSTAGE system
RSA109
RSA109
(Optional)
Double stage leg clamp for ROADSTAGE system
RSA118
RSA118
(Optional)
Handrail clamp for ROADSTAGE system
RSA124
RSA124
(Optional)
Stage deck side clamp for ROADSTAGE and LITESTAGE system
RSASPL100
RSASPL100
(Optional)
Skirting Profile for Stage deck, L.975mm
RSASPL200
RSASPL200
(Optional)
Skirting Profile for Stage deck, L.1975mm

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetRsp_A4_DATASHEET_(ITA).pdf441KB
Letter datasheetRsp_A4_DATASHEET_(EN).pdf441KB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DRSP_2D.zip1MB
Technical drawingRSP_TECHNICAL DRAWINGS.zip123KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
