SETSAC3MX
SEETRONIC

SETSAC3MX

ORDER CODE: SETSAC3MX

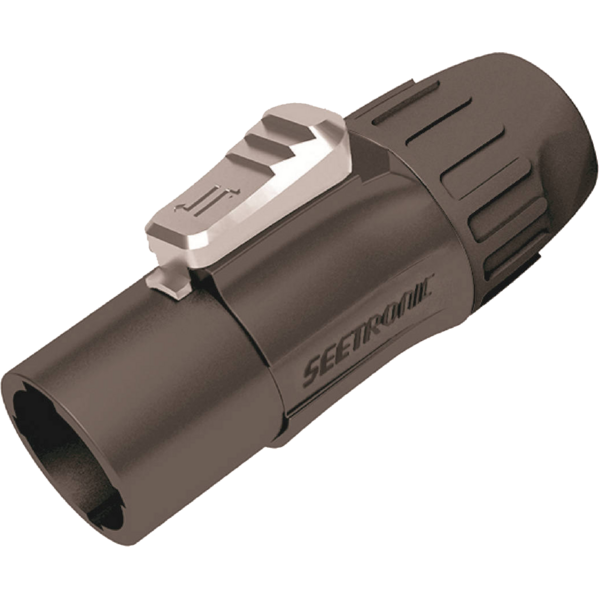

PowerCON TRUE1 3-pin male cable connector (line, neutral, ground) for powering devices that need a robust solution and a Quick lock safe quick lock system.
Attention: PowerCON is not designed for "hot" connection, so it is not recommended to connect or disconnect devices under load!

Main features:

  • Cable: 7 - 9 mm (the small aperture aprons) / 9-11 mm (Large diameter rubber ring).
  • Locking device: Quick Lock.
  • Lifetime: > 1000 mating cycles.
  • Finish: Black.
  • Contacts: Bronze.
  • Locking button: die-cast Zinc casting.
  • Shell: Polyamide.
  • Flammability class: UL94 V-0
  • Solderability: complies with IEC 68-2-20.
  • Degree of protection: IP65.
  • Temperature range: from -30 °C to +80 °C.
  • Dimensions (WxHxD): 70x35x28 mm.

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualSetsac3mx_USER_MANUAL.pdf104KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download
    2DSetsac3mx_CAD_2D.dwg1MB
    Technical drawingSetsac3mx_TECHNICAL_DRAWING.pdf69KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
