SF30
PROTRUSS

SF30

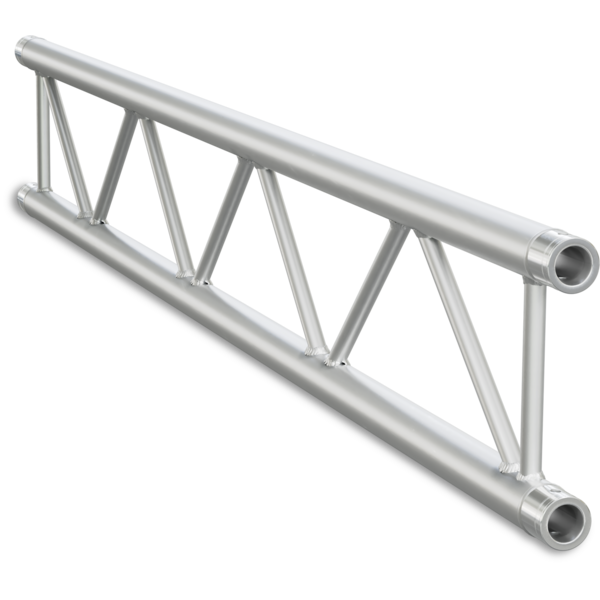

Flat section aluminium truss with 29 cm long sides

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 20x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • Fast connection kit FCF5 included.
  • Black version RAL 9005

PHOTO GALLERY

Technical specifications

Versions

Code
Tube (mm)
Diagonal (mm)
W (cm)
H (cm)
D (cm)
Weight (kg)
Volume (mc)
Color
SF30050
SF30050
50x2
20x2
50
5
29
1,5
0,007
AL
SF30050B
SF30050B (DISCONTINUED)
50x2
20x2
50
5
29
1,5
0,007
BK
SF30100
SF30100
50x2
20x2
100
5
29
2,5
0,015
AL
SF30100B
SF30100B (DISCONTINUED)
50x2
20x2
100
5
29
2,5
0,015
BK
SF30150
SF30150
50x2
20x2
150
5
29
3,4
0,022
AL
SF30150B
SF30150B (END OF LIFE)
50x2
20x2
150
5
29
3,4
0,022
BK
SF30200
SF30200
50x2
20x2
200
5
29
4,4
0,029
AL
SF30200B
SF30200B (DISCONTINUED)
50x2
20x2
200
5
29
4,4
0,029
BK
SF30250
SF30250
50x2
20x2
250
5
29
5,40
0,036
AL
SF30250B
SF30250B (DISCONTINUED)
50x2
20x2
250
5
29
5,40
0,036
BK
SF30300
SF30300
50x2
20x2
300
5
29
6,40
0,044
AL
SF30300B
SF30300B (END OF LIFE)
50x2
20x2
300
5
29
6,40
0,044
BK
SF30350
SF30350
50x2
20x2
350
5
29
7,4
0,051
AL
SF30350B
SF30350B
50x2
20x2
350
5
29
7,4
0,051
BK
SF30400
SF30400
50x2
20x2
400
5
29
8,3
0,058
AL
SF30400B
SF30400B (DISCONTINUED)
50x2
20x2
400
5
29
8,3
0,058
BK
SF30474M6
SF30474M6 (END OF LIFE)
50x2
20x2
474,6
5
29
8,3
0,058
AL

Accessories & Related Products

FCF5
FCF5
(included)
Quick connection, 2 spigots, 4 pins, 4 safety spring, SF30/40
SF30L2045V
SF30L2045V
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 45°, Vert.
SF30L2045H
SF30L2045H
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 45°, Horiz.
SF30L2060V
SF30L2060V
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 60°, Vert.
SF30L2060H
SF30L2060H
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 60°, Horiz.
SF30L2090V
SF30L2090V
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 90°, Vert.
SF30L2090H
SF30L2090H
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 90°, Horiz.
SF30L2120V
SF30L2120V
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 120°, Vert.
SF30L2120H
SF30L2120H
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 120°, Horiz.
SF30L2135V
SF30L2135V
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 135°, Vert.
SF30L2135H
SF30L2135H
(optional)
2-way corner for SF30 Series, extrude tube 50x2mm, FCF5 included, 135°, Horiz.
SF30L3V
SF30L3V
(optional)
3-way L corner for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Vert.
SF30L3H
SF30L3H
(optional)
3-way L corner for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Horiz.
SF30T3V
SF30T3V
(optional)
3-way T joint for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Vert.
SF30T3H
SF30T3H
(optional)
3-way T joint for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Horiz.
SF30X4V
SF30X4V
(optional)
4-way X joint for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Vert.
SF30X4H
SF30X4H
(optional)
4-way X joint for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Horiz.
SF30L4090V
SF30L4090V
(optional)
4-way L joinL for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Vert.
SF30L4090H
SF30L4090H
(optional)
4-way L joinL for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Horiz.
SF30T4V
SF30T4V
(optional)
4-way T joint for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Vert.
SF30T4H
SF30T4H
(optional)
4-way T joint for SF30 Series, extrude tube 50x2mm, 2x FCF5 included, Horiz.
SF30FP
SF30FP
(optional)
Aluminium ground base for flat section trusses, SF30
