SF40
PROTRUSS

SF40

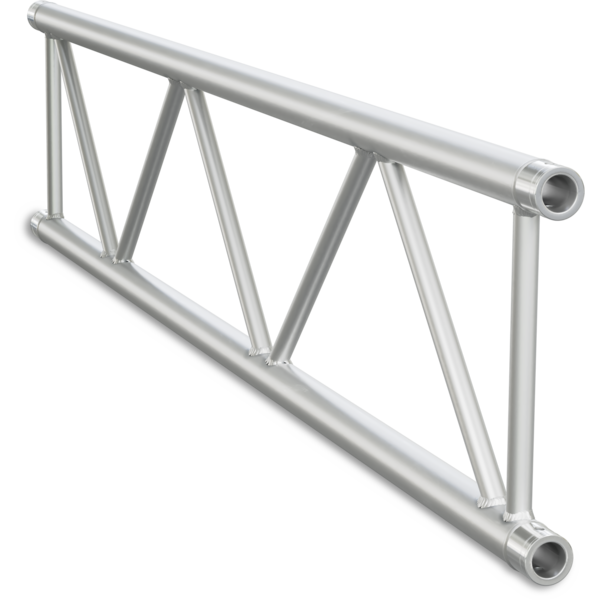

Flat section aluminium truss with 40 cm sides.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • Fast connection kit FCF5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Tube (mm)
Diagonal (mm)
W (mm)
H (mm)
D (mm)
Weight (kg)
Volume (m³)
Color
SF40050
SF40050
50x2
25x2
500
50
400
1,80
0,010
AL
SF40050B
SF40050B (DISCONTINUED)
50x2
25x2
500
50
400
1,80
0,010
BK
SF40100
SF40100
50x2
25x2
1000
50
400
3,00
0,020
AL
SF40100B
SF40100B (DISCONTINUED)
50x2
25x2
1000
50
400
3,00
0,020
BK
SF40150
SF40150
50x2
25x2
1500
50
400
4,58
0,030
AL
SF40150B
SF40150B (DISCONTINUED)
50x2
25x2
1500
50
400
4,58
0,030
BK
SF40200
SF40200
50x2
25x2
2000
50
400
5,00
0,040
AL
SF40200B
SF40200B (DISCONTINUED)
50x2
25x2
2000
50
400
5,00
0,040
BK
SF40250
SF40250
50x2
25x2
2500
50
400
6,10
0,050
AL
SF40250B
SF40250B (DISCONTINUED)
50x2
25x2
2500
50
400
6,10
0,050
BK
SF40300
SF40300
50x2
25x2
3000
50
400
7.10
0,060
AL
SF40300B
SF40300B (DISCONTINUED)
50x2
25x2
3000
50
400
7,10
0,060
BK
SF40350
SF40350
50x2
25x2
3500
50
400
9,15
0,070
AL
SF40350B
SF40350B (DISCONTINUED)
50x2
25x2
3500
50
400
9,15
0,070
BK
SF40400
SF40400
50x2
25x2
4000
50
400
9,10
0,080
AL
SF40400B
SF40400B (DISCONTINUED)
50x2
25x2
4000
50
400
9,10
0,080
BK

Accessories & Related Products

FCQ5
FCQ5
(Included)
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
SF40L2045V
SF40L2045V
(Optional)
2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 45°, Vert.
SF40L2060V
SF40L2060V
(Optional)
2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 60°, Vert.
SF40L2090V
SF40L2090V
(Optional)
2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 90°, Vert.
SF40L2120V
SF40L2120V
(Optional)
2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 120°, Vert.
SF40L2135V
SF40L2135V
(Optional)
2-way corner for SF40 Series, extrude tube 50x2mm, FCF5 included, 135°, Vert.
SF40T3
SF40T3
(Optional)
SF40X4
SF40X4
(Optional)
SF40FP
SF40FP
(Optional)
Aluminium ground base for flat section trusses, SF40
