    Code Housing Avail.
    SMARTBATBK Black
    SMARTBATWH White

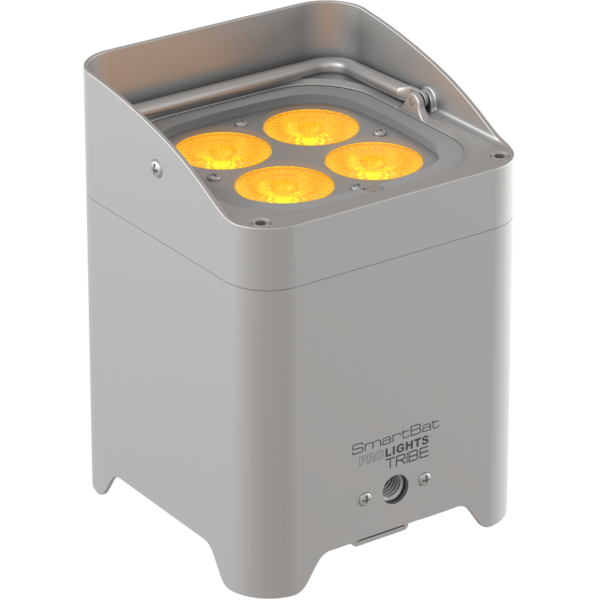

    Smart Bat is a wireless light designed to rewrite the rules for battery operated fixtures. Ensuring that high performance and good design all housed in a compact size and price that makes it affordable makes the SMARTBAT ideal for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColors app or through the IR controller - making it suitable for every level of user.

    Features:
    4x8W RGBW / FC LEDs
    Wireless operated: through proprietary wireless DMX protocol or SmartColors app for IOS and Android devices
    Long lasting battery life: 12 h in colour changing mode / 8 h in full
    Available in black or white
    Adjustable foot support for tilt regulation (up to 20°)

    LIGHT SOURCE
    • Source:
      4x8
      W
      RGBW LEDs
    • Luminous flux:
      1'127
      lm
    • Lux:
      833
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      13
      °
    • Field angle:
      30
      °
    • Lens diameter:
      42
      mm
    • Additional optics:
      25° and 45° optional
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Tilt angle:
      °
      adjustable foot support for tilt regulation (up to 20°)
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10
      channel
    • W-DMX:
      integrated, proprietary protocol compatible with WIFIBOX, WDBOX
    • Display:
      LED display user interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      0° ~ +35°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      30
      W
    • Max power consumption (at 120 V):
      31
      W
    BATTERY
    • Battery:
      24
      V
      lithium
    • Estimated battery life in colour change mode up to:
      12
      h
    • Estimated battery life in full-mode up to:
      8
      h
    • Re-charge connection:
      power cable
    • Re-charge time:
      5
      h/max
    • Battery status:
      LED battery status indicator
    PHYSICAL
    • Cooling:
      passive cooling and fan-free
    • Sospension and fixing:
      M12 threaded insert for easy clamp installation
    • Signal connection:
      XLR 3p IN/OUT connectors
    • Power connection:
      IEC IN/OUT connectors
    • IP rating:
      33
    • Dimensions (WxHxD):
      138x184x145
      mm
    • Weight:
      3,4
      kg
