SPIDER

ORDER CODE: SPIDER

Main features:

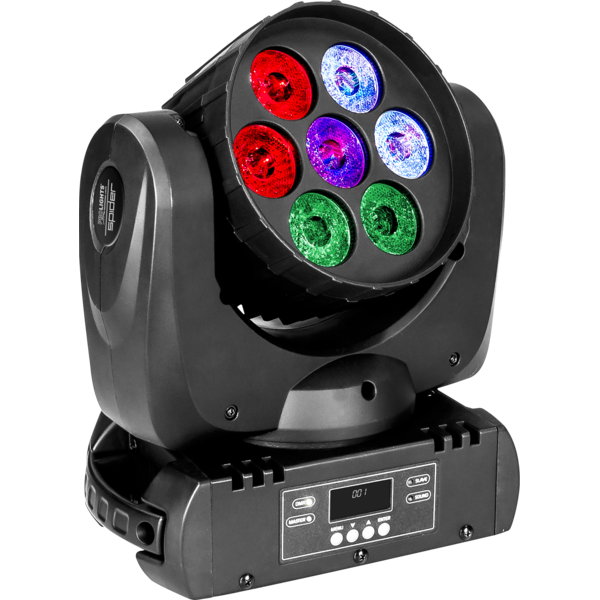

    SPIDER is the super-fast beam-washer of Prolights range, featuring compact and ultra-light design (5kg) for PAN/TILT movements at stunning speed and a 10° highly concentrated beam.
    SPIDER represents latest innovation in the field of projectors for generation of effects in the air, unveiling a special concept mixing innovative optical design and 3-step motors for movement.
    Despite the super-slim dimensions SPIDER has been conceived for amazing performance in large events by combining 7x10W CREE hi-power LEDs with an exclusive optical architecture.
    4D RGBW FullColor mixing allows a uniform reproduction of the whole chromatic range, brilliant colors and different white temperatures also in projection over short distances.
    LED section is controllable in 4 independent zones offering a higher creative experience to Light Designers in the generation of dynamic color chases and backlight effects.

    Light source and optics
    • 7 x 10W RGBW FullColor CREE LEDs
    • Lux @2m: 13'500
    • Colour synthesis: RGBW FullColor mixing (>16 million colours) for a limitless colour range and variable CTC control
    • White temperature presets: 3200K~10000K
    • Beam angle: 10°
    • LEDs average life span: >50'000 h

    Dimmer/Shutter/Strobe/Colors
    • 0-100% linear dimmer
    • 4 different dimming curves available
    • Independent shutter and fading effects with adjustable speed
    • Strobe: Electronic, 1-20 flash per second
    • Virtual color wheel with LEE and rainbow presets

    Electronics
    • Black&White& White LCD display for simplified access to control menu, configuration and DMX addressing
    • Master/Slave mode for stand-alone operations of more units in a chain
    • Sound mode: sound activation by built-in microphone
    • Manual mode: by remote control
    • Linear and “stepless” transition between DMX values
    • Flicker-free operations (>400Hz)
    • DMX configuration: 1/9/12/14/16/28 channels
    • Indipendent control of 4 LED section to create eye-candy effects
    • Unit reset: through control panel or via DMX
    • Cooling: forced ventilation with variable-speed low-noise fans, no heat generation

    Structure and moving body
    • Hi-resistance polymer case designed for improved heat dissipation
    • Internal protection: IP33
    • Power cable (shuko 1,5mt) included
    • Motion Angle: Pan = 600° Tilt = 220°
    • Pan/Tilt resolution: 8-bit or 16-bit:
    • Pan = 2,35° Pan Fine = 0,01° Tilt = 0,86° Tilt Fine = 0,004°
    • Suspension and fixing: any possible working position through omega brackets (included)

    Power supply
    • Power supply: 100-240V 50/60Hz
    • Connections: PowerCON IN/OUT
    • Power output allowing up to 16 units to be connected on a single power line (at 230V)
    • Max power consumption: 105W

    Weight and dimensions
    • Weight: 5,7 kg
    • Dimensions (WxHxD): 258x304x167 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

FCLSPIDER
FCLSPIDER
(Optional)
Flight case for 6pcs of SPIDER

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualSpider_USER_MANUAL_ITEN.pdf5MB

DMX chart & personalities

File name File size Download
SPIDER Firmware rev. 24-22
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@spider@9_channel@initial.xmlpDownload
prolights@spider@12_channel@initial.xmlpDownload
prolights@spider@14_channel@initial.xmlpDownload
prolights@spider@16_channel@initial.xmlpDownload
prolights@spider@28_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
24-22 STABLE 30/05/2019
