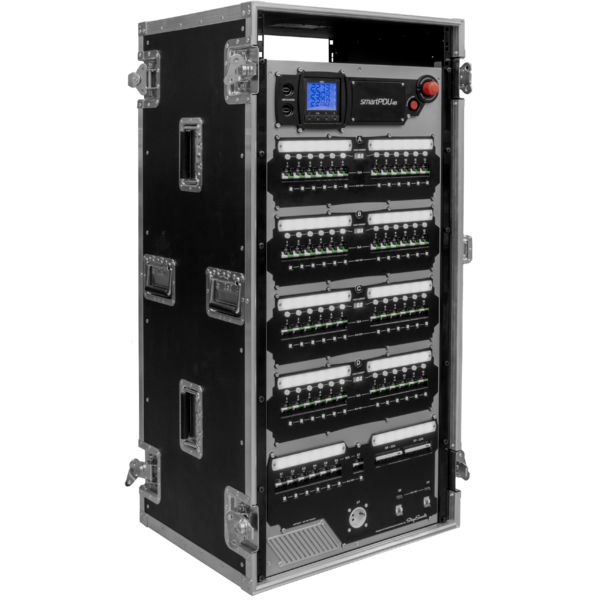

  • Power distribution is at the heart of any modern event, providing power to show-critical and highly valuable equipment. The SmartPDU series sets a new standard in functionality, flexibility, reliability and safety. It is suitable for all applications; from the smallest venue to the largest tour. Engineered to meet the tough requirements of the events market, the SmartPDU helps you to keep track of the situation at any moment, protecting your connected equipment and crew and, when needed, assisting you in diagnosing problems.

    Operational features
    True load monitoring – quick and easy overview of output loading. Catch potential problems before the breakers trip, find channels with spare capacity and more.
    Remote supervision – the networked system enables you to quickly view the status of all smartPDU’s in your system from any location on any device with a browser.
    Backlit marking strips – keeps your channel information clearly visible without external lighting.
    Superior circuit breakers – all breakers hold their rated current regardless of temperature. Immediate reset possible.
    Quick and easy to reconfigure – all main output connectors can be changed a minute, from Socapex to Harting, to Powercon.

     Safety features
    All outputs are fitted with individual RCDs (“earth leakage protection”) to maximise electrical safety while also minimising the impact of an electrical fault.
    Emergency stop for immediate shutdown.
    Loss of neutral protection prevents costly damage to connected loads caused by over-voltages.
    All breakers perform full electrical isolation in their “off” position.
    • Sealed, industrial grade circuit breakers (IEC 60947-1) to ensure reliable operation in dusty or humid conditions.

    Input/Through: powerlock 500A, 5-wire (TN-S) 230/400V
    Main meter: with LCD display and 4 buttons able to indicate the different input voltages, currents (including neutral current), the main frequency, the power factor, etc.
    Main breaker: NM8S-250, 4-pole MCCB type, 250 A-50 kA
    Protection: immediate disconnect in case of lost neutral (over voltage protection)
    Master metering: all voltages, currents (incl neutral), power factor and frequency
    No. of main channels: 48
    Connection, protection: Socapex or Harting multipin - RCBO 2-pole, 16A - 30mA available in PowerCon variant and PowerCon TRUE
    Aux channels 1 phase: 7
    Connection, protection: CEE 3-pole - RCBO 2-pole, 16A - 30mA
    Aux channels 3 phase: 2
    Connection, protection: CEE 5-pole - MCB 4-pole, 16/32/63A / RCD 30mA
    Front modules equipped with test buttons and seven-segment 3-character display, to display the load current for each channel of the module. Function available by pressing the illuminated buttons located above the switches
    emergency stop
    Protective earth bonding
    2 x USB charging sockets
    2 x 3-pin locking XLR sockets: XLR connections on board for 12V service lamp, dimmable and non-dimmable
    Frontal illumination of the dimmable modules by means of a special dimmer master
    Cooling: forced air cooling
    Monitoring software interface available accessible via browser
    Flight case included
    Maximum temperature: 40° C
    2 x Schuko sockets, one on the front and one on the back
    1 x powerConTRUE socket and 1 x powerCon socket for connecting service equipment
    CEE 63 5-pole optional
    2 x 3-phase auxiliary outputs, two 32 A single phase (or one 32 A if required 63 A on board)
    Dimensions: 19", 23U x 553 mm
    Weight (including case): 121 kg
    Weight (without case): 82 kg
    Certifications, standards: EN 61439-1, EN 62368-1:2014, EN 61000-6-1:2007, EN 55015:2006+A2:2009, BS7671, BS7909

    Accessory Code
    SSMSPDA48 (optional)
    SSMSPDA72 (optional)
    SSMSPDA36 (optional)
    Extra output module, 2 x Harting HA-16
    SSMSPDA48 (optional)
    SSMSPDA72 (optional)
    SSMSPDA36 (optional)
    Extra output module, 12 x powercon (grey)
    SSMSPDA48 (optional)
    SSMSPDA72 (optional)
    SSMSPDA36 (optional)
    Extra output module, 12 x powercon TRUE1
    SSMSPDA48 (optional)
    SSMSPDA72 (optional)
    SSMSPDA36 (optional)
    Extra output module, 2 x Socapex
