ST22L2
PROTRUSS
discontinued

ST22L2

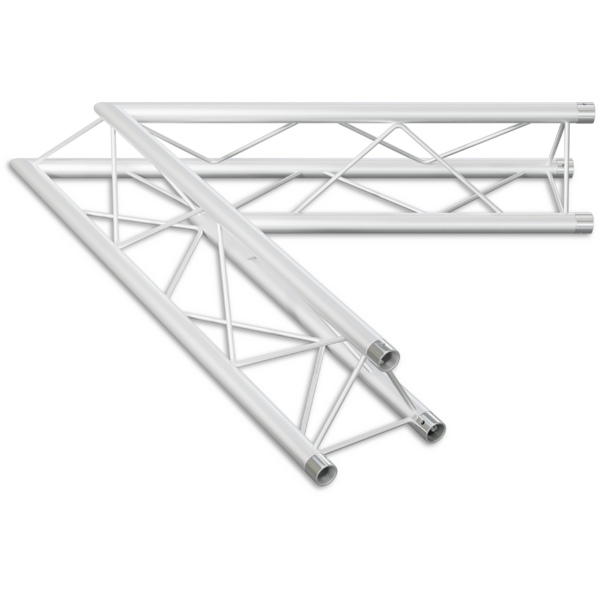

2-way L corner for ST22 truss series.

Main features:

  • Lengthwise: extruded tubes, Ø 35x1,5 mm EN AW 6060 T6.
  • Diagonal: extruded tubes, Ø 8x4 mm EN AW 6060 T6.
  • Plate: conical Quick-Lock connectors.
  • kit Fast Connection FCT3 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Type
Way (nr)
Angle
Orient.
Vertex
W (cm)
H (cm)
D (cm)
ST22L2045U
ST22L2045U (DISCONTINUED)
L2
2
45°
-
up
50
22
50
ST22L2060U
ST22L2060U (DISCONTINUED)
L2
2
60°
-
up
50
22
50
ST22L2090U
ST22L2090U (DISCONTINUED)
L2
2
90°
-
up
50
22
50
ST22L2090E
ST22L2090E (DISCONTINUED)
L2
2
90°
-
external
50
22
50
ST22L2090I
ST22L2090I (DISCONTINUED)
L2
2
90°
-
internal
50
22
50
ST22L2120U
ST22L2120U (DISCONTINUED)
L2
2
120°
-
up
50
22
50
ST22L2135U
ST22L2135U (DISCONTINUED)
L2
2
135°
-
up
50
22
50
