ST30L2
PROTRUSS

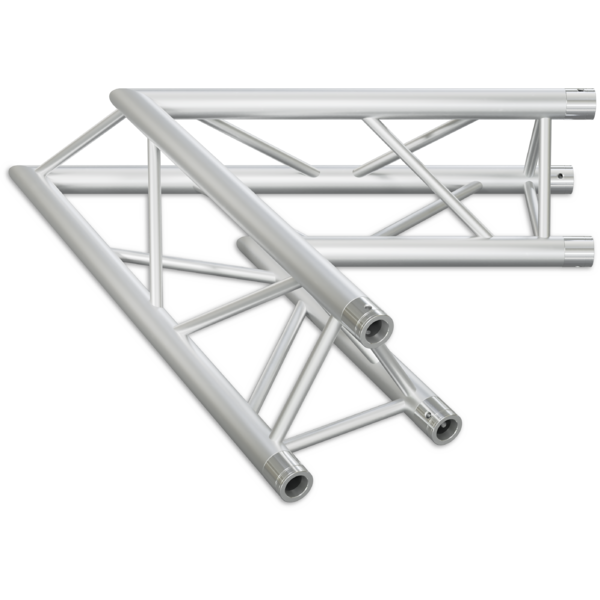

ST30L2

2-way L corner for ST30 truss series.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6.
  • Diagonal: extruded tubes, Ø 20x2 mm 6082 T6.
  • Plate: conical Quicklock connectors.
  • kit Fast Connection FCQ5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Type
Way (nr)
Angle
Orient.
Vertex
W (cm)
H (cm)
D (cm)
ST30L2045U
ST30L2045U
L2
2
45°
-
up
50
29
50
ST30L2045UB
ST30L2045UB (DISCONTINUED)
L2
2
45°
-
up
50
29
50
ST30L2060U
ST30L2060U
L2
2
60°
-
up
50
29
50
ST30L2060UB
ST30L2060UB (DISCONTINUED)
L2
2
60°
-
up
50
29
50
ST30L2090U
ST30L2090U
L2
2
90°
-
up
50
29
50
ST30L2090UB
ST30L2090UB (DISCONTINUED)
L2
2
90°
-
up
50
29
50
ST30L2090E
ST30L2090E
L2
2
90°
-
external
50
29
50
ST30L2090EB
ST30L2090EB (DISCONTINUED)
L2
2
90°
-
external
50
29
50
ST30L2090I
ST30L2090I
L2
2
90°
-
internal
50
29
50
ST30L2090IB
ST30L2090IB (DISCONTINUED)
L2
2
90°
-
internal
50
29
50
ST30L2120U
ST30L2120U
L2
2
120°
-
up
50
29
50
ST30L2120UB
ST30L2120UB (DISCONTINUED)
L2
2
120°
-
up
50
29
50
ST30L2135U
ST30L2135U
L2
2
135°
-
up
50
29
50
ST30L2135UB
ST30L2135UB (DISCONTINUED)
L2
2
135°
-
up
50
29
50

Accessories & Related Products

FCT5
FCT5
(Included)
Quick connection, 3 spigots, 6 pins, 6 safety spring, ST30/40

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DST30L2_2D.zip672KB
3DST30L2_3D.zip3MB
Technical drawingST30L2_TECHNICAL DRAWINGS.zip151KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
