ST40T4
PROTRUSS

ST40T4

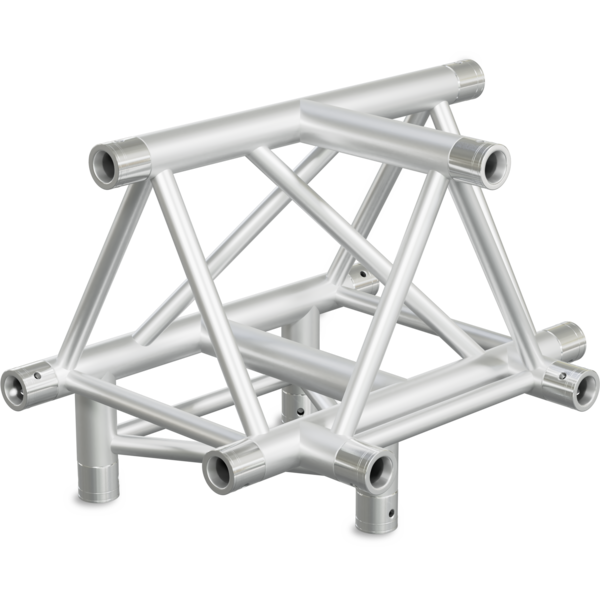

4-way T joint for ST40 truss series.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6
  • Diagonal: extruded tubes, Ø 25x3 mm 6082 T6
  • 2 kit Fast Connection FCQ5 included

PHOTO GALLERY

Technical specifications

Versions

Code
Type
Way (nr)
Angle
Orient.
Vertex
W (cm)
H (cm)
D (cm)
ST40T4U
ST40T4U
T4
4
90°
-
up
50
50
50
ST40T4UB
ST40T4UB (DISCONTINUED)
T4
4
90°
-
up
50
50
50
ST40T4D
ST40T4D
T4
4
90°
-
down
50
50
50
ST40T4DB
ST40T4DB (DISCONTINUED)
T4
4
90°
-
down
50
50
50

Accessories & Related Products

FCT5
FCT5
(Included)
Quick connection, 3 spigots, 6 pins, 6 safety spring, ST30/40

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DST40T4_3D.zip3MB
2DST40T4_2D.zip653KB
Technical drawingST40T4_TECHNICAL DRAWINGS.zip104KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
