SU30
ORDER CODE: SU30
Share me

Immagine Principale
  • SU30
  • SU30
    • Code Tube (mm) W (mm) H (mm) D (mm) Weight (kg) Volume (m³) Color Avail.
    SU30050 50x2 500 50 50 0,70 0,001 AL
    SU30050B 50x2 500 50 50 0,70 0,001 BK
    SU30100 50x2 1000 50 50 1,10 0,002 AL
    SU30100B 50x2 1000 50 50 1,10 0,002 BK
    SU30150 50x2 1500 50 50 1,50 0,003 AL
    SU30150B 50x2 1500 50 50 1,50 0,003 BK
    SU30200 50x2 2000 50 50 1,90 0,004 AL
    SU30200B 50x2 2000 50 50 1,90 0,004 BK
    SU30250 50x2 2500 50 50 2,30 0,005 AL
    SU30250B 50x2 2500 50 50 2,30 0,005 BK
    SU30300 50x2 3000 50 50 2,70 0,006 AL
    SU30300B 50x2 3000 50 50 2,70 0,006 BK

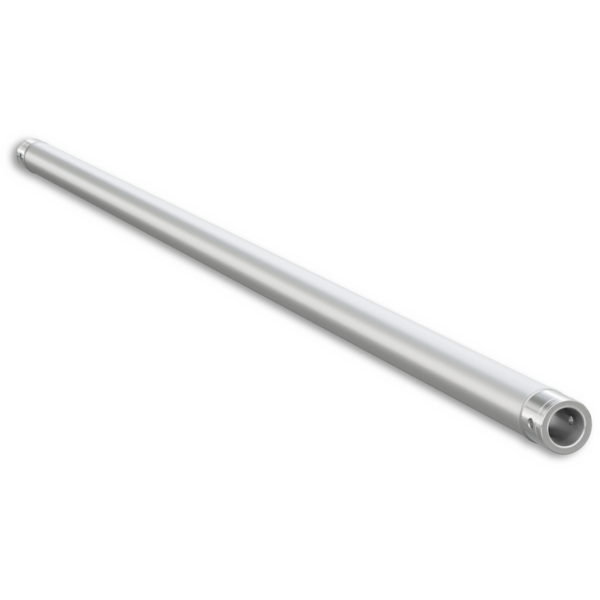

    Aluminium extruded tubes, Ø 50x2 mm, EN AW 6082A T6.

    Features:
    Plate: conical quick-lock connectors.
    Fast connection kit FCU5 included.

    ITEMS REF.
    Accessory Code
    Description
    SU30 (include)
    SU30L2 (include)
    SU30T3 (include)
    LF5T (optional)
    LF5X (optional)
    LF5P (optional)
    {CODEs}FCU5
    Quick connection, 1 spigot, 2 pins, 2 safety spring, SU30
    SU30 (optional)
    {CODEs}SU30L2
    2-way corner for SU30, extrude tube 50x2mm, FCU5 included
    SU30 (optional)
    {CODEs}SU30L2060
    2-way corner for SU30, extrude tube 50x2mm, FCU5 included, 60°
    SU30 (optional)
    {CODEs}SU30L2090
    2-way corner for SU30, extrude tube 50x2mm, FCU5 included, 90°
    SU30 (optional)
    {CODEs}SU30L2120
    2-way corner for SU30, extrude tube 50x2mm, FCU5 included, 120°
    SU30 (optional)
    {CODEs}SU30L2135
    2-way corner for SU30, extrude tube 50x2mm, FCU5 included, 135°
    SU30 (optional)
    {CODEs}SU30T3
    3-way joint for SU30 Series, extrude tube 50x2mm, 2x FCU5 included

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Su30300_CAD_2D.dwgDownload
    Su30300_CAD_3D.dwgDownload
    Su30250_CAD_2D.dwgDownload
    Su30250_CAD_3D.dwgDownload
    Su30200_CAD_2D.dwgDownload
    Su30100_CAD_2D.dwgDownload
    Su30150_CAD_2D.dwgDownload
    Su30150_CAD_3D.dwgDownload
    Su30100_CAD_3D.dwgDownload
    Su30200_CAD_3D.dwgDownload
    Su30050_CAD_2D.dwgDownload
    Su30300_TECHNICAL_DRAWING.pdfDownload
    Su30250_TECHNICAL_DRAWING.pdfDownload
    Su30200_TECHNICAL_DRAWING.pdfDownload
    Su30100_TECHNICAL_DRAWING.pdfDownload
    Su30150_TECHNICAL_DRAWING.pdfDownload
    Su30050_TECHNICAL_DRAWING.pdfDownload
