SU30L2
PROTRUSS

SU30L2

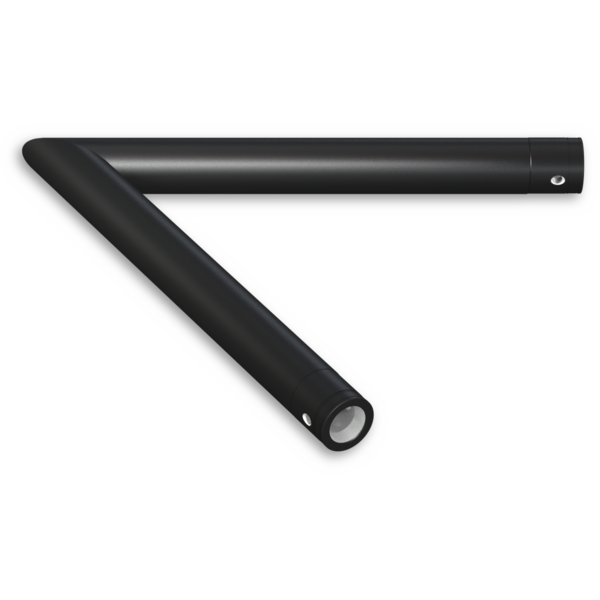

2-way L corner for SU30 series.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6.
  • Plate: conical Quicklock connectors.
  • FCU5 kit Fast Connection included.

PHOTO GALLERY

Technical specifications

Versions

Code
Type
Way (nr)
Angle
Orient.
Vertex
W (cm)
H (cm)
D (cm)
SU30L2045
SU30L2045
L2
2
45°
-
-
50
5
50
SU30L2045B
SU30L2045B
L2
2
45°
-
-
50
5
50
SU30L2060
SU30L2060
L2
2
60°
-
-
50
5
50
SU30L2060B
SU30L2060B
L2
2
60°
-
-
50
5
50
SU30L2090
SU30L2090
L2
2
90°
-
-
50
5
50
SU30L2090B
SU30L2090B
L2
2
90°
-
-
50
5
50
SU30L2120
SU30L2120
L2
2
120°
-
-
50
5
50
SU30L2120B
SU30L2120B
L2
2
120°
-
-
50
5
50
SU30L2135
SU30L2135
L2
2
135°
-
-
50
5
50
SU30L2135B
SU30L2135B
L2
2
135°
-
-
50
5
50

Accessories & Related Products

FCU5
FCU5
(Included)
Quick connection, 1 spigot, 2 pins, 2 safety spring, SU30

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DSU30L2_3D.zip3MB
2DSU30L2_2D.zip698KB
Technical drawingSU30L2_TECHNICAL DRAWINGS.zip199KB
