SWIISP
SWISSON
discontinued

SWIISP

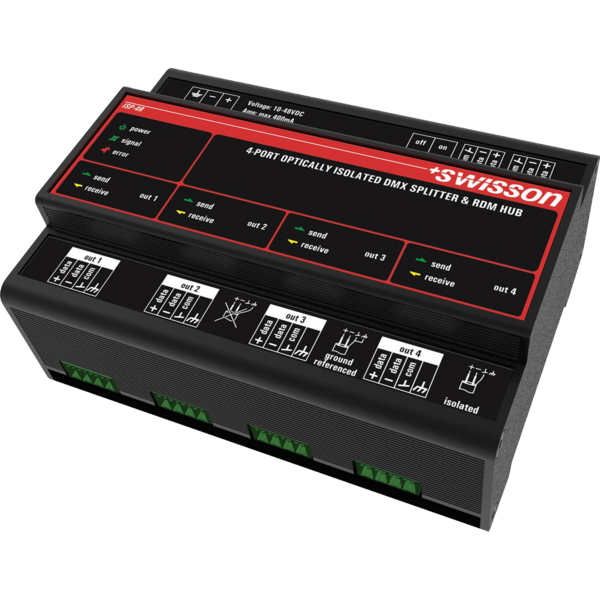

The DMX splitters of the SWIISP4 / SWIISP6 line of products boost an incoming DMX signal and provide it on four (ISP-4) or six (ISP-6) output ports. This allows for safely going beyond the 32 devices limit of the DMX standard, as well as for building star topologies.
The ISP splitters also act as repeaters, and thus they may be used for transporting a DMX signal across larger distances.
DMX signals often get disturbed by the environment or even by the devices connected to the signal line. An ISP splitter may completely clear the disturbances if it is connected at a location where the signal is still “readable”.
Providing individually optically isolated outputs, as well as an optically isolated input, the ISP splitters may prevent harmful voltages applied to a given port from affecting the other ports and damaging the connected equipment.
The ISP splitters work within DMX/RDM envitonments, as well as in pure DMX environments. The devices are DIN rail mountable and powered by an external power supply unit.

Main features:

  • DMX splitter/booster
  • DMX repeater
  • Input optically isolated
  • Each output individually optically isolated
  • RDM support
  • Rugged metal housing
  • Built-in termination
  • Ambient temperature: −30 to +55°C
  • Power consumption: 4 W (SWIISP4), 6 W (SWIISP6)
  • DC power input: 10 - 48 V DC
  • DMX / RDM: ANSI E1.11 / ANSI E1.20
  • Dimensions (L x H x D): 124.55x56x90 mm (SWIISP4), 172x56x90 mm (SWIISP6)
  • Weight: 0.4 kg (SWIISP4), 0.56 kg (SWIISP6)

PHOTO GALLERY

Technical specifications

Versions

Code
SWIISP4RDCTERM
SWIISP4RDCTERM (DISCONTINUED)
SWIISP4RDCRJ45A
SWIISP4RDCRJ45A (DISCONTINUED)
SWIISP4RDCRJ45B
SWIISP4RDCRJ45B (DISCONTINUED)
SWIISP6RDCTERM
SWIISP6RDCTERM (DISCONTINUED)
SWIISP6RDCRJ45A
SWIISP6RDCRJ45A (DISCONTINUED)
SWIISP6RDCRJ45B
SWIISP6RDCRJ45B (DISCONTINUED)

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualSwiisp_USER_MANUAL.pdf2MB
    User manualSwiisp_USER_MANUAL.pdf101KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
