| Code | Model | In (1) | Thru (1) | Out (1) | In (2) | Thru (2) | Out (2) | Conn. | Avail. | ||||
|
SWIXSRIB5W | box | - | - | - | - | - | - | XLR | ||||
|
SWIXSR3B | box | 3p | 3p | 5x 3p | - | - | - | XLR | ||||
|
SWIXSR5B | box | 5p | 5p | 5x 5p | - | - | - | XLR | ||||
|
SWIXSR5B5 | box | 5p | 5p | 5x 3p | - | - | - | XLR | ||||
|
SWIXSR8B | box | RJ45 | RJ45 | 5x RJ45 | - | - | - | RJ45 | ||||
|
SWIXSR3R | single rack | 3p | 3p | 5x 3p | - | - | - | XLR | ||||
|
SWIXSR5R | single rack | 5p | 5p | 5x 5p | - | - | - | XLR | ||||
|
SWIXSR5R5 | single rack | 5p | 5p | 5x 3p | - | - | - | XLR | ||||
|
SWIXSRTR5 | single rack | T | T | 5x T | - | - | - | Terminal | ||||
|
SWIXSR8R | single rack | RJ45 | RJ45 | 5x RJ45 | - | - | - | RJ45 | ||||
|
SWIXSR3R3R | double rack | 3p | 3p | 5x 3p | 3p | 3p | 5x 3p | XLR | ||||
|
SWIXSR5R5R | double rack | 5p | 5p | 5x 5p | 5p | 5p | 5x 5p | XLR | ||||
|
SWIXSR5R55R5 | double rack | 5p | 5p | 5x 3p | 5p | 5p | 5x 3p | XLR | ||||
|
SWIXSR5R25R2 | double rack | 5p | 5p | 3x 5p - 2x 3p | 5p | 5p | 3x 5p - 2x 3p | XLR | ||||
|
SWIXSR5R5R5 | double rack | 5p | 5p | 5x 5p | 5p | 5p | 5x 3p | XLR | ||||
|
SWIXSR5R3R | double rack | 5p | 5p | 5x 5p | 3p | 3p | 5x 3p | XLR | ||||
|
SWIXSRTR5TR5 | double rack | T | T | 5x T | T | T | 5x T | Terminal | ||||
|
SWIXSR8R8R | double rack | 8 | RJ45 | 5x RJ45 | RJ45 | RJ45 | 5x RJ45 | RJ45 |

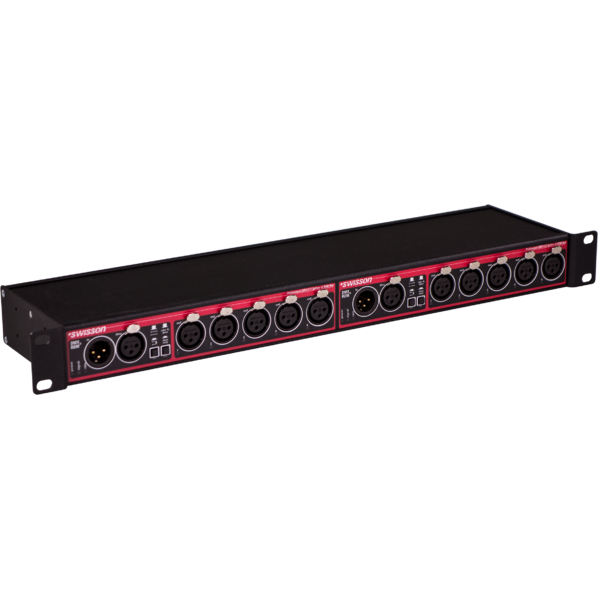

The Swisson XSR series are reliable DMX and RDM splitters and boosters that process DMX and RDM signals with a high level of reliability for professional applications. The XSR has a specially designed power supply which ensures safe operation even under harsh mains conditions. All ports are individually optically isolated and well protected against transient overvoltages. In the "DMX-only" mode all non-DMX data is filtered out and a clean signal without RDM or other protocols is generated. The XSR splitters are "discoverable", and are visible on RDM controllers. This gives the user a better overview of the installation and helps with troubleshooting.
Features:
High level of reliability
Boosts DMX & RMD
Regenerates DMX & RDM
Reduces reflection problems
Distributes DMX & RDM
Optical isolation on each individual port
Connection types: 5-pin and 3-pin XLR models,
RJ-45 and pluggable screw terminals models
Housing types: installation, box, rack and double rack models
5 DMX outputs per universe (10 outputs on the double-track)
Built-in line termination
