UNIURM3P260I1X1UB
UNILUMIN

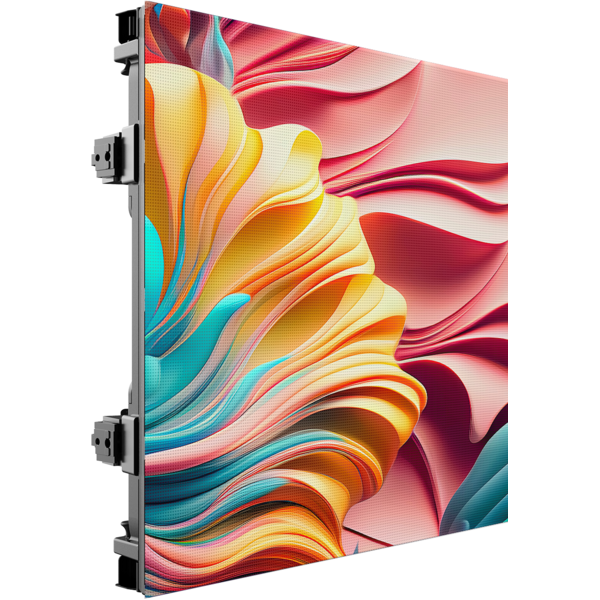

URMIII P2.6 U-Shield indoor 50x50 cm full black new

ORDER CODE: UNIURM3P260I1X1UB

Indoor LED wall module, U-Shield 2424 BF, p.2,6mm, 50x50cm, 192x192pix, 1000nit, 7,3kg

The URMIII P2.6 U-Shield is an indoor rental LED display designed for live events, touring productions, broadcast setups, and corporate environments where top-level image quality, practicality, and quick installation are key.

With a 2.6 mm pixel pitch and a density of 147.456 pixels/m², it delivers sharp, detailed images, perfectly suited for close viewing. Featuring 1,000 nits brightness and a 4,500:1 contrast ratio, it ensures vivid, realistic content. The high 7,680 Hz refresh rate guarantees smooth, flicker-free playback, making it ideal for broadcast applications.

Built from die-cast aluminum, the cabinet weighs only 7.3 kg and is optimized for fast, secure setups thanks to the click-lock system, allowing one-person installation. Its compact size (500×500×71 mm) integrates automatic corner protection and supports both concave and convex curved configurations up to ±10°, enabling creative display designs.

With both front and rear maintenance access, low power consumption, and a design focused on durability and reliability, the URMIII P2.6 U-Shield ensures consistent performance and long-lasting operation even in intensive rental use.

Main features:

  • High definition: 2.6 mm pixel pitch for sharp and detailed visuals.
  • Brilliant brightness: 1,000 nits for vivid and clear images.
  • Absolute smoothness: 7,680 Hz refresh rate for flawless, broadcast-ready playback.
  • Contrast and consistency: 4,500:1 ratio with 160°/160° viewing angles.
  • Creative freedom: supports concave and convex curves up to ±10°.
  • Lightweight and robust: die-cast aluminum cabinet weighing just 7.3 kg.
  • Quick installation: click-lock system for fast, single-operator setup.
  • Integrated protection: automatic shields safeguard cabinet corners.
  • Simplified maintenance: full front and rear service access.
  • Built to last: low power consumption and durable design for long-term use.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICND 1065S
  • LED source: U-Shield 2424 (1212 lamp, 2424 body, mask-free design)
  • Pixel pitch: 2.6 mm
  • Panel resolution: 192x192pixels
  • Module resolution: 96x96pixels
  • Luminous flux: 1000nit
  • Contrast: 4.500:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/24 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 147.456LED/sqm
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 100/240 V 50/60 Hz
  • Max power consumption (panel): 120W
  • Avg power consumption (panel): 40W
  • Max power consumption (sqm): 480W
  • Avg power consumption (sqm): 160W
  • Standby power consumption (pannello): 12.1W
  • Max rated current/panel:: 0.55A@220V
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card: A10S PRO
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration), Dynamic Booster and NCP file support
  • Control protocol: Novastar
  • Signal input: Seetronic Standard RJ45 EtherCon
  • Signal output: Seetronic Standard RJ45 EtherCon
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500x71mm / 19.69''x2.8''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7,3kg / 16.09lbs
  • Weight per square meter: 29,2kg / 64.37lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
INSTALLATION
  • Curve configurations: convex and concave -10° / +10°

Versions
