WSWBF1G5
WIRELESS SOLUTION
discontinued

WSWBF1G5

ORDER CODE: WSWBF1G5

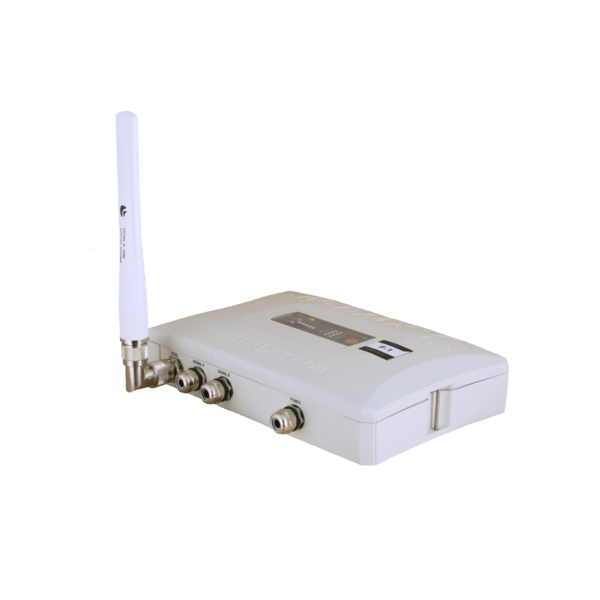

The W-DMX™ WhiteBox F-1 G5 transceiver is the perfect single universe wireless DMX solution for architectural installations or any outdoor work. The unit supports both transmit and receive modes of DMX and RDM signals, and uses 2.4 GHz, 5.2 GHz and 5.8 GHz frequency bands, giving access to more channels, and alternatives to crowded wireless environments. It also offers an optional Ethernet protocol support, be it Art-Net, sACN or ETC Net, on both incoming and outgoing streams. Built into a tough, IP66 rated casing, fully customisable in any RAL colour, the WhiteBox F-1 G5 is built to withstand the elements.

* Triple band function with 5GHz may not be available in all countries, please contact your local dealer or Wireless Solution for more information.

Caratteristiche principali:

  • Single universe DMX/RDM transmitter & receiver
  • W-DMX™ G5 protocol – backward compatible with G3 and G4S
  • Double-up mode in G5: two universes in one box
  • Tough IP66 case, customisable in any RAL colour
  • Invisi-wire high-fidelity technology – output matches input
  • Datasafe technology – wireless fidelity and error correction
  • Less than 5 ms latency
  • Complete DMX512 support
  • Full RDM support
  • One-button-to-go technology for ease of use
  • Adaptive frequency hopping radio
  • 2.4 GHz – license-free worldwide
  • 5.2 GHz – new, exclusive to W-DMX™ *
  • 5.8 GHz – provides access to ‘virgin’ spectrum *
  • Expandable with Ethernet lighting protocol support
  • 90v – 250v AC input or 12V DC input
  • Interchangeable antennas – easily expand your range
  • Ships standard with 3dBi indoor antenna
  • Compatible with all W-DMX™ OEM products

PHOTO GALLERY

Specifiche tecniche

Varianti

Accessori e prodotti correlati

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualWswbf1g5_USER_MANUAL.pdf4MB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
