WU280
ORDER CODE: WU280
Share me

Immagine Principale
  • WU280
  • WU280
  • WU280

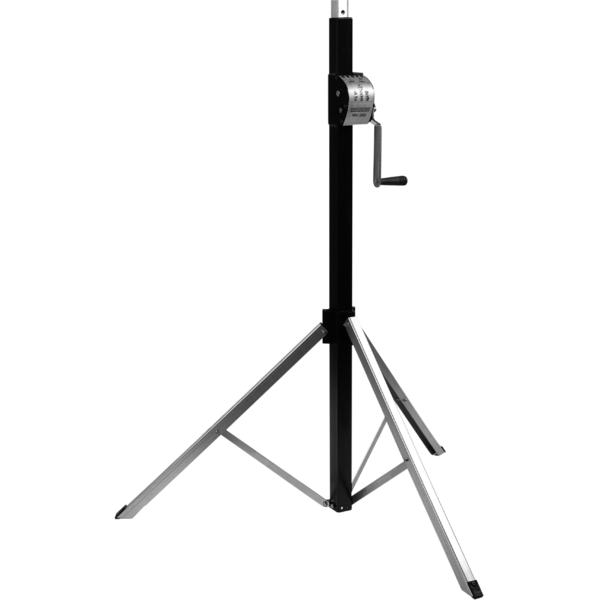

  • Wind-up lifter with 2 telescopic sections.

    Features:
    Made from high-strength aluminium
    Lightweight and compact
    Absence of breakable steel cables and cords
    Automatic safety system with no need for security PINs
    Absence of knobs or other devices to be tightened to improve stability
    Simple and fast installation - opening tripod legs
    Adjust to any height (cm by cm) in the range, without tightening stages

    TECHNICAL INFORMATION
    • Max load:
      80
      kg
    • Max height:
      2,8
      m
    • Folded dimensions:
      13 x 13 x 150
      cm
    • Base area (open):
      Ø 120
      cm
    • Legs:
      tripod
    • Colour:
      Black finish
    • Material:
      Aluminium and steel
    • Accessories:
      28-35 mm M adapter optional
    • Lifter weight:
      15
      kg
    ITEMS REF.
    Accessory Code
    Description
    WU280 (optional)
    {CODEs}LAAD35
    End of life
    Adaptor, compatible with WU series, diameter 28-35mm M/M
    WU280 (optional)
    {CODEs}LIFTBAG1
    End of life
    Carrying lifter bag, compatible with WU280/EXP400
    WU280 (optional)
    EXP450 (optional)
    EXP520TPLUS (optional)
    WU380 (optional)
    {CODEs}LAT250
    End of life
    Adjustable Truss support 120-250mm, diameter 30mm M
    WU280 (optional)
    EXP520TPLUS (optional)
    EXP450 (optional)
    WU380 (optional)
    {CODEs}LAT400
    End of life
    Adjustable truss support 220-400mm, diameter 35mm F
    WU280 (optional)
    WU380 (optional)
    EXP450 (optional)
    EXP520TPLUS (optional)
    {CODEs}LATBR150
    End of life
    Support round T-Bar, length 150cm, diameter 35mm F
    WU280 (optional)
    WU380 (optional)
    EXP450 (optional)
    EXP520TPLUS (optional)
    Support square T-Bar with 6/12 light positions, diameter 35mm F
    WU280 (optional)
    WU380 (optional)
    EXP450 (optional)
    EXP520TPLUS (optional)
    {CODEs}LAPLATE
    End of life
    Support round plate with screw, diameter 35mm F
    WU280 (optional)
    EXP520TPLUS (optional)
    WU380 (optional)
    {CODEs}LAADFF
    End of life
    Adaptor diameter 35mm F/F
