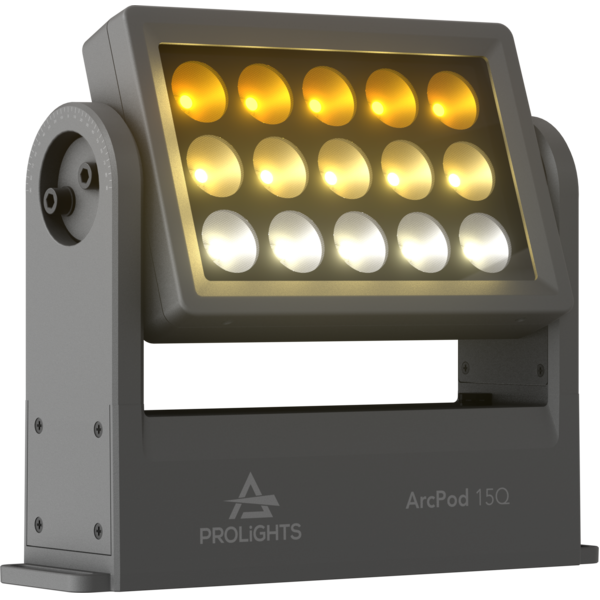

ArcPod 15Q

15x10W RGBW/FC outdoor IP66 LED wash light for exterior installations

ArcPod 15Q is a compact exterior wash fixture, featuring high-intensity light despite its small size. The unit is equipped with 15x10W RGBW / FC LEDs, delivering an exceptional output over than 5'900 lumens and a wide gamut of colours and whites. The slim sizing, as well as the wide range of available optics, makes the ArcPod 15Q an incredibly flexible architectural fixture to complement the bigger versions in large outdoor installs as accent light or for smaller-sized projects.

5 YEARS WARRANTY

Main features:

  • Tilt adjustment and multiple lens options for fine focusing
  • 15x10W RGBW / FC LEDs
  • Compact form factor and fan-free design
See variants

PHOTO GALLERY

ArcPod 15Q
ArcPod 15Q
ArcPod 15Q
ArcPod 15Q
ArcPod 15Q
ArcPod 15Q
ArcPod 15Q

Technical specifications

LIGHT SOURCE
  • Source: 15x10W RGBW / FC LEDs
  • Luminous flux: (10°) 4'552 lm; (15°) 5'678 lm; (25°) 5'732 lm; (45°) 5'390 @full
  • Lux: (10°) 3'116 lx; (15°) 2'790 lx; (25°) 1'203 lx; (45°) 287lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 25°
  • Field angle: 38°
  • Lens diameter: 36mm / 1.42''
  • Additional optics: 10° - 15° - 45° (optional) - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
BODY
  • Tilt angle: 0 - 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 155W
  • Output (at 230V): 11 units on a single power line
  • Power factor: >0,97
  • Inrush current: 110VAC/7.55A, 230VAC/24.8A
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 307x259x83mm / 12.09''x10.2''x3.27''
  • Weight: 6,3kg / 13.89lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
ARCPOD15Q
ARCPOD15Q

Accessories & Related Products

<b>CRMXBox</b> IP
CRMXBox IP
(optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
A15QFILTER20
A15QFILTER20
(optional)
20° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER30
A15QFILTER30
(optional)
30° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER40
A15QFILTER40
(optional)
40° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER60
A15QFILTER60
(optional)
60° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER80
A15QFILTER80
(optional)
80° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER1090
A15QFILTER1090
(optional)
10°x90° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER1060
A15QFILTER1060
(optional)
10°x60° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER3060
A15QFILTER3060
(optional)
30°x60° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
S27QLENS10
S27QLENS10
(optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(optional)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(included)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
A15QSNOOT
A15QSNOOT
(optional)
Snoot for ARCPOD15Q
A15QBD
A15QBD
(optional)
Black barn door with 4 directional flaps to adjust the light beam, ARCPOD15Q
<b>DataMaster</b>
DataMaster
(optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Arcpod15q_A4_DATASHEET_(EN).pdf 337KB
Letter datasheet Arcpod15q_A4_DATASHEET_(IT).pdf 304KB
Letter datasheet Arcpod15q_LETTER_DATASHEET_(EN).pdf 338KB
Tender Specification Arcpod15q_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual Arcpod15q_USER_MANUAL_EN.pdf 5MB
User manual GENERAL_SAFETY_INFORMATION.pdf 12MB

DMX chart & personalities

File name File size Download
DMX chart Arcpod15q_DMX_CHARTS.pdf 78KB

Photometrics

CAD symbols & drawings

File name File size Download
3D SKP Arcpod15q_3D.skp 567KB
3D RFA Arcpod15q_3D.rfa 460KB
2D ARCPOD15Q_2D.zip 2MB
3D Arcpod15q_CAD_3D.dwg 527KB
2D cad symbols Arcpod15q_CAD_2DSYMBOLS.dwg 178KB
Technical drawing ARCPOD15Q_TECHNICAL DRAWINGS.zip 350KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 262KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB

Tech docs

File name File size Download

Software

File name File size Download
Software Prolights Dialux Plug-In 192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 03/08/2021 New functions:
  • Added dimmer curves on RDM.
Improvements:
  • Improved dimming functionality.
  • Improved color management.
