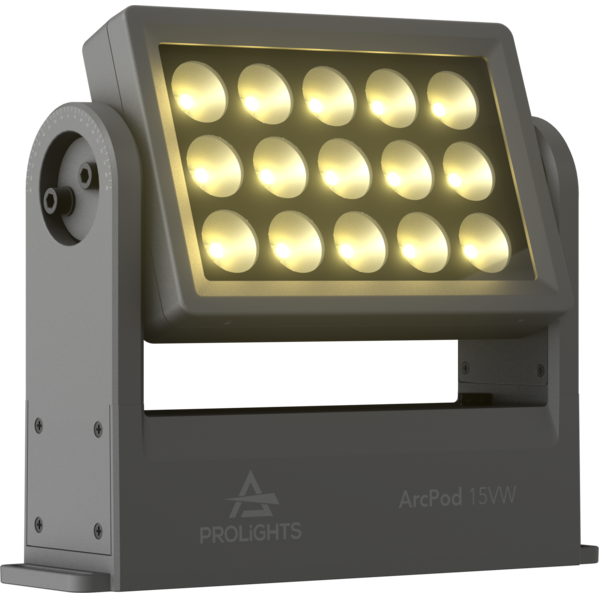

ArcPod 15VW

15x10W VW outdoor IP66 LED wash light for exterior installations

ArcPod 15VW is a compact exterior wash fixture, featuring high-intensity light despite its small size. The unit is equipped with 15x10W VW LEDs, delivering an exceptional output over than 15'000 lumens and a high quality white reproduction across CCT. The slim sizing, as well as the wide range of available optics, makes the ArcPod 15VW an incredibly flexible architectural fixture to complement the bigger versions in large outdoor installs as accent light or for smaller-sized projects.

5 YEARS WARRANTY

Main features:

  • Tilt adjustment and multiple lens options for fine focusing
  • 15x10W VW LEDs
  • Compact form factor and fan-free design
See variants

PHOTO GALLERY

ArcPod 15VW
ArcPod 15VW
ArcPod 15VW
ArcPod 15VW

Technical specifications

LIGHT SOURCE
  • Source: 15x10W Warm White + Cold White LEDs
  • Luminous flux: (15°) 8'884 lm; (15°+20°) 7'811 lm; (15°+30°) 7'846 lm; (15°+40°) 7'935 lm; (15°+60°) 7'902 lm; (15°+80°) 7'937 lm; (15°+10°x60°) 15'410 lm; (15°+30°x60°) 8667 @full
  • Lux: (15°) 7'769 lx; (15°+20°) 1'360 lx; (15°+30°) 822 lx: (15°+40°) 409 lx; (15°+60°) 292 lx; (15°+80°) 205 lx; (15°+10°x60°) 1'126 lx; (15°+30°x60°) 517lx @5 m full
  • CRI: 81,3 @ WW; 83.9 @ CW; 86.5 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Lens diameter: 36mm / 1.42''
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
BODY
  • Tilt angle: 0 - 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 150W
  • Output (at 230V): 11 units on a single power line
  • Power factor: >0,97
  • Inrush current: 110VAC/7.55A, 230VAC/24.8A
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 307x259x83mm / 12.09''x10.2''x3.27''
  • Weight: 6,3kg / 13.89lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
ARCPOD15VW
ARCPOD15VW

Accessories & Related Products

<b>CRMXBox</b> IP
CRMXBox IP
(optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
A15QFILTER20
A15QFILTER20
(optional)
20° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER30
A15QFILTER30
(optional)
30° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER40
A15QFILTER40
(optional)
40° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER60
A15QFILTER60
(optional)
60° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER80
A15QFILTER80
(optional)
80° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER1060
A15QFILTER1060
(optional)
10°x60° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER3060
A15QFILTER3060
(optional)
30°x60° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
S27QLENS10
S27QLENS10
(optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
A15QSNOOT
A15QSNOOT
(optional)
Snoot for ARCPOD15Q
A15QBD
A15QBD
(optional)
Black barn door with 4 directional flaps to adjust the light beam, ARCPOD15Q
<b>DataMaster</b>
DataMaster
(optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Arcpod15vw_A4_DATASHEET_(EN).pdf 365KB
Letter datasheet Arcpod15vw_LETTER_DATASHEET_(EN).pdf 365KB
Tender Specification Arcpod15vw_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual Arcpod15vw_USER_MANUAL_EN.pdf 6MB
User manual GENERAL_SAFETY_INFORMATION.pdf 12MB

DMX chart & personalities

File name File size Download
DMX chart Arcpod15vw_DMX_CHARTS.pdf 81KB
ARCPOD15VW Firmware rev. 1.0
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKP Arcpod15vw_3D.skp 565KB
3D Arcpod15vw_CAD_3D.dwg 550KB
2D cad symbols Arcpod15vw_CAD_2DSYMBOLS.dwg 69KB
2D ARCPOD15VW_2D.zip 2MB
Technical drawing ARCPOD15VW_TECHNICAL DRAWINGS.zip 350KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 508KB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 02/09/2022 First stable release.
