ARCSPOTDOTFC
PROLIGHTS

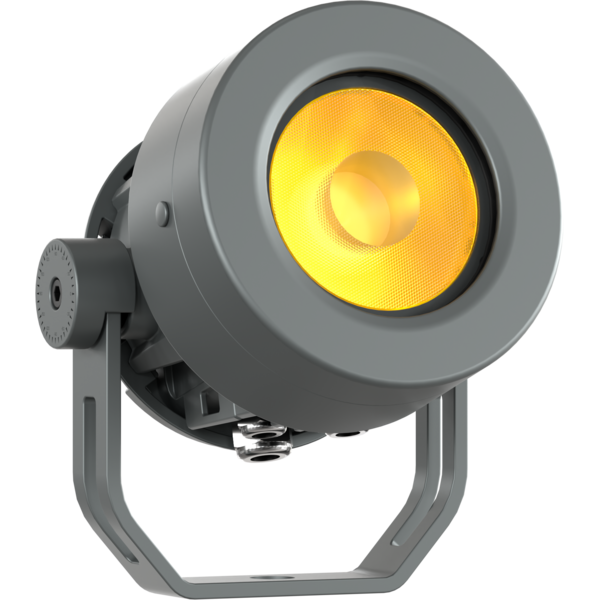

ArcSpot DOTFC

IP66 Spot featuring 590 lumen with 1x20W RGB+WarmWhite source, 5° native

The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

Among the series, the ArcSpot DotFC stands out as an extra small round spot. It is equipped with a 20W RGB+WarmWhite LED source, delivering a focused ultra-narrow 5° beam angle with a fixture output of 590 lumens.

These fixtures are engineered with a dual chamber design, with the physical  separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is DMX compatible, offering the convenience of remote management via RDM.

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.

SPEKTRA5 YEARS WARRANTY

Main features:

  • Exterior Spot featuring 590 lumen with 1x20W RGB+WarmWhite LED source
  • IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
  • Comprehensive selection of optics, holographic filters and light modifiers

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 1 x 20W RGB + Warm White LED
  • CCT: 2.800K - 10.000K
  • Luminous flux: 592 @Full
  • Lux: 699lx @5 m full
  • Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 5°
  • Field angle: 14°
  • Lens diameter: 60mm / 2.36''
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • Colour wheel: gel filters included
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: optional accessories: half snoot
  • Body: sturdy die-cast aluminium body, scratch resistant paint C5M (as standard)
  • Body colour: RAL 7012
  • Other:
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 6 / 9 / 12channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 24W
  • Standby power: 0,5 W
  • Power factor: > 0,9
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 07
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 53 cm moulded IP signal IN/OUT connectors
  • Power connection: 53 cm moulded IP power IN connector
  • Dimensions (WxHxD): 132x156x112mm / 5.2''x6.14''x4.41''
  • Weight: 1,1kg / 2.43lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ARCSPOTDOTFCGY
ARCSPOTDOTFCGY
RAL 7012

Accessories & Related Products

<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
PLYPC3010E73D
PLYPC3010E73D
(Optional)
Y splitter power cable 3x1.0 mm2, IP67 connectors (1 IN + 2 OUT), 80 cm lenght
THR209S6D
THR209S6D
(Optional)
4-Way junction box type H, 3 poles, IP66/IP68

DOWNLOAD

DMX chart & personalities

File name File size Download
DMX chartArcspotdotfc_DMX_CHARTS.pdf300KB
ARCSPOTDOTFC Firmware rev. 1.1.01.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
arcspot dotfc.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 12/09/2024 Improvement:
  • Improved DMX address stability management.
Rev. 1.0
