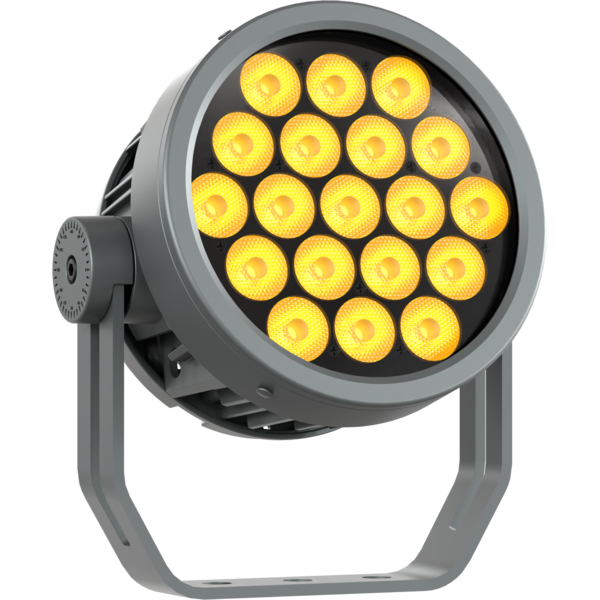

ArcSpot MFC

IP66 Spot featuring 3900 lumen with 19x 4W RGB+WarmWhite source, 10° native

The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

Among the series, the ArcSpot MFC stands out as a medium sized round spot. It is equipped with 19x 4W RGB+WarmWhite LED source, delivering 10° beam angle with a fixture output of 3900 lumens.

These fixtures are engineered with a dual chamber design, with the physical  separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is DMX compatible, offering the convenience of remote management via RDM.

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.

SPEKTRA5 YEARS WARRANTY

Main features:

  • Exterior Spot featuring 3900 lumen with 19x 4W RGB+WarmWhite LED source
  • IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
  • Comprehensive selection of optics, holographic filters and light modifiers
See variants

PHOTO GALLERY

ArcSpot MFC
ArcSpot MFC
ArcSpot MFC
ArcSpot MFC

Technical specifications

LIGHT SOURCE
  • Source: 19 x 4W RGB + Warm White LED
  • CCT: 2.800K - 10.000K
  • Luminous flux: 3'911 @Full
  • Lux: 2'708lx @5 m full
  • Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 10°
  • Field angle: 19°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • Colour wheel: gel filters included
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: optional accessories: half snoot and louvre
  • Body: sturdy die-cast aluminium body, scratch resistant paint (C5M as standard)
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 6 / 9 / 12channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 80W
  • Standby power: 0,5 W
  • Power factor: > 0,9
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 53 cm moulded IP signal IN/OUT connectors
  • Power connection: 53 cm moulded IP power IN connector
  • Dimensions (WxHxD): 210x239x123mm / 8.27''x9.41''x4.84''
  • Weight: 2,7kg / 5.95lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ARCSPOTMFCGY
ARCSPOTMFCGY
RAL 7012

Accessories & Related Products

<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
PLYPC3010E73D
PLYPC3010E73D
(Optional)
Y splitter power cable 3x1.0 mm2, IP67 connectors (1 IN + 2 OUT), 80 cm lenght
THR209S6D
THR209S6D
(Optional)
4-Way junction box type H, 3 poles, IP66/IP68

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcspotmfcgy_LETTER_DATASHEET_(EN).pdf468KB
Letter datasheetArcspotmfc_A4_DATASHEET_(EN).pdf467KB
Tender SpecificationArcspotmfc_TENDER_SPECIFICATION.pdf321KB

User manual

DMX chart & personalities

File name File size Download
DMX chartArcspotmfc_DMX_CHARTS.pdf300KB
ARCSPOTMFC Firmware rev. 1.1.01.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPArcspotmfc_3D.skp660KB
2DARCSPOTMFC_2D.zip2MB
3DArcspotmfc_CAD_3D.dwg258KB
2D cad symbolsARCSPOTMFC_2DSYMBOLS.zip68KB
Technical drawingARCSPOTMFC_TECHNICAL DRAWINGS.zip354KB
VectorWorksARCSPOTMFC_SYMBOLS.vwx1MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 12/09/2024 Improvement:
  • Improved DMX address stability management.
 Rev. 1.0
