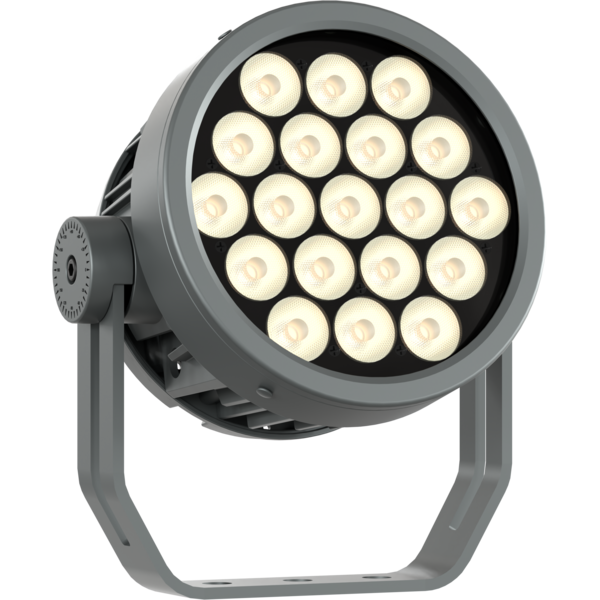

ArcSpot MVW

IP66 Spot featuring 4600 lumen with 19x 4W Variable White source, 10° native

The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

Among the series, the ArcSpot MVW stands out as medium sized round spot. It is equipped with 19x 4W Variable White LED source, delivering 10° beam angle with a fixture output of 4600 lumens.

These fixtures are engineered with a dual chamber design, with the physical  separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is DMX compatible, offering the convenience of remote management via RDM.

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.

5 YEARS WARRANTY

Main features:

  • Exterior Spot featuring 4600 lumen with 19x 4W Variable White LED source
  • IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
  • Comprehensive selection of optics, holographic filters and light modifiers
See variants

PHOTO GALLERY

ArcSpot MVW
ArcSpot MVW
ArcSpot MVW
ArcSpot MVW

Technical specifications

LIGHT SOURCE
  • Source: 19 x 4W Variable White LED
  • Source CCT: K dedicated variable CCT channel (2700-6500 K)
  • Luminous flux: 4'677 @Full
  • Lux: 4'131lx @5 m full
  • CRI: 97 @WW; 94 @CW; 97 @full
  • R9: 96 @WW; 80 @CW; 86 @full
  • TLCI: 95 @WW; 99 @CW; 99 @full
  • TM30 Rf: >92 @WW; >91 @CW; >94 @full
  • TM30 Rg: <98 @WW; <98 @CW; <101 @full
  • Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 10°
  • Field angle: 18°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: linear CCT control
  • Colour wheel: built-in white presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 2 / 3 / 4 / 9ch
  • RDM: for remote addressing and parameter configuration
  • Display: user interface through DATAMASTER external coder (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: 53 cm moulded IP power IN connector
  • Signal connection: 53 cm moulded IP signal IN/OUT connectors
  • Adaptors: XLR and BARE END 16A adaptors included
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 80W
  • Standby power: 0,5 W
  • Power factor: > 0,9
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: IK08 impact rating
  • Housing: Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
  • Finish: basalt grey (RAL 7012)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 210x239x123mm / 8.27''x9.41''x4.84''
  • Weight: 2,7kg / 5.95lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ARCSPOTMVWGY
ARCSPOTMVWGY
RAL 7012

Accessories & Related Products

ARCSPK
ARCSPK
(Optional)
ArcSpot Series Ground Spike, RAL7012 with C5M (Marine Grade)
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
PLYPC3010E73D
PLYPC3010E73D
(Optional)
Y splitter power cable 3x1.0 mm2, IP67 connectors (1 IN + 2 OUT), 80 cm lenght
THR390S3T
THR390S3T
(Optional)
3-Way junction connector, 'T' type, 3 Poles, IP68
THR209S6D
THR209S6D
(Optional)
4-Way junction box type H, 3 poles, IP66/IP68
<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
ASLENS10
ASLENS10
(Included)
Lens for ARCSPOT series, 10°
ASLENS15
ASLENS15
(Optional)
Lens for ARCSPOT series, 15°
ASLENS25
ASLENS25
(Optional)
Lens for ARCSPOT series, 25°
ARMFILTER20
ARMFILTER20
(Optional)
Light diffusion filter for ARCSPOTM series, 20°
ARMFILTER40
ARMFILTER40
(Optional)
Light diffusion filter for ARCSPOTM series, 40°
ARMFILTER60
ARMFILTER60
(Optional)
Light diffusion filter for ARCSPOTM series, 60°
ARMFILTER1060
ARMFILTER1060
(Optional)
Light diffusion filter for ARCSPOTM series, 10°x60°
ARMFILTER3060
ARMFILTER3060
(Optional)
Light diffusion filter for ARCSPOTM series, 30°x60°
ARMHSNOOTGY
ARMHSNOOTGY
(Optional)
Half snoot for ARCSPOTM series, RAL 7012
ARMHLOUVREGY
ARMHLOUVREGY
(Optional)
Honeycomb louvre for ARCSPOTM series, RAL 7012
ASPOTOUTERCASEM
ASPOTOUTERCASEM
(Optional)
Outercase box for ground installation for ARCSPOTM series
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcspotmvwgy_LETTER_DATASHEET_(EN).pdf(13/06/2024)428KB
Letter datasheetArcspotmvw_A4_DATASHEET_(EN).pdf(12/05/2026)455KB
Tender SpecificationArcspotmvw_TENDER_SPECIFICATION.pdf(09/07/2024)316KB

User manual

File name File size Download
User manualArcspotmvw_USER_MANUAL_EN.pdf(28/05/2026)4MB
User manualArcspotmvw_General_Safety_Information.pdf(11/09/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartArcspotmvw_DMX_CHARTS.pdf(06/05/2024)172KB

ARCSPOTMVW Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
arcspot mvw.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPArcspotmvw_3D.skp(28/12/2023)660KB
2DARCSPOTMVW_2D.zip2MB
3DArcspotmvw_CAD_3D.dwg(28/12/2023)258KB
2D cad symbolsARCSPOTMVW_2DSYMBOLS.zip68KB
Technical drawingARCSPOTMVW_TECHNICAL DRAWINGS.zip354KB
VectorWorksARCSPOTMVW_SYMBOLS.vwx(06/02/2024)1MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(20/05/2026)321MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

Methods are listed in the product specs - ELECTRONICS > Firmware upgrade.

Method / Device Extension Required software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) UPBOX1 and UPBOX2 are still usable - check compatibility on the product accessories page. UPBOX2 requires drivers from this link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO - see the products list.

Update procedure
  1. Check the update methods on your product (ELECTRONICS> Firmware upgrade).
  2. Download the firmware and the dedicated software.
  3. Follow the update guide included in the firmware folder.

Need help?
support@prolights.it

Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 12/09/2024

Improvement:

  • Improved DMX address stability management.
