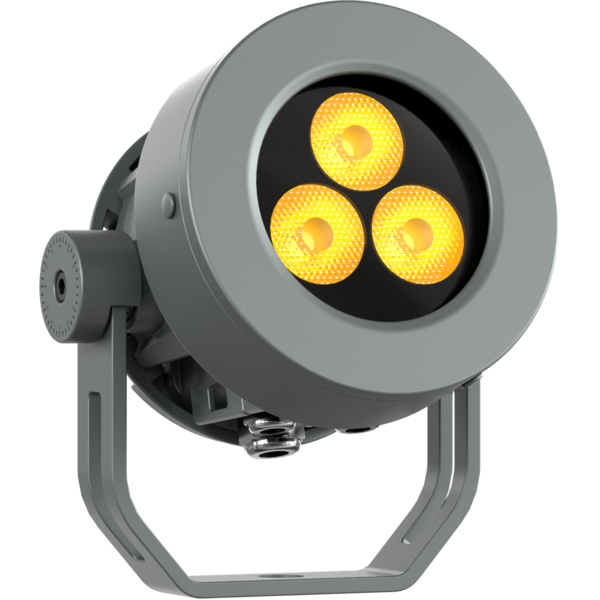

ArcSpot XSFC

IP66 Spot featuring 630 lumen with 3x4W RGB+WarmWhite source, 10° native

The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

Among the series, the ArcSpot XSFC stands out as an extra small round spot. It is equipped with 3x 4W RGB+WarmWhite LED source, delivering 10° beam angle with a fixture output of 630 lumens.

These fixtures are engineered with a dual chamber design, with the physical  separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is DMX compatible, offering the convenience of remote management via RDM.

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.

SPEKTRA5 YEARS WARRANTY

Main features:

  • Exterior Spot featuring 630 lumen with 3x 4W RGB+WarmWhite LED source
  • IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
  • Comprehensive selection of optics, holographic filters and light modifiers
See variants

PHOTO GALLERY

ArcSpot XSFC
ArcSpot XSFC
ArcSpot XSFC
ArcSpot XSFC

Technical specifications

LIGHT SOURCE
  • Source: 3 x 4W RGB + Warm White LED
  • Source CCT: 2.800K - 10.000KK
  • Luminous flux: 630 @Full
  • Lux: 391lx @5 m full
  • Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 11°
  • Field angle: 20°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • Colour wheel: gel filters included
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 5 / 6 / 9 / 12ch
  • RDM: for remote addressing and parameter configuration
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 17W
  • Standby power: 0,5 W
  • Power factor: > 0,9
CONNECTIONS
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 53 cm moulded IP signal IN/OUT connectors
  • Power connection: 53 cm moulded IP power IN connector
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: IK07 impact rating
  • Housing: Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
  • Finish: RAL 7012
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 132x156x99mm / 5.2''x6.14''x3.9''
  • Weight: 1,0kg / 2.2lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
  • Hardware on-board: optional accessories: half snoot and louvre
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ARCSPOTXSFCGY
ARCSPOTXSFCGY
RAL 7012

Accessories & Related Products

ARCSPK
ARCSPK
(Optional)
ArcSpot Series Ground Spike, RAL7012 with C5M (Marine Grade)
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
PLYPC3010E73D
PLYPC3010E73D
(Optional)
Y splitter power cable 3x1.0 mm2, IP67 connectors (1 IN + 2 OUT), 80 cm lenght
THR390S3T
THR390S3T
(Optional)
3-Way junction connector, 'T' type, 3 Poles, IP68
THR209S6D
THR209S6D
(Optional)
4-Way junction box type H, 3 poles, IP66/IP68
<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
ASLENS10
ASLENS10
(Included)
Lens for ARCSPOT series, 10°
ASLENS15
ASLENS15
(Optional)
Lens for ARCSPOT series, 15°
ASLENS25
ASLENS25
(Optional)
Lens for ARCSPOT series, 25°
ARXSFILTER20
ARXSFILTER20
(Optional)
Light diffusion filter for ARCSPOTXS series, 20°
ARXSFILTER40
ARXSFILTER40
(Optional)
Light diffusion filter for ARCSPOTXS series, 40°
ARXSFILTER60
ARXSFILTER60
(Optional)
Light diffusion filter for ARCSPOTXS series, 60°
ARXSFILTER1060
ARXSFILTER1060
(Optional)
Light diffusion filter for ARCSPOTXS series, 10°x60°
ARXSFILTER3060
ARXSFILTER3060
(Optional)
Light diffusion filter for ARCSPOTXS series, 30°x60°
ARXSHSNOOTGY
ARXSHSNOOTGY
(Optional)
Half snoot for ARCSPOTXS series, RAL 7012
ARXSHLOUVREGY
ARXSHLOUVREGY
(Optional)
Honeycomb louvre for ARCSPOTXS series, RAL 7012

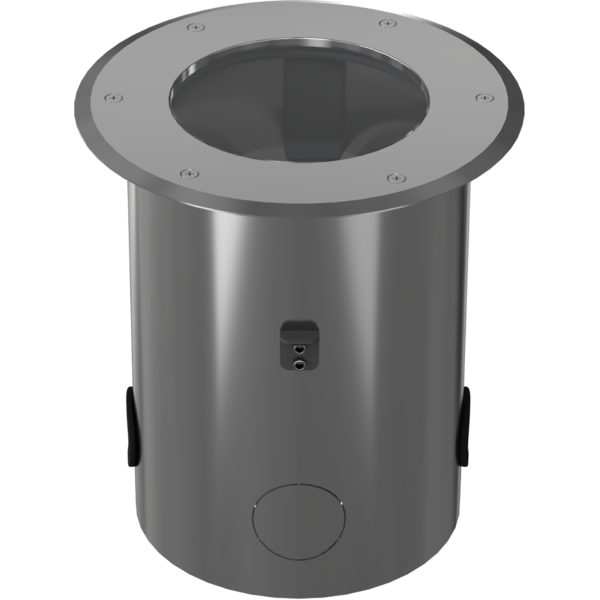

ASPOTOUTERCASEXS
ASPOTOUTERCASEXS
(Optional)
Outercase box for ground installation for ARCSPOTXS series
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcspotxsfcgy_LETTER_DATASHEET_(EN).pdf(13/06/2024)363KB
Letter datasheetArcspotxsfc_A4_DATASHEET_(EN).pdf(09/07/2024)361KB
Tender SpecificationArcspotxsfc_TENDER_SPECIFICATION.pdf(09/07/2024)293KB

User manual

File name File size Download
User manualArcspotxsfc_USER_MANUAL_EN.pdf(10/04/2025)3MB
User manualArcspotxsfc_General_Safety_Information.pdf(11/09/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartArcspotxsfc_DMX_CHARTS.pdf(20/02/2024)300KB

ARCSPOTXSFC Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
arcspot xsfc.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPArcspotxsfc_3D.skp(28/12/2023)372KB
2DARCSPOTXSFC_2D.zip2MB
3DArcspotxsfc_CAD_3D.dwg(02/02/2024)122KB
2D cad symbolsARCSPOTXSFC_2DSYMBOLS.zip67KB
Technical drawingARCSPOTXSFC_TECHNICAL DRAWINGS.zip289KB
VectorWorksARCSPOTXSFC_SYMBOLS.vwx(06/02/2024)652KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 12/09/2024 Improvement:
  • Improved DMX address stability management.
 Rev. 1.0
