DisplayCob TRWDDY

ORDER CODE: DISPLAYCOBTRWDDY

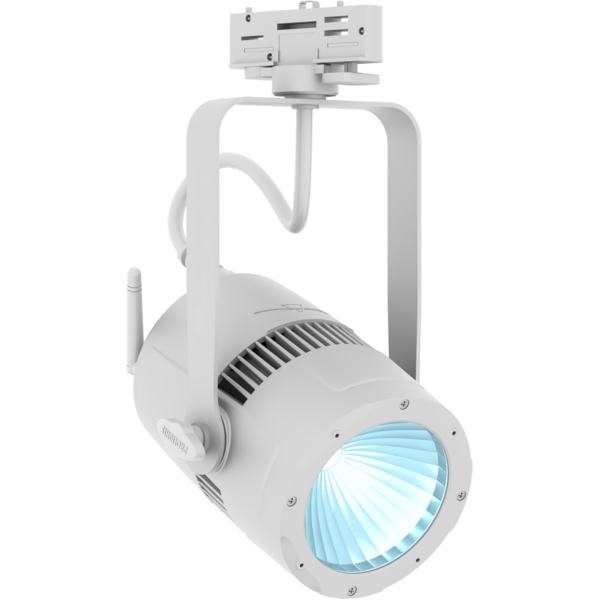

45W Daylight White LED track mounted and W-DMX/DMX spotlight

DisplayCob TRWDDY is a track mounted 45W Daylight White LED COB spotlight, designed with electronic and user interface on board being able to be implemented with any existing lighting track easily. The on board Wireless DMX receiver allow users to control this luminaire without any cable, so it doesn't need a specific track with data wirings, or it can be hanged without its track adaptor, anywhere using the onboard bracket and controlling via wired DMX protocol. DisplayCob TRWDDY optical systems is composed by a powerful COB LED source and a parabolic reflector, with swappable lenses allowing a beam angle from 15° up to 60° for a perfect focusing. DisplayCob features are an ideal solution to add dynamics and creativity in any installations such as commercials, hotels, restaurants and art galleries.

Main features:

  • 45W Daylight White LED COB spotlight with swappable optical group (15° ~ 60°)
  • Electronics on board and not on track for easy implementation
  • W-DMX and DMX512 control

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 45W White COB LED
  • CCT: 5.000
  • Luminous flux: 2'684 @full
  • Lux: (30°) 313lx @5 m full
  • CRI: > 91
  • R9: >58
  • TLCI: >91
  • TM30 Rf: >88
  • TM30 Rg: >98
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (included) - 15° (optional)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9003
CONTROL
  • Protocols: DMX512, W-DMX
  • DMX channels: 1 / 2 / 5channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 52W
  • Power factor: >0,98
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track-adapter included for suspension and fixing
  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
  • Dimensions (WxHxD): 167x290x163mm / 6.57''x11.42''x6.42''
  • Weight: 1,85kg / 4.08lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TRACKADAWH
TRACKADAWH
(Included)
Track adaptor - White
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
DISPLAYCOBL30
DISPLAYCOBL30
(Included)
Optics for DISPLAYCOB projectors series, 30°
DISPLAYCOBL15
DISPLAYCOBL15
(Optional)
Optics for DISPLAYCOB projectors series, 15°
DISPLAYCOBTPGWH
DISPLAYCOBTPGWH
(Optional)
Filter frame for DISPLAYCOB projectors, white
DISPLAYCOBBDWH
DISPLAYCOBBDWH
(Optional)
Barn door with 4 directional flaps to adjust the light beam, for DISPLAYCOB, WH
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDisplaycobtrwddy_A4_DATASHEET_(EN).pdf173KB

User manual

DMX chart & personalities

File name File size Download
DMX chartDisplaycobtrwddy_DMX_CHARTS.pdf37KB
DISPLAYCOBTRWDDY Firmware rev. 1.5
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_displaycobdy_5ch.hedDownload
manufacturer fixture library (Link) Link
displaycobdy_1ch.fdfDownload
displaycobdy_2ch.fdfDownload
displaycobdy_5ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
display cob dy 1 channel.fix2Download
display cob dy 2 channel.fix2Download
display cob dy 5 channel.fix2Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 21/12/2023 New Functions:
  • Added Dimmer Curve Linear, S-Curve, Square Law (default value), Inverse Square Law
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
