DISPLAYCOBTRWDFC
PROLIGHTS

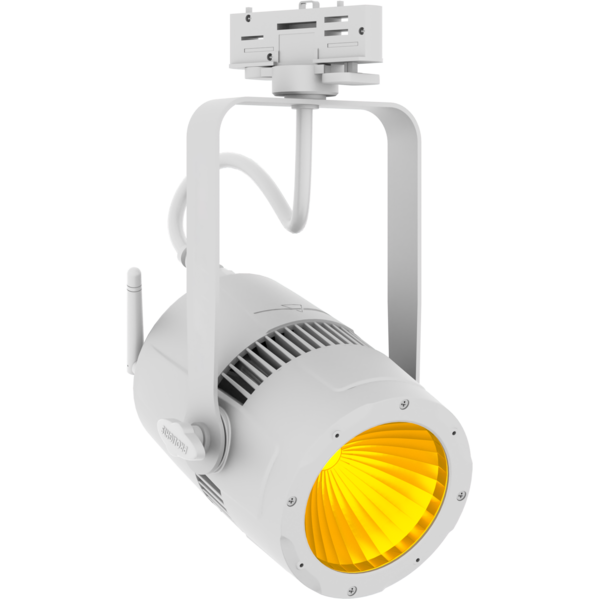

DisplayCob TRWDFC

ORDER CODE: DISPLAYCOBTRWDFC

60W RGB / FC track mounted and W-DMX / DMX spotlight

DisplayCob TRWDFC is a track mounted 60 W RGB / FC COB spotlight, designed with electronic and user interface on board being able to be implemented with any existing lighting track easily. The on board Wireless DMX receiver allow users to control this luminaire without any cable, so it doesn't need a specific track with data wirings, or it can be hanged without its track adaptor, anywhere using the onboard bracket and controlling via wired DMX protocol. DisplayCob TRWDFC optical systems is composed by a powerful 60 W COB LED source and a parabolic reflector, with swappable lenses allowing a beam angle from 15° up to 60° for a perfect focusing. DisplayCob TRWDFC features are an ideal solution to add dynamics and creativity in any installations such as commercials, hotels, restaurants and art galleries.

Main features:

  • 60W RGB / FC COB spotlight with swappable optical group (15° ~ 60°)
  • Electronics on board and not on track for easy implementation
  • W-DMX and DMX512 control
See variants

PHOTO GALLERY

DisplayCob TRWDFC
DisplayCob TRWDFC
DisplayCob TRWDFC
DisplayCob TRWDFC

Technical specifications

LIGHT SOURCE
  • Source: 60W COB RGB / FC LEDs
  • Luminous flux: 1'726 @Full
  • Lux: (60°) 223lx @3 m full
  • Lux: (30°) 573lx @3 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (included), 15° (optional)
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9003
CONTROL
  • Protocols: DMX512, W-DMX
  • DMX channels: 3 / 5 / 8channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 25 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 75W
  • Max power consumption (at 120V): 70W
  • Output (at 230V): 24 units on a single power line
PHYSICAL
  • IP rating: IP20
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: track-adapter included for suspension and fixing
  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
  • Dimensions (WxHxD): 167x290x163mm / 6.57''x11.42''x6.42''
  • Weight: 1,85kg / 4.08lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
TRACKADAWH
TRACKADAWH
(Included)
Track adaptor - White
DISPLAYCOBL30
DISPLAYCOBL30
(Included)
Optics for DISPLAYCOB projectors series, 30°
DISPLAYCOBL15
DISPLAYCOBL15
(Optional)
Optics for DISPLAYCOB projectors series, 15°
DISPLAYCOBTPGWH
DISPLAYCOBTPGWH
(Optional)
Filter frame for DISPLAYCOB projectors, white
DISPLAYCOBBDWH
DISPLAYCOBBDWH
(Optional)
Barn door with 4 directional flaps to adjust the light beam, for DISPLAYCOB, WH
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDisplaycobtrwdfc_A4_DATASHEET_(EN).pdf339KB

User manual

File name File size Download
User manualDisplaycobtrwdfc_USER_MANUAL_EN.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartDisplaycobtrwdfc_DMX_CHARTS.pdf76KB
DISPLAYCOBTRWDFC Firmware rev. 1.8
manufacturer fixture library (Link) Link
prolights_displaycobfc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
displaycobfc_3ch.fdfDownload
displaycobfc_5ch.fdfDownload
displaycobfc_8ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
display cob fc 3 channel.fix2Download
display cob fc 5 channel.fix2Download
display cob fc 8 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPDisplaycobtrwdfc_3D.skp364KB
3D RFADisplaycobtrwdfc_3D.rfa2MB
2DDisplaycobtrwdfc_CAD_2D.dwg13MB
3DDisplaycobtrwdfc_CAD_3D.dwg535KB
2D cad symbolsDisplaycobtrwdfc_CAD_2DSYMBOLS.dwg56KB
Technical drawingDisplaycobtrwdfc_TECHNICAL_DRAWING.pdf304KB
VectorWorksVECTORWORKS_SYMBOLS.vwx875KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.8 STABLE 21/12/2023 New Functions:
  • Added Dimmer Curve Linear, S-Curve, Square Law (default value), Inverse Square Law
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
 Rev. 1
Rev. 2
Rev. 3
Rev. 1.0
