DOTQPACK
PROLIGHTS

Dot QPack

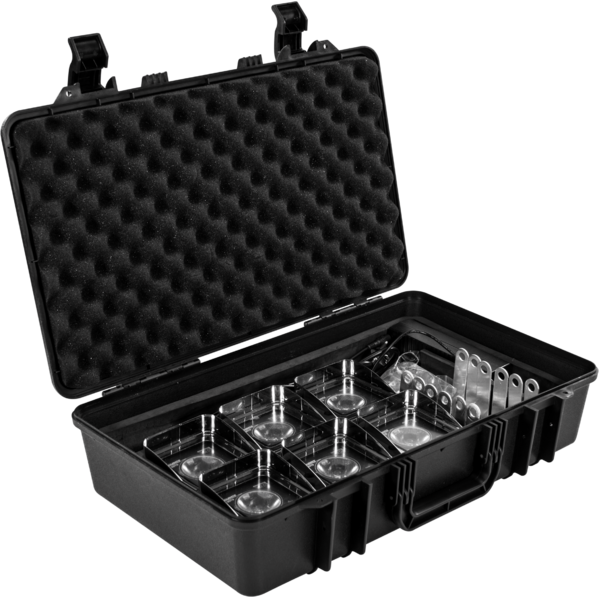

Kit composed by 6 pcs of Dot Q, charger, IR remote controller, pelican case

Dot QPack is a bundle composed by 6pcs of Dot Q, IR remote controller, accessories and charger for the whole set - all included in a sturdy ABS case. Dot Q is an ultra-compact, wireless, battery, LED accent luminaire designed to complement uplighting both inside and outside a room. The compact form factor and chrome finish allow it to be used anywhere that needs a “little lift” to finish off the perfect event design.

Main features:

  • Even, powerful saturated and pastel colours from single 15W RGBW LED.
  • Chrome finish, ultra-compact size and IP65 rating for incredible versatility.
  • DOTQPACK include:
  • ABS case with 6pcs of Dot Q;
  • 6 hanging bracket;
  • 12 air suckers;
  • 6 eye bolt;
  • 6 magnetic frost filter;
  • 6 top hat;
  • IR controller;
  • Battery charger for 6 Dot Q;
  • 24 pcs rubber feet;
  • adjustable foot support
See variants

PHOTO GALLERY

Dot QPack
Dot QPack
Dot QPack

Technical specifications

LIGHT SOURCE
  • Source: 1x15W RGBW LED
  • Luminous flux: 550
  • Lux: 710lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 15°
  • Field angle: 23°
  • Additional optics: Magnetic Frost filter included for wider diffusion
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 2.800-9.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: air suckers, eye bolts, top hat, rubber feets (included in DOTQPACK)
  • Tilt range: ° adjustable foot support for tilt regulation (up to 20°)
  • Body: sturdy policarbonate body
  • Body colour: mirror finishing
CONTROL
  • Protocols: W-DMX, RDM
  • DMX channels: 5 / 9channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: 3 chars display
  • IR: infrared remote controller for simple control, addressing and settings
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: 0° ~ +35° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
BATTERY
  • Battery: 11,1V lithium
  • Estimated battery life in colour change mode up to: 16h
  • Estimated battery life in full-mode up to: 6h
  • Re-charge connection: power cable fast-charge in pelican case
  • Re-charge time: 3h/max
  • Battery status: LED battery status indicator
PHYSICAL
  • IP rating: IP65 (front) - IP54 (bottom)
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Dimensions (WxHxD): 520x125x320mm / 20.47''x4.92''x12.6''
  • Weight: 6kg / 13.23lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
DOTQPACKMR
DOTQPACKMR
Mirror

Accessories & Related Products

<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDotqpack_LETTER_DATASHEET_(EN).pdf249KB
Letter datasheetDotqpack_A4_DATASHEET_(IT).pdf254KB
Letter datasheetDotqpack_A4_DATASHEET_(EN).pdf250KB

User manual

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
