ECLEXPOFL150VW
PROLIGHTS

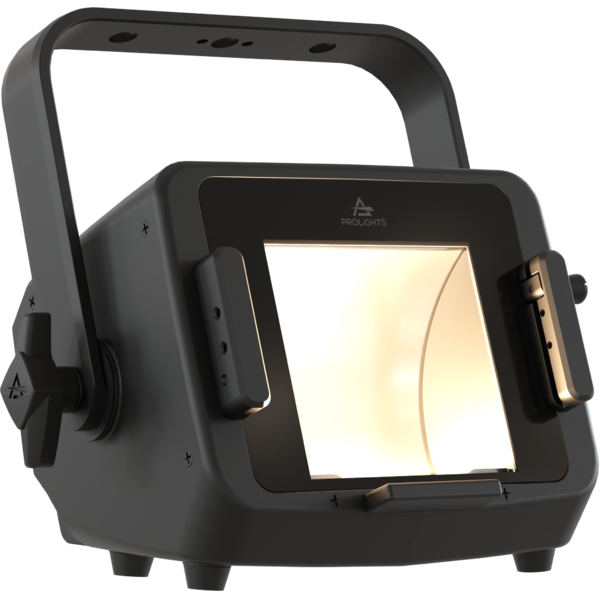

EclExpo Flood150VW

150W asymmetric LED floodlight, with Variable White CCT 2,700K - 6,500K

The EclExpo Flood150 is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theaters, or as a work light. Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood150 is available in two source variants:
- FC, which utilizes RGB+WarmWhite calibrated LED with high Color Rendering.
- VW, which uses a bi-color Vari White LED source with a CCT range of 2,700K-6,500K.

This unit is incredibly user-friendly, offering immediate stand-alone access through the knobs or through wired DMX/RDM or Wireless CRM (optional). Timeless Elegance meets Green Innovation: The EclExpo Flood150 - Where Classic Beauty Embraces Modern Technology


Main features:

  • 150W Variable White LED source, from 2,700K to 6,500K
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
See variants

PHOTO GALLERY

EclExpo Flood150VW
EclExpo Flood150VW
EclExpo Flood150VW
EclExpo Flood150VW
EclExpo Flood150VW

Technical specifications

LIGHT SOURCE
  • Source: 150W Variable White LED
  • CCT: 2.700 K - 6.500 K
  • Luminous flux: @2.700K 6'956 lm; @6.500K 9'733 lm; @full 8'598
  • Lux: @2.700K 72 lx; @6.500K 99 lx; @full 91lx @5 m
  • CRI: 95,1 @2.700 K; 95,3 @6.500 K; 94.4 @full
  • R9: 95 @2.700 K; 88.4 @6.500 K; 80,7 @full
  • TLCI: 97 @2.700 K; 96 @6.500 K; 98 @full
  • TM30 Rf: > 94 @2.700 K; > 90 @6.500 K; > 92 @full
  • TM30 Rg: < 101 @2.700 K; < 99 @6.500 K; < 102 @full
  • Source life expectancy: > 20.000 h
OPTICS
  • Optics: asymmetrical beam reflector in pure aluminium 99,6%
  • Beam angle: (H) 100° x (V) 60°
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K - 6.500K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of intensity and CT from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast magnesium body
  • Body colour: RAL 9004
  • Other: see available accessories
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 2 rotatory knobs
  • DMX channels: 1 / 2 / 3 / 5 / 11channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 175W
  • Standby power: 110V (60Hz): 2,5W; 230V (50Hz): 4,5W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,99
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 283x273x176mm / 11.14''x10.75''x6.93''
  • Weight: 3,2kg / 7.05lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLEXPOFL150VWBK
ECLEXPOFL150VWBK
Black

Accessories & Related Products

FCLEXPOFL150
FCLEXPOFL150
(optional)
Flight case for 6 pcs of ECLEXPOFL150 series
ECLEXPOFL150FFBK
ECLEXPOFL150FFBK
(optional)
Filter frame for ECLEXPOFL150, black
ECLEXPOFL150BDBK
ECLEXPOFL150BDBK
(optional)
Barn door 8 directional flaps to adjust the light beam for ECLEXPOFL150, black
ECLEXPOFL150WKBK
ECLEXPOFL150WKBK
(optional)
CRMX Timo Fx kit for ECLEXPOFL150, black
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclexpofl150vw_LETTER_DATASHEET_(EN).pdf585KB
Letter datasheetEclexpofl150vw_A4_DATASHEET_(IT).pdf455KB
Letter datasheetEclexpofl150vw_A4_DATASHEET_(EN).pdf445KB
Tender SpecificationEclexpofl150vw_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclexpofl150vw_DMX_CHARTS.pdf109KB
ECLEXPOFL150VW Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclexpofl150vw_3D.skp347KB
2DEclexpofl150vw_CAD_2D.dwg4MB
3DEclexpofl150vw_CAD_3D.dwg129KB
2D cad symbolsEclexpofl150vw_CAD_2DSYMBOLS.dwg20KB
Technical drawingEclexpofl150vw_TECHNICAL_DRAWING.pdf601KB
VectorWorksVECTORWORKS_SYMBOLS.vwx257KB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB

Tech docs

File name File size Download
Noise ReportEclexpofl150vw_NOISE_REPORT.pdf628KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 26/08/2023 First Stable Release. Rev. 1.0
