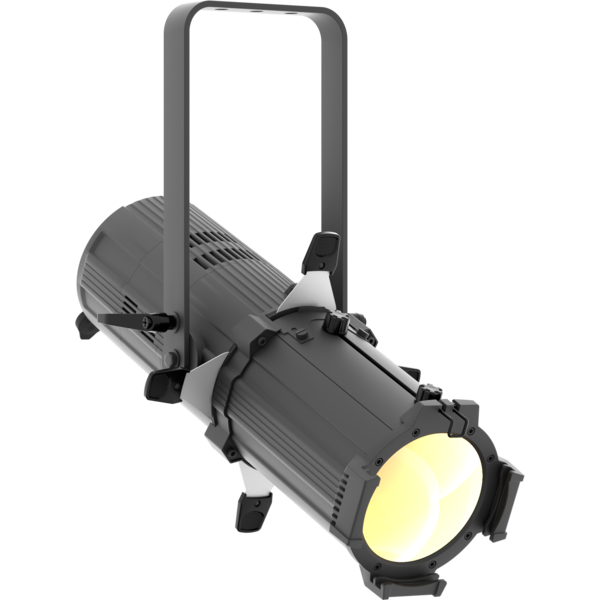

EclProfile JrZIP

IP65 160W zoomable LED ellipsoidal

EclProfile JrZIP is an IP rated zoomable ellipsoidal designed for exterior application. EclProfile JrZIP reaches an exceedingly high lumen output of nearly 6'000 lumens, and all in a compact size allowing for use on any outdoor show or for logo and texture projection over buildings. EclProfile JrZIP can use two different manual zoom lenses (optional) being 15° - 30° or 25° - 50° and it can be mounted at any distance from the projection surface.

Main features:

  • 160W white LED engine with 3.000 K CT, delivering nearly 6'000 lumens
  • IP65 allowing for temporary outdoor installations and events
  • Optional optics available: 15° - 30° and 25° - 50°
See variants

PHOTO GALLERY

EclProfile JrZIP
EclProfile JrZIP
EclProfile JrZIP
EclProfile JrZIP
EclProfile JrZIP

Technical specifications

LIGHT SOURCE
  • Source: 160W Warm White LED
  • Source CCT: (TU) 3.100 K - (DY) 5.500K
  • Luminous flux: (TU - 50°) 5'274 lm - (TU - 25°) 5'770 lm; (TU - 30°) 4'200 lm - (TU - 15°) 5'012 lm - (DY - 50°) 5'390 lm - (DY - 25°) 4'911 lm; (DY - 30°) 3'844 lm - (DY - 15°) 4'450
  • Lux: (TU - 50°) 2'040 lx - (TU - 25°) 5'160 lx; (TU - 30°) 3'710 lx - (TU - 15°) 12'900 lx - (DY - 50°) 1'750 lx - (DY - 25°) 4'530 lx; (DY - 30°) 3'000 lx - (DY - 15°) 11'200lx @3 m
  • Lux: (TU - 50°) 734 lx - (TU - 25°) 1'857 lx; (TU - 30°) 1'336 lx - (TU - 15°) 4'644 - (DY - 50°) 630 lx - (DY - 25°) 1'630 lx; (DY - 30°) 1'080 lx - (DY - 15°) 4'032lx @5 m
  • CRI: >90
  • TLCI: 91
  • TM30 Rf: 88
  • TM30 Rg: 97
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (not included) manual zoom lens 15°-30° or (not included) manual zoom lens 25°-50°
  • Lens diameter: 87mm / 3.43''
  • Lens type: high-quality glass lens optics
  • Focus: manual
COLOUR SYSTEM
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
GOBOS
  • Gobo size (wheel1): M, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
CONTROL
  • Supported Protocols: DMX512, W-DMX
  • DMX channels: 1 / 3ch
  • Wireless Control: Included LumenRadio Timo Fx receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 136W
  • Max power consumption (120V): 138,6W
  • Power factor: pF 0,98 @120 V - pF 0,97 @230 V
CONNECTIONS
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 275x440x275mm / 10.83''x17.32''x10.83''
  • Weight: 7,9kg / 17.42lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
  • Hardware on-board: on board mechanics for rigging to the ceiling
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
Housing
ECLJZIPTUBK
ECLJZIPTUBK (END OF LIFE)
3.100 K
> 90
Black
ECLJZIPDYBK
ECLJZIPDYBK
5.500 K
> 90
Black

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
FCLECLJZIP
FCLECLJZIP
(Optional)
Flightcase for 6 pcs of ECLJZIP
ECLJZIPLZ1530
ECLJZIPLZ1530
(Optional)
Optional 15°-30° zoom optic for ECLJZIP profiler
ECLJZIPLZ2550
ECLJZIPLZ2550
(Optional)
Optional 25°-50° zoom optic for ECLJZIP profiler
ECLJRGH
ECLJRGH
(Optional)
Gobo holder for ECLJR profilers
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEcljzip_A4_DATASHEET_(IT).pdf(30/04/2021)174KB
Letter datasheetEcljzip_A4_DATASHEET_(EN).pdf(02/09/2021)194KB

User manual

File name File size Download
User manualEcljzip_USER_MANUAL.pdf(24/04/2020)8MB

DMX chart & personalities

File name File size Download
DMX chartEcljzip_DMX_CHARTS.pdf(24/04/2020)53KB

ECLJZIP Firmware rev. 1.1

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsejzip_1ch.hedDownload
prolights_eclipsejzip_3ch.hedDownload
prolights@eclipsejzip@1ch.xmlDownload
prolights@eclipsejzip@3ch.xmlDownload

ECLJZIP Firmware rev. 1.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsejzip_1ch.hedDownload
prolights_eclipsejzip_3ch.hedDownload
prolights@eclipsejzip@1ch.xmlDownload
prolights@eclipsejzip@3ch.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLJZIP_3D_REVIT.zip26MB
2DEcljzip_CAD_2D.dwg(28/04/2021)7MB
3DEcljzip_CAD_3D.dwg(08/01/2020)25MB
2D cad symbolsECLJZIP_2DSYMBOLS.zip137KB
Technical drawingEcljzip_TECHNICAL_DRAWING.pdf(28/04/2021)480KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksECLJZIP_SYMBOLS.zip1MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 25/01/2021 Added Installation Function.
1.1 STABLE 08/10/2019 Improved firmware functionality. Rev. 1
1.0 STABLE 20/03/2019
