ECLPARIPMFC
PROLIGHTS

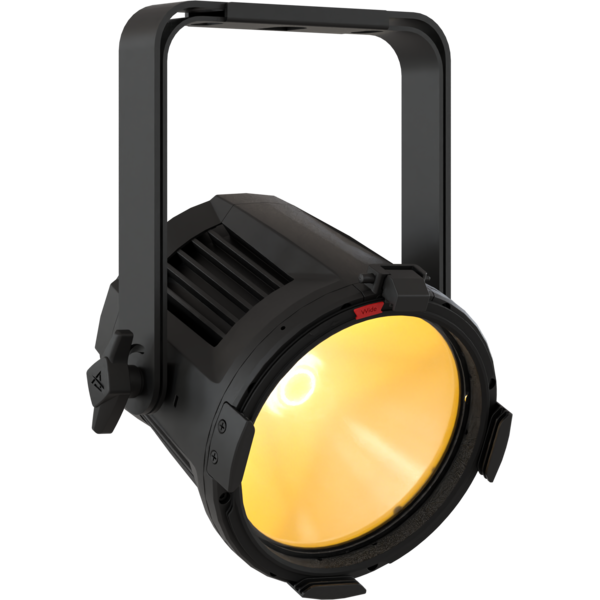

EclPar IPMFC

100W IP65 RGB+WW single source LED PAR

EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, corporate events or studios where silent operations are required.

The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

SPEKTRA

Main features:

  • 100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° and 60° optional
  • IP65 for exterior application, fan free
See variants

PHOTO GALLERY

EclPar IPMFC
EclPar IPMFC
EclPar IPMFC
EclPar IPMFC
EclPar IPMFC

Technical specifications

LIGHT SOURCE
  • Source: 100W RGB+WW LED array
  • Luminous flux: (15°) 3'324 lm; (30°) 3'348 lm; (60°) 3'462 @Full
  • Lux: (15°) 1'772 lx; (30°) 332 lx; (60°) 155lx @5 m full
  • CRI: 93,7 @3'200K; 91,1 @5'600K
  • R9: 89 @3'200K; 88 @5'600K
  • TLCI: 77 @3'200K; 86 @5'600K
  • TM30 Rf: 90 @3'200K; 89 @5'600K
  • TM30 Rg: 109 @3'200K; 108 @5'600K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 15° - (opt) 30°, 60°
  • Field angle: (on-board) 26°
  • Lens diameter: 172mm / 6.77''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 30°, 60°
  • Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.700 K ~ 10.000K
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: black
  • Other: Front mount holder for accessories as barn door, filter frame
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 120W
  • Output (at 230V): 12 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 262x327x213mm / 10.31''x12.87''x8.39''
  • Weight: 4,1kg / 9.04lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLPARIPMFCBK
ECLPARIPMFCBK
Black

Accessories & Related Products

FCLECLPARIPM
FCLECLPARIPM
(Optional)
Flight case for 6 pcs of ECLPARIPM series
EPIPMBAG1U
EPIPMBAG1U
(Optional)
Empty ABS case for 1 pc of ECLPARIPM series
EPIPMOS25BRK
EPIPMOS25BRK
(Optional)
Optional bracket kit, OS25PLUS compatible, for ECLPARIPM series
ECLPARIPMB4DBK
ECLPARIPMB4DBK
(Optional)
Barn door with 4 directional flaps to adjust the light beam for ECLPARIPM, black
ECLPARIPMBDBK
ECLPARIPMBDBK
(Optional)
Barn door with 8 directional flaps to adjust the light beam, ECLPARIPM, black
ECLPARIPMWKBK
ECLPARIPMWKBK
(Optional)
CRMX Timo Fx kit for ECLPARIP serie, black
EPIPMLENS15
EPIPMLENS15
(Included)
ECLPARIPM series 15° lens
EPIPMLENS30
EPIPMLENS30
(Optional)
ECLPARIPM series 30° lens
EPIPMLENS60
EPIPMLENS60
(Optional)
ECLPARIPM series 60° lens
EPIPMFHBK
EPIPMFHBK
(Optional)
Filter holder for ECLPARIPM series, black
EPIPMFILT1020
EPIPMFILT1020
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x20°
EPIPMFILT1040
EPIPMFILT1040
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x40°
EPIPMFILT1060
EPIPMFILT1060
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x60°
EPIPMFILT3060
EPIPMFILT3060
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 30°x60°
EPIPMFSNOOTBK
EPIPMFSNOOTBK
(Optional)
Full snoot for ECLPARIPM series, black
EPIPMFSNOOTL16BK
EPIPMFSNOOTL16BK
(Optional)
16cm lenght full snoot for ECLPARIPM series, black
EPIPMHLOUVREBK
EPIPMHLOUVREBK
(Optional)
Honeycomb louvre for ECLPARIPM series, black
EPIPMCLOUVREBK
EPIPMCLOUVREBK
(Optional)
Concentric louvre for ECLPARIPM series, black
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958215L03
958215L03
(Optional)
3x1.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclparipmfc_A4_DATASHEET_(EN).pdf(15/12/2023)518KB
Letter datasheetEclparipmfc_LETTER_DATASHEET_(EN).pdf(15/12/2023)520KB
Tender SpecificationEclparipmfc_TENDER_SPECIFICATION.pdf(24/10/2023)4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclparipmfc_DMX_CHARTS.pdf(27/01/2026)256KB

ECLPARIPMFC Firmware rev. 1.1.04.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclpar ipmfc.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLPARIPMFC_3D_SKETCHUP.zip886KB
2DECLPARIPMFC_2D.zip8MB
3DECLPARIPMFC_3D.zip1MB
2D cad symbolsEclparipmfc_CAD_2DSYMBOLS.dwg(25/08/2023)25KB
Technical drawingECLPARIPMFC_TECHNICAL DRAWINGS.zip896KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(16/11/2023)492KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclparipmfc_NOISE_REPORT.pdf(26/07/2023)136KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB .PRL No software needed see User Manual
NET CABLE .EHEX Professional Uploader Guide
NET CABLE .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product   accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.04.0 STABLE 27/01/2026

New Functions:

  • Added "Preset 1" / "Preset 2" / "Preset 3" / "Preset 4" in Colour Macro channel in the following DMX ranges:
    • Preset 1 = 136-137 dmx value
    • Preset 2 = 138-139 dmx value
    • Preset 3 = 140-141 dmx value
    • Preset 4 = 142-143 dmx value
  • Added "Preset 1" / ... / "Preset 4" to the Stand Alone Color Macro section. These can also be recalled via RDM via the Manufacturer PID "Color Macro" (pid values ​​from 67-70).
  • Added the "Delete All Preset Color Macro" Manufacturer PID in Stand Alone to delete all previously saved presets.
  • Added "Stand Alone Color Macro Preset 1" / ... / "Stand Alone Color Macro Preset 4" in Control Ch in the following dmx ranges:
    • Stand Alone Color Macro PRESET 1 = 124-125 dmx value
    • Stand Alone Color Macro PRESET 2 = 126-127 dmx value
    • Stand Alone Color Macro PRESET 3 = 128-129 dmx value
    • Stand Alone Color Macro PRESET 4 = 130-131 dmx value
  • Added "View/Modify Color Macro Preset 1" / ... / "View/Modify Color Macro Preset 4" in Control Ch in the following DMX ranges:
    • View/Modify Color Macro Preset 1 = 132-133 dmx value
    • View/Modify Color Macro Preset 2 = 134-135 dmx value
    • View/Modify Color Macro Preset 3 = 136-137 dmx value
    • View/Modify Color Macro Preset 4 = 138-139 dmx value
  • Added "Save/Overwrite Color Macro Preset 1" / ... / "Save/Overwrite Color Macro Preset 4"  in Control Ch in the following DMX ranges:
    • Save/Overwrite Color Macro Preset 1 = 140-141 dmx value
    • Save/Overwrite Color Macro Preset 1 = 142-143 dmx value
    • Save/Overwrite Color Macro Preset 1 = 144-145 dmx value
    • Save/Overwrite Color Macro Preset 1 = 146-147 dmx value

Operation:
The user can save the light output to one of the Presets available via the Control Channel in the DMX ranges 140-147. The Preset will be saved as a "custom" Color Macro and can therefore be displayed in the Color Macro Channel (range 136-143) and recalled in the Stand Alone Color Macro (manually or via RDM using Manufacturer PIDs). If the Preset has already been saved, it will be overwritten. The source will flash red twice when saving Preset 1, green twice when saving Preset 2, blue twice when saving Preset 3, and white twice when saving Preset 4 to notify the user that the preset has been saved successfully. The user can modify previously saved presets via the Control Ch channel (DMX range: 132-139): when a preset is selected in "View/Modify" mode, the fixture outputs the color stored in that preset. To edit it, move the required RGBW channels: a channel becomes editable only after its DMX value goes above the value saved in the preset. So ,to avoid unintended changes as soon as you enter View/Modify, it is recommended to set RGBW = 0 DMX before recalling the preset. After editing, save the updated preset again using the Control Channel (DMX 140–147).

Fixed Bug:

  • Color Macro does not work correctly in UNO/DUO Mode (previously saved color macro is lost after a reboot and Color Macro@Red appears in output).
 Rev. 1.0

Info Request

News

PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
January 30, 2026
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
PROLIGHTS unveils Muse Profile70CT+ , a moving LED profile designed to deliver uncompromised light quality for theatres, broadcast studios, and film sets. Equipped with a powerful 1000W 6-colour LED source with additive colour mixing, Muse Profile70CT+
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
January 26, 2026
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
PROLIGHTS introduces Astra Profile300LTIP and Astra Profile500LTIP , two new IP65-rated long-throw moving profiles designed to deliver powerful output, flexible optics, and reliable performance from small rigs to large arena productions indoor or out.
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
January 19, 2026
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
PROLIGHTS expands its modular blinder range with SunRise 4FLX , a new four-cell model that transforms the classic 4-lite blinder into a high-performance solution for indoor and outdoor stages. Making its debut at ISE 2026 , SunRise  4FLX is available
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
January 15, 2026
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
After more than two years of design, research, planning, and construction, Our Wondrous Planet , the most expansive science and biodiversity gallery in Museums Victoria's history, has opened at Melbourne Museum , offering visitors a breathtaking multisensory
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
January 07, 2026
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
The Grand Egyptian Museum (GEM) , officially inaugurated on 1 November 2025 on the Giza plateau, is the world's largest museum dedicated to a single civilisation. It houses a collection of over 100,000 artefacts, with nearly 50,000 on display, just a
PROLIGHTS Illuminates the Grand Egyptian Museum
January 02, 2026
PROLIGHTS Illuminates the Grand Egyptian Museum
Near one of the Great Pyramid of Khufu at Giza has officially opened a new cultural landmark of the modern era: the Grand Egyptian Museum (GEM) . Described as the world's largest archaeological museum, the GEM houses around 100,000 artefacts spanning
A PROLIGHTS Light Show at Kënga Magjike 2025
December 30, 2025
A PROLIGHTS Light Show at Kënga Magjike 2025
Kënga Magjike , the long-running Albanian music competition created and hosted by Ardit Gjebrea and organised by Televizioni Klan, reached an important milestone with its 25th edition. On the occasion of this special edition, bringing together both
PROLIGHTS lights Avi Avital's “Italy” project at Viva Musica! Festival in Bratislava
December 17, 2025
PROLIGHTS lights Avi Avital's “Italy” project at Viva Musica! Festival in Bratislava
For the final concert of the 21st Viva Musica! festival in Bratislava, virtuoso mandolinist Avi Avital appeared with his new ensemble Between Worlds, presenting “Italy”: a programme dedicated to Italian music, with a particular focus on the traditions
PROLIGHTS launches EclFresnel CT+XS: compact 120W 6-color LED Fresnel with 10°-75° zoom
December 15, 2025
PROLIGHTS launches EclFresnel CT+XS: compact 120W 6-color LED Fresnel with 10°-75° zoom
PROLIGHTS launches the EclFresnel CT+XS , a compact 120W LED Fresnel designed to replace classic 300W tungsten units while delivering outstanding colour fidelity and silent operation for broadcast, theatre and corporate environments. The fixture outputs
December 12, 2025
"Lars Tunbjörk: Landet utom sig” exhibition lit with PROLIGHTS
The exhibition “ Lars Tunbjörk: Landet utom sig ” , staged in Gallery 3 at Kulturhuset Stadsteatern in Stockholm , traces the work of the renowned Swedish photographer devoted to a Sweden in transition. The show presents the complete series, complemented
PROLIGHTS launches HaluStrip Duo: dual-layer IP65 linear bar combining beams and pixels
December 05, 2025
PROLIGHTS launches HaluStrip Duo: dual-layer IP65 linear bar combining beams and pixels
PROLIGHTS launches HaluStrip Duo , a one-metre dual-layer LED strip that fuses high-power warm-white beams with a high-brightness RGB+WW pixel surface in a modular frame. Designed for stage and broadcast, it delivers tight long-throw beams alongside video
Subscribe to our Newsletter
Loading...
