EclPar IPMFC

100W IP65 RGB+WW single source LED PAR

EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, corporate events or studios where silent operations are required.

The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

SPEKTRA

Main features:

  • 100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° and 60° optional
  • IP65 for exterior application, fan free
See variants

PHOTO GALLERY

EclPar IPMFC
EclPar IPMFC
EclPar IPMFC
EclPar IPMFC
EclPar IPMFC

Technical specifications

LIGHT SOURCE
  • Source: 100W RGB+WW LED array
  • Luminous flux: (15°) 3'324 lm; (30°) 3'348 lm; (60°) 3'462 @Full
  • Lux: (15°) 1'772 lx; (30°) 332 lx; (60°) 155lx @5 m full
  • CRI: 93,7 @3'200K; 91,1 @5'600K
  • R9: 89 @3'200K; 88 @5'600K
  • TLCI: 77 @3'200K; 86 @5'600K
  • TM30 Rf: 90 @3'200K; 89 @5'600K
  • TM30 Rg: 109 @3'200K; 108 @5'600K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 15° - (opt) 30°, 60°
  • Field angle: (on-board) 26°
  • Lens diameter: 172mm / 6.77''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 30°, 60°
  • Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.700 K ~ 10.000K
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: Front mount holder for accessories as barn door, filter frame
CONTROL
  • Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 120W
  • Output (at 230V): 12 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 262x327x213mm / 10.31''x12.87''x8.39''
  • Weight: 4,1kg / 9.04lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLPARIPMFCBK
ECLPARIPMFCBK
Black

Accessories & Related Products

FCLECLPARIPM
FCLECLPARIPM
(Optional)
Flight case for 6 pcs of ECLPARIPM series
EPIPMBAG1U
EPIPMBAG1U
(Optional)
Empty ABS case for 1 pc of ECLPARIPM series

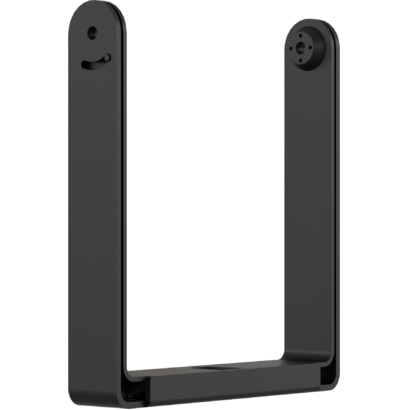

EPIPMOS25BRK
EPIPMOS25BRK
(Optional)
Optional bracket kit, OS25PLUS compatible, for ECLPARIPM series
ECLPARIPMB4DBK
ECLPARIPMB4DBK
(Optional)
Barn door with 4 directional flaps to adjust the light beam for ECLPARIPM, black
ECLPARIPMBDBK
ECLPARIPMBDBK
(Optional)
Barn door with 8 directional flaps to adjust the light beam, ECLPARIPM, black
ECLPARTPG
ECLPARTPG
(Included)
Gel filter frame for ECLPAR projectors
ECLPARIPMWKBK
ECLPARIPMWKBK
(Optional)
CRMX Timo Fx kit for ECLPARIP serie, black
EPIPMLENS15
EPIPMLENS15
(Included)
ECLPARIPM series 15° lens
EPIPMLENS30
EPIPMLENS30
(Optional)
ECLPARIPM series 30° lens
EPIPMLENS60
EPIPMLENS60
(Optional)
ECLPARIPM series 60° lens
EPIPMFHBK
EPIPMFHBK
(Optional)
Filter holder for ECLPARIPM series, black
EPIPMFILT1020
EPIPMFILT1020
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x20°
EPIPMFILT1040
EPIPMFILT1040
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x40°
EPIPMFILT1060
EPIPMFILT1060
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x60°
EPIPMFILT3060
EPIPMFILT3060
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 30°x60°

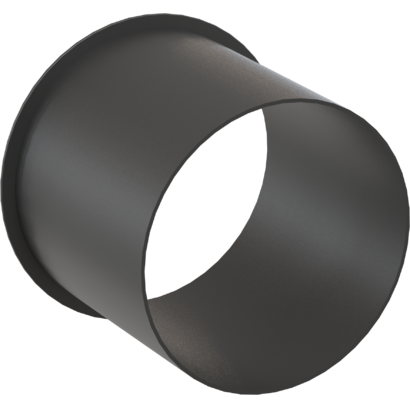

EPIPMFSNOOTBK
EPIPMFSNOOTBK
(Optional)
Full snoot for ECLPARIPM series, black
EPIPMFSNOOTL16BK
EPIPMFSNOOTL16BK
(Optional)
16cm lenght full snoot for ECLPARIPM series, black
EPIPMHLOUVREBK
EPIPMHLOUVREBK
(Optional)
Honeycomb louvre for ECLPARIPM series, black
EPIPMCLOUVREBK
EPIPMCLOUVREBK
(Optional)
Concentric louvre for ECLPARIPM series, black
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958215L03
958215L03
(Optional)
3x1.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclparipmfc_A4_DATASHEET_(EN).pdf(15/12/2023)518KB
Letter datasheetEclparipmfc_LETTER_DATASHEET_(EN).pdf(15/12/2023)520KB
Tender SpecificationEclparipmfc_TENDER_SPECIFICATION.pdf(24/10/2023)4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclparipmfc_DMX_CHARTS.pdf(21/08/2023)231KB

ECLPARIPMFC Firmware rev. 1.1.03.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclpar ipmfc.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLPARIPMFC_3D_SKETCHUP.zip886KB
2DECLPARIPMFC_2D.zip8MB
3DECLPARIPMFC_3D.zip1MB
2D cad symbolsEclparipmfc_CAD_2DSYMBOLS.dwg(25/08/2023)25KB
Technical drawingECLPARIPMFC_TECHNICAL DRAWINGS.zip896KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(16/11/2023)492KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclparipmfc_NOISE_REPORT.pdf(26/07/2023)136KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.03.0 STABLE 18/09/2025 Improvements:
  • Improved Stand Alone section
  • Improved Stand Alone Master/Slave behavior
Fixed Bug:
  • Fixture plays Stand Alone Fixed Colors RGBW even if Effect or Color Macro has been set.
  • In a daisy chain, if two devices are set to Stand Alone@Master DMX they may create configuration losses and start address@504 appears on the display.
 Rev. 1.0

Info Request

News

PROLIGHTS launches HaluStrip Duo: dual-layer IP65 linear bar combining beams and pixels
December 05, 2025
PROLIGHTS launches HaluStrip Duo: dual-layer IP65 linear bar combining beams and pixels
PROLIGHTS launches HaluStrip Duo , a one-metre dual-layer LED strip that fuses high-power warm-white beams with a high-brightness RGB+WW pixel surface in a modular frame. Designed for stage and broadcast, it delivers tight long-throw beams alongside video
PROLIGHTS lights Ocean Court at the National Maritime Museum in London
December 02, 2025
PROLIGHTS lights Ocean Court at the National Maritime Museum in London
Ocean Court , the glass-roofed atrium at the heart of the National Maritime Museum in Greenwich, London, has been equipped with a new event lighting system featuring PROLIGHTS fixtures. The installation, delivered by A.C. Special Projects (ACSP ) in partnership
Music & Lights announces the exclusive distribution of Unilumin Rental in Italy
December 01, 2025
Music & Lights announces the exclusive distribution of Unilumin Rental in Italy
Music & Lights is pleased to announce the signing of an exclusive distribution agreement for the Italian market for the Rental solutions of Unilumin , a global leader in professional LED display technology. Effective immediately, Music & Lights will
PROLIGHTS launches Astra Profile1200IP: high-output IP65 LED moving profile with 54,000 lm and full framing
November 26, 2025
PROLIGHTS launches Astra Profile1200IP: high-output IP65 LED moving profile with 54,000 lm and full framing
  PROLIGHTS launches the Astra Profile1200IP , a large-format IP65 LED moving profile engineered to deliver high brightness and robust performance for large outdoor stages and arenas. At its core is a 1,400 W white LED engine driven at 1,200 W (7,000
HaluPix Duo Delivers Stunning Visual Energy at When We Were Young Festival
November 24, 2025
HaluPix Duo Delivers Stunning Visual Energy at When We Were Young Festival
The When We Were Young festival took place in Las Vegas , bringing some of the most iconic names in alternative and pop-punk music back to the stage. Among this year's highlights on the 7-Eleven Stage was the performance by Panic! At The Disco , whose
RTP upgrades its news studios in Lisbon and Porto with PROLIGHTS
November 13, 2025
RTP upgrades its news studios in Lisbon and Porto with PROLIGHTS
The new RTP news studios in Lisbon (Marechal Gomes da Costa) and Porto (Centro de Produção do Norte) have been equipped with an advanced PROLIGHTS LED lighting system, supplied and installed by SLS - Sound and Light Systems , in collaboration with Pantalha
PROLIGHTS illuminates Acea's space at the Rome Film Fest
November 04, 2025
PROLIGHTS illuminates Acea's space at the Rome Film Fest
The 19th edition of the Rome Film Fest  has once again illuminated the Eternal City, and PROLIGHTS played a key role in shaping the luminous identity of Acea 's presence as Main Partner of the event. At the Auditorium Parco della Musica, ARETI provided
A Spooky-Yet-Bright Halloween at Carved with PROLIGHTS
October 28, 2025
A Spooky-Yet-Bright Halloween at Carved with PROLIGHTS
At the enchanting Descanso Gardens in Los Angeles , California, a family-friendly, Halloween-themed immersive experience called Carved was brought to life. The event was developed using the existing infrastructure of Enchanted Forest of Light, the gardens'
PROLIGHTS introduces EclExpo FloodIP series: IP-rated floodlight family available in multiple formats
October 20, 2025
PROLIGHTS introduces EclExpo FloodIP series: IP-rated floodlight family available in multiple formats
PROLIGHTS brings its celebrated EclExpo Flood platform outdoors with two sealed IP65 base models: EclExpo Flood150IP and EclExpo Flood300IP, each available in Full Color and Variable White variants. Designed to replace classic CDM/HMI floods for trade
A gothic glow with PROLIGHTS for Netflix's Wednesday Season two premiere
October 14, 2025
A gothic glow with PROLIGHTS for Netflix's Wednesday Season two premiere
Cockatoo Island in Sydney was transformed by renowned global experience agency Rizer into a gothic playground for the Season Two launch of Netflix's Wednesday , where eerie installations and atmospheric lighting brought the show's world to life against
PROLIGHTS Introduces ArcPod 300FCLT: long-throw LED wash
October 08, 2025
PROLIGHTS Introduces ArcPod 300FCLT: long-throw LED wash
PROLIGHTS unveils ArcPod 300FCLT , a high-performance, long-throw LED wash built for large-scale architectural lighting on skyscrapers, stadiums, city towers and bridges. With native 2.5° ultra-narrow optics, the 260 W fan-free fixture delivers up to
Lumina Electronic Festival powered by PROLIGHTS
October 03, 2025
Lumina Electronic Festival powered by PROLIGHTS
The historic Albanian city of Korçë , known for its vibrant cultural scene, recently hosted the Lumina Electronic Festival , where music and technology fused into an immersive environment powered by PROLIGHTS . Lighting design by Florind Tenolli , operated
Subscribe to our Newsletter
Loading...
