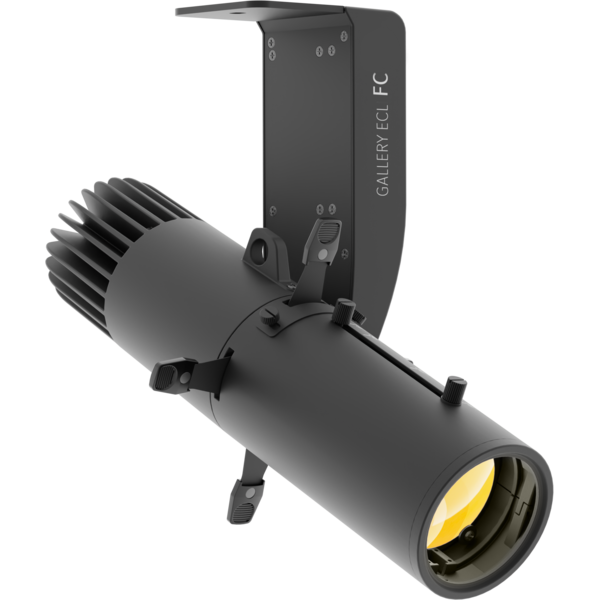

EclGalleryProfile FC

60W RGBW/FC zoomable LED ellipsoidals with framing shutter

EclGalleryProfile FC is a compact LED ellipsoidal luminaire engineered with a single 60W high power RGBW/FC LED by Osram for a limitless colour and white reporduction. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 20° to 37°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile FC is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile FC is truly flexible for any commercials, venues, artgalleries and churches.

Main features:

  • 60W RGBW/FC LED source
  • 20° to 37° on-board zoom with framing shutter and gobo holder
  • Wireless DMX control and optional track adapters for easy implementation
See variants

PHOTO GALLERY

EclGalleryProfile FC
EclGalleryProfile FC
EclGalleryProfile FC
EclGalleryProfile FC
EclGalleryProfile FC
EclGalleryProfile FC

Technical specifications

LIGHT SOURCE
  • Source: 60W RGBW Osram LED
  • Luminous flux: (20°) 663 lm - (37°) 635 @full
  • Lux: (20°) 264 lx - (37°) 93lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: 20° ~ 37° manual
  • Lens type: high-quality glass lens optics
  • Focus: manual
  • Other: accessory gobo holder for images and texture projection
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Gobo size: E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: tilt lock on arm
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9003
CONTROL
  • Protocols: W-DMX
  • DMX channels: 4 / 6 / 11channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 45W
  • Output (at 230V): 38 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Data connection: W-DMX
  • Power connection: 1,5 metres 3G0,75 bare end connection
  • Dimensions (WxHxD): 196x293x378mm / 7.72''x11.54''x14.88''
  • Weight: 2,9kg / 6.39lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
GALLERYECLBFC
GALLERYECLBFC
Black
GALLERYECLWFC
GALLERYECLWFC
White

Accessories & Related Products

GALLERYECLGH
GALLERYECLGH
(included)
Gobo holder for GALLERYECL profiler series.
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
NAKKT3013184
NAKKT3013184
(optional)
Kit for NAXTSA682 adapter, black
NAKKT3013185
NAKKT3013185
(optional)
Kit for NAXTSA683 adapter, white
TRACKADA
TRACKADA
(optional)
