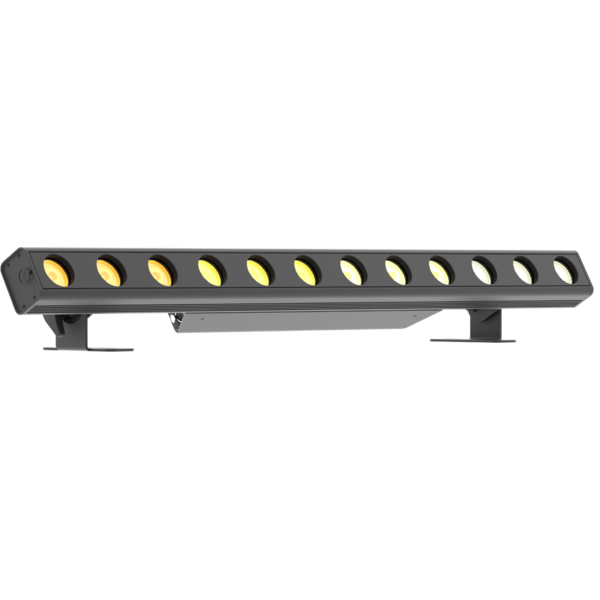

LumiPix 12QTour

ORDER CODE: LUMIPIX12QTOUR

12x10W RGBW/FC indoor LED batten

LumiPix 12QTour is a 100 cm linear LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output make LumiPix 12QTour a highly flexible and versatile solution for any kind of application or venue such as architectural, cyclorama, wall-washer, pixel effect or blinder.

Main features:

  • 12x10W RGBW/FC high-power LED
  • Pixel control of every individual LED
  • PowerCON IN/OUT and XLR 5p IN/OUT
See variants

PHOTO GALLERY

LumiPix 12QTour
LumiPix 12QTour
LumiPix 12QTour
LumiPix 12QTour
LumiPix 12QTour

Technical specifications

LIGHT SOURCE
  • Source: 12x10W RGBW LEDs
  • Luminous flux: (15°) 3'657 lm - (45°) 3'630 @full
  • Lux: (15°) 2'901lx @5 m full
  • Lux: (45°) 325lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 22,6°
  • Field angle: 39°
  • Lens diameter: 45mm / 1.77''
  • Additional optics: 15° (opt) - 45° (opt)
  • Other: on board magnetic frost holder
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 5 / 7 / 9 / 49channel
  • Pixel control: pixel2pixel control
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 7 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 100W
  • Max power consumption (at 120V): 105W
  • Output (at 230V): 30 units on a single power line
  • Output (at 120V): 14 units on a single power line
  • Power factor: 0,94
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 994x138x70mm / 39.13''x5.43''x2.76''
  • Weight: 5,4kg / 11.9lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
ARCLUMIL25D45
ARCLUMIL25D45
(Included)
Optic lens 25°, D.45mm
ARCLUMIL15D45
ARCLUMIL15D45
(Optional)
Optic lens 15°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Optional)
Optic lens 45°, D.45mm
OS25D13
OS25D13
(Optional)
Quick-Lock omega bracket, M12 hole
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipix12qtour_A4_DATASHEET_(EN).pdf282KB
Letter datasheetLumipix12qtour_A4_DATASHEET_(IT).pdf274KB

User manual

File name File size Download
User manualLumipix12qtour_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartLumipix12qtour_DMX_CHARTS.pdf123KB
LUMIPIX12QTOUR Firmware rev. 1.4
