LUMIPIX12TRIIP

ORDER CODE: LUMIPIX12TRIIP

12x3W RGB/FC high-efficiency LED IP rated

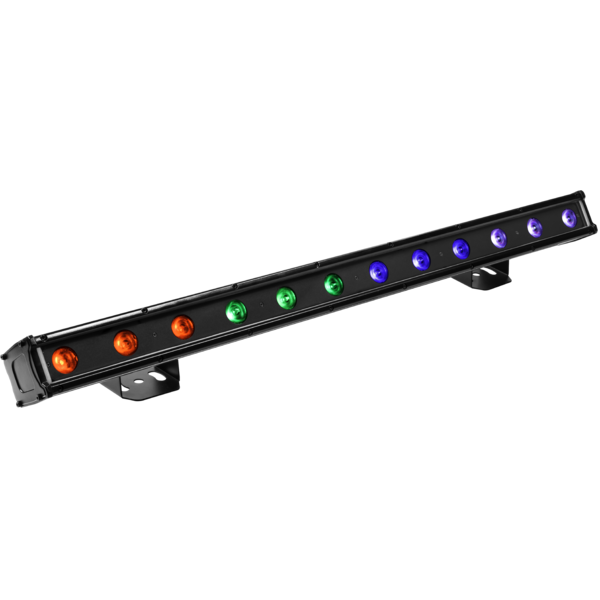

Lumipix 12TRIIP is a 1 m long outdoor linear colour changer equipped with 12 high-efficiency RGB / FC LED (3 W each). The control system is fully customisable allowing pixel control and independent selection of each LED from 3 to 36 channels. Lumipix 12TRIIP offers advanced possibilities in effect generation as LED video or sound activated arrays.

Main features:

  • 12x3W RGB/FC high-efficiency LED
  • Section control of the LED plate generating a wide range of dynamic effects
  • IP67 rated
  • Flicker-free operations
See variants

PHOTO GALLERY

LUMIPIX12TRIIP
LUMIPIX12TRIIP
LUMIPIX12TRIIP
LUMIPIX12TRIIP
LUMIPIX12TRIIP
LUMIPIX12TRIIP

Technical specifications

LIGHT SOURCE
  • Source: 12x3W RGB LEDs
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 16°
  • Field angle: 30°
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 4 / 6 / 7 / 9 / 12 / 18 / 36channel
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 40W
  • Output (at 230V): 16 units on a single power line
PHYSICAL
  • IP rating: 67
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: moulded IP signal IN/OUT connectors
  • Power connection: moulded IP power IN connector
  • Dimensions (WxHxD): 993x173x100mm / 39.09''x6.81''x3.94''
  • Weight: 6,5kg / 14.33lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
ARCEXDC3
ARCEXDC3
(Optional)
ARCEXAC3
ARCEXAC3
(Optional)
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipix12triip_A4_DATASHEET.pdf192KB

User manual

File name File size Download
User manualLumipix12triip_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
LUMIPIX12TRIIP Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_lumipix12triip.d4Download
manufacturer fixture library (Link) Link
prolights_lumipix12triip_3ch.hed Download
prolights_lumipix12triip_4ch.hed Download
prolights_lumipix12triip_6ch.hed Download
prolights_lumipix12triip_7ch.hed Download
prolights_lumipix12triip_9ch.hed Download
prolights_lumipix12triip_12ch.hed Download
prolights_lumipix12triip_18ch.hed Download
prolights_lumipix12triip_36ch.hed Download
manufacturer fixture library (Link) Link
lumipix12triip_3ch.fdf Download
lumipix12triip_4ch.fdf Download
lumipix12triip_6ch.fdf Download
lumipix12triip_7ch.fdf Download
lumipix12triip_9ch.fdf Download
lumipix12triip_12ch.fdf Download
lumipix12triip_18ch.fdf Download
lumipix12triip_36ch.fdf Download

Photometrics

CAD symbols & drawings

File name File size Download
2DLumipix12triip_CAD_2D.dwg486KB
Technical drawingLumipix12triip_TECHNICAL_DRAWING.pdf84KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 22/08/2014 Improved firmware functionality. Rev. 1
