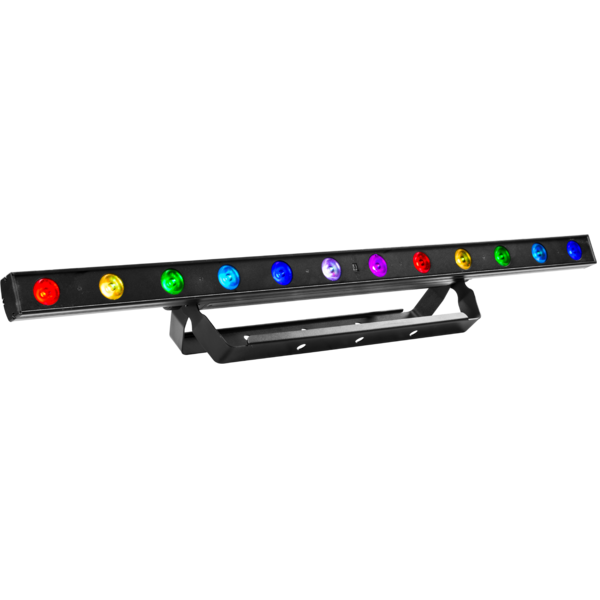

LumiPix 12UT

ORDER CODE: LUMIPIX12UT

12x3W RGB linear colour changer fitted LED

LumiPix 12UT is a linear colour changer fitted with luminous high-efficiency 12x3W RGB LED. The management system is fully customisable in line with the user requirements, from 3 to 41 channels management mode pixel control and for the independent control of each individual LED. LumiPix 12UT offers advanced capabilities for effects generation such as video or LED arrays-activated music. LumiPix 12UT can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and SmartColor app.

Main features:

  • From 3 to 41 channels for easy or complex use
  • Pixel2pixel control
  • USB port for USB WI-FI transceiver (optional)
  • Flicker-free operations
See variants

PHOTO GALLERY

LumiPix 12UT
LumiPix 12UT
LumiPix 12UT
LumiPix 12UT

Technical specifications

LIGHT SOURCE
  • Source: 12x3W RGB LEDs
  • Luminous flux: 1'247
  • Lux: 1'172lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 15°
  • Field angle: 34°
  • Lens diameter: 42mm / 1.65''
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: sturdy die-cast aluminium body
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 4 / 6 / 7 / 8 / 9 / 12 / 18 / 36 / 41channel
  • Pixel control: pixel2pixel control
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 / 28
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 50,5W
  • Max power consumption (at 120V): 52,1W
  • Output (at 230V): 50 units on a single power line
  • Output (at 120V): 24
PHYSICAL
  • IP rating: 33
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 987x49x157mm / 38.86''x1.93''x6.18''
  • Weight: 2,8kg / 6.17lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>WIFI</b>-USB
WIFI-USB
(optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
<b>WIFI</b>-Box
WIFI-Box
(optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
LUMIPARIRCH
LUMIPARIRCH
(optional)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipix12ut_A4_DATASHEET(EN).pdf159KB
Letter datasheetLumipix12ut_A4_DATASHEET_(IT).pdf178KB

User manual

File name File size Download
User manualLumipix12ut_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
LUMIPIX12UT Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_lumipix12ut.d4Download
manufacturer fixture library (Link) Link
prolights_lumipix12ut_3ch.hedDownload
prolights_lumipix12ut_4ch.hedDownload
prolights_lumipix12ut_6ch.hedDownload
prolights_lumipix12ut_7ch.hedDownload
prolights_lumipix12ut_8ch.hedDownload
prolights_lumipix12ut_9ch.hedDownload
prolights_lumipix12ut_12ch.hedDownload
prolights_lumipix12ut_18ch.hedDownload
prolights_lumipix12ut_36ch.hedDownload
prolights_lumipix12ut_41ch.hedDownload
lumipix12ut_3ch.fdfDownload
lumipix12ut_4ch.fdfDownload
lumipix12ut_6ch.fdfDownload
lumipix12ut_7ch.fdfDownload
lumipix12ut_8ch.fdfDownload
lumipix12ut_9ch.fdfDownload
lumipix12ut_12ch.fdfDownload
lumipix12ut_18ch.fdfDownload
lumipix12ut_36ch.fdfDownload
lumipix12ut_41ch.fdfDownload
lumipix 12 ut 3 channel.fix2Download
lumipix 12 ut 4 channel.fix2Download
lumipix 12 ut 6 channel.fix2Download
lumipix 12 ut 7 channel.fix2Download
lumipix 12 ut 8 channel.fix2Download
lumipix 12 ut 9 channel.fix2Download
lumipix 12 ut 12 channel.fix2Download
lumipix 12 ut 18 channel.fix2Download
lumipix 12 ut 36 channel.fix2Download
lumipix 12 ut 41 channel.fix2Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
Technical drawingLumipix12ut_TECHNICAL_DRAWING.pdf154KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 11/01/2016 Improved fade sincronization.

Info Request
