LUMIPIXXB050
PROLIGHTS

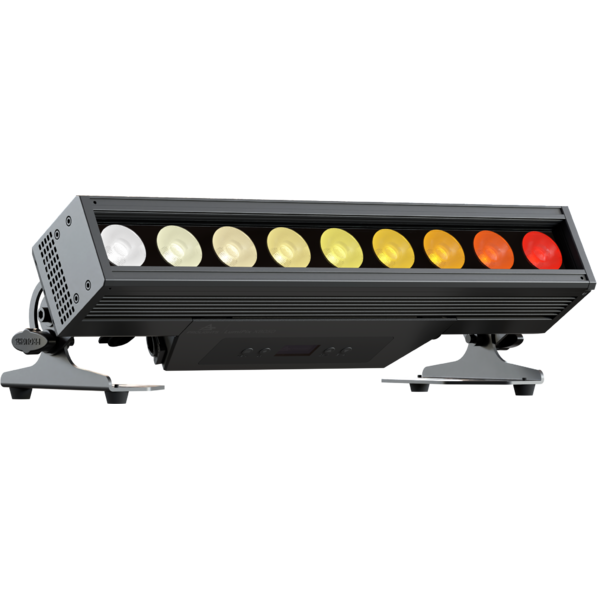

LumiPix XB050

ORDER CODE: LUMIPIXXB050

IP65 RGB+WW pixel-controlled linear LED fixture

The LumiPix XB is a family of IP65 high power and high quality linear luminaire, designed to meet advanced requirements from Film, Tv and Staging professionals.
The units are available in 100 cm (18 pixels) and 50 cm (9 pixels) and designed around a 20W RGB + Warm White LED source, delivering a bright 10° narrow beam angle beam angle, but still keeping smooth colour mixing, high CRI and TM30, and calibration down to pixel.
LumiPix XB can be completed by a wide range of optical modifiers such as optional lenses, holographic filters, eggcrates and barndoors, performing with extreme precision for the desired application. The design of the housing has been conceived to allow fast mounting and deploying of optical accessory through a quick-lock system.
These units has been designed to offer multiple choice of control like DMX/RDM, Ethernet and Wireless DMX (CRMX and W-DMX), sharing the same user settings and advanced software features of all Spektra calibrated fixtures.


SPEKTRA

Main features:

  • IP65, pixel-controlled LED linear fixture, available in 18 pixels and 9 pixels
  • 20W RGB+WW led source, delivering high CRI (>90), advanced colour control and effects generator
  • DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)
See variants

PHOTO GALLERY

LumiPix XB050
LumiPix XB050
LumiPix XB050
LumiPix XB050
LumiPix XB050
LumiPix XB050

Technical specifications

LIGHT SOURCE
  • Source: 9x20W RGB + Warm White LED
  • Luminous flux: 3'889 @Full
  • Lux: 11'687lx @3 m
  • Lux: 4'207lx @5 m
  • CRI: >94 @3'200 K ; >96 @5'600 K
  • R9: >91 @3'200 K ; >90 @5600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
  • Field angle: 18°
  • Lens type: different optics available
  • Additional optics: several filters available
COLOUR SYSTEM
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • Pixel control: 9 pixel2pixel control
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: Seetronic Ethernet IP in/out connectors
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 150W
  • Output (at 230V): 14
  • Power factor: >0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: forced-air with low-noise fan
  • Housing: Aluminium body
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 515x185x150mm / 20.28''x7.28''x5.91''
  • Weight: 3,8kg / 8.38lbs
INSTALLATION
  • Suspension and fixing: - hanging bracket for floor stand. Also can fit the fast quick lock OMEGA bracket
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
(*)
  • NOTE: Suitable for permanent outdoor use, provided that installation and periodic maintenance are carried out by qualified technicians.
BOX CONTENT

Versions

Accessories & Related Products

OS27PLUS
OS27PLUS
(Optional)
Quick-Lock omega bracket, M12 hole
FCLLUMIPIXXB
FCLLUMIPIXXB
(Optional)
Flight case for 4 pcs LUMIPIXXB100 or 8 pcs LUMIPIXXB050
LPXB050BD
LPXB050BD
(Optional)
Barndoor to adjust the light beam for LUMIPIXXB050
LPXB050EC60
LPXB050EC60
(Optional)
60° egg crate for LUMIPIXXB050
LPXB050FILT20
LPXB050FILT20
(Optional)
Light diffusion filter for LUMIPIXXB050C, 20°
LPXB050FILT40
LPXB050FILT40
(Optional)
Light diffusion filter for LUMIPIXXB050, 40°
LPXB050FILT60
LPXB050FILT60
(Optional)
Light diffusion filter for LUMIPIXXB050, 60°
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
OS27
OS27
(Included)
Quick-Lock omega bracket, M10 hole
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipixxb050_LETTER_DATASHEET_(EN).pdf(26/08/2025)559KB
Letter datasheetLumipixxb050_A4_DATASHEET_(EN).pdf(26/08/2025)566KB
Tender SpecificationLumipixxb050_TENDER_SPECIFICATION.pdf(18/10/2022)4MB

User manual

File name File size Download
User manualLumipixxb050_USER_MANUAL_EN.pdf(07/07/2025)6MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualLumipixxb050_Wireless_Protocol_Compatibilit_EN.pdf(12/06/2023)4MB

DMX chart & personalities

File name File size Download
DMX chartLumipixxb050_DMX_CHARTS.pdf(07/07/2025)2MB

LUMIPIXXB050 Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
lumipix xb050.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

LUMIPIXXB050 Firmware rev. 1.0.01.0002

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupLUMIPIXXB050_3D_SKETCHUP.zip3MB
2DLumipixxb050_CAD_2D.dwg(07/10/2022)6MB
2D cad symbolsLumipixxb050_CAD_2DSYMBOLS.dwg(08/10/2022)54KB
3DLUMIPIXXB050_3D.zip3MB
Technical drawingLumipixxb050_TECHNICAL_DRAWING.pdf(07/10/2022)416KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(11/10/2022)751KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(20/05/2026)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

Methods are listed in the product specs - ELECTRONICS > Firmware upgrade.

Method / Device Extension Required software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) UPBOX1 and UPBOX2 are still usable - check compatibility on the product accessories page. UPBOX2 requires drivers from this link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO - see the products list.

Update procedure
  1. Check the update methods on your product (ELECTRONICS> Firmware upgrade).
  2. Download the firmware and the dedicated software.
  3. Follow the update guide included in the firmware folder.

Need help?
support@prolights.it

Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 07/07/2025 New Function:
  • Added new DMX Mode "PIX" in DMX Mode->Fixture->Pixel
 Rev. 1.0
