MOSAICOFX100
PROLIGHTS

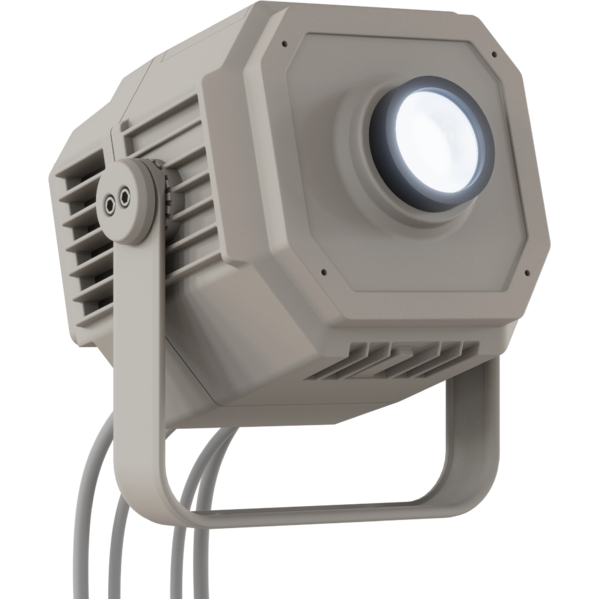

Mosaico FX100

Image projector with dual animation wheel and 1 gobo/color slot, 100W LED source

Mosaico FX100 is an 100W white source LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Mosaico FX100 is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

Mosaico FX100 is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.

This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.



Please note that Mosaico FX100 do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.


5 YEARS WARRANTY

Main features:

  • 100W White LED Source Image and Effect light projector
  • 15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
  • DMX, CRMX Wireless and local stand alone control

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • CCT: 8'000K
  • Luminous flux: (15°) 3'174 lm; (30° - WT) 3'246 lm; (30° - GB) 3'029 lm; (50° - WT) 3'646 lm; (50° GB) 2'217 lm; (70°) 2'367 @full
  • Lux: (15°) 1'612 lx; (30° - WT) 954 lx; (30° - GB) 114 lx; (50° - WT) 345 lx; (50° GB) 179 lx; (70°) 176lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: interchangeable - see available accessories
  • Focus: manual
COLOUR SYSTEM
  • Colour wheel: available as accessory MFX100CW
  • Other: included 1 static holder with magnetic positioning
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Gobo size (BW): outer: 26,9 mm - image: 22 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
  • Fixed gobos: Fix gobo wheel available as accessory MFX100GW
  • Static mode: selection of static dimmer and effects rotation mode
  • Other: included 1 static gobo holder with manual indexing gear and magnetic assembly
  • Other: 2 rotating wheels with magnetic mounting (structured glass included, color/gobo/animation and other wheels available as optional accessories)
BODY
  • Body: weatherproof IP66 construction
  • Body colour: RAL 9006 or RAL 9004
  • Other: Inspectable cover window for effects and gobo replacement and maintenance
CONTROL
  • Protocols: DMX512, RDM, CRMX + WDMX, 3 push encoder
  • Stand Alone: 3 push encoder
  • DMX channels: 8channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, electronic and manual knob dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 127W
  • Standby power: 7W
  • Output (at 230V): 15 units on a single power line
  • Power factor: >0.95
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 09
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 35 cm moulded IP signal IN/OUT connectors
  • Power connection: 35 cm moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 224x261x221mm / 8.82''x10.28''x8.7''
  • Weight: 5,7kg / 12.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
MOSAICOFX100GY
MOSAICOFX100GY
Gray
MOSAICOFX100BK
MOSAICOFX100BK
Black

Accessories & Related Products

MFX100BAG1U
MFX100BAG1U
(optional)
Empty ABS case for 1 pc of MOSAICOFX100
MFX100WBRAKGY
MFX100WBRAKGY
(optional)
Wall bracket for MOSAICOFX100, gray
MFX100WBRAKBK
MFX100WBRAKBK
(optional)
Wall bracket for MOSAICOFX100, black
MFX100FBRAKGY
MFX100FBRAKGY
(optional)
Floor bracket for MOSAICOFX100, gray
MFX100FBRAKBK
MFX100FBRAKBK
(optional)
Floor bracket for MOSAICOFX100, black
MOSUNIBRACKJR
MOSUNIBRACKJR
(optional)
Bracket for MOSAICOJR for wall mounting and suspension on poles
MFX100LWGN
MFX100LWGN
(optional)
15° FLEX lens for Mosaico FX100 series, narrow beam angle for animation and gobo
MFX100LWTM
MFX100LWTM
(optional)
30° lens for Mosaic FX100 series, medium beam for Animation effects.
MFX100LWTW
MFX100LWTW
(optional)
50° lens for Mosaic FX100 series, wide-angle for Animation effects.
MFX100LWGVW
MFX100LWGVW
(optional)
70° FLEX lens for Mosaico FX100 series, very wide beam angle, animation and gobo
MFX100LGBM
MFX100LGBM
(optional)
30° lens for Mosaico FX100 series, medium beam angle for gobo projection
MFX100LGBW
MFX100LGBW
(optional)
50° lens for Mosaico FX100 series, wide beam angle for gobo projection
GBVFX100120F06
GBVFX100120F06
(optional)
Cyan filter with white stripes for MOSAICOFX100
GBVFX100220F03
GBVFX100220F03
(optional)
Red filter with white stripes for MOSAICOFX100
GBVFX100320F04
GBVFX100320F04
(optional)
Green filter with white stripes for MOSAICOFX100
MFX100RAINW
MFX100RAINW
(optional)
Structured glass RAIN effect animation wheel
MFX100HAMMERHEADW
MFX100HAMMERHEADW
(optional)
Structured glass HAMMERHEAD effect animation wheel
MFX100D35CBLUE
MFX100D35CBLUE
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., blue
MFX100D35CGREEN
MFX100D35CGREEN
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., green
MFX100D35CMARINE
MFX100D35CMARINE
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., acquamarine
MFX100D35CCYAN
MFX100D35CCYAN
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., cyan
MFX100D35CMAGENTA
MFX100D35CMAGENTA
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., magenta
MFX100D35CYELLOW
MFX100D35CYELLOW
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., yellow
MFX100D35CPINK
MFX100D35CPINK
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., pink
MFX100D35CRED
MFX100D35CRED
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., red
MFX100D35CLORANGE
MFX100D35CLORANGE
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., light orange
MFX100D35CLGREEN
MFX100D35CLGREEN
(optional)
Color for MFX100CH for MOSAICOFX100, 34,8 mm d., light green
MFX100D35HCMARINE
MFX100D35HCMARINE
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., acquamarine
MFX100D35HCPINK
MFX100D35HCPINK
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., pink
MFX100D35HCMAGENT
MFX100D35HCMAGENT
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., magenta
MFX100D35HCCYAN
MFX100D35HCCYAN
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., cyan
MFX100D35HCBLUE
MFX100D35HCBLUE
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., blue
MFX100D35HCGREEN
MFX100D35HCGREEN
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., green
MFX100D35HCRED
MFX100D35HCRED
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., red
MFX100D35HCLGREEN
MFX100D35HCLGREEN
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., light green
MFX100D35HCLORANG
MFX100D35HCLORANG
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., light orange
MFX100D35HCYELLOW
MFX100D35HCYELLOW
(optional)
Half color for MFX100CH for MOSAICOFX100, 34,8 mm d., yellow
MFX100FILTER20
MFX100FILTER20
(optional)
Smooth/homogenizer filter for MOSAICOFX100 series, 20°
MFX100WE2
MFX100WE2
(included)
Standard structured glass effect wheel, long shaft 2 (included with projector)
MFX100WE1
MFX100WE1
(included)
Standard structured glass effect wheel, short shaft 1 (included with projector)
MFX100GW
MFX100GW
(optional)
Fix gobo wheel (no sigle gobo rot) for MOSAICOFX100 serie (gobos not included)
MFX100CW
MFX100CW
(optional)
Color wheel for MOSAICOFX100 serie
MFX100GH
MFX100GH
(included)
Gobo holder for MOSAICOFX100 serie (gobo not included) with manual indexing
MFX100CH
MFX100CH
(included)
Color holder for MOSAICOFX100 serie (color filters not included)
MFX100SNOOTGY
MFX100SNOOTGY
(optional)
Snoot for MOSAICOFX100GY series, gray
MFX100SNOOTBK
MFX100SNOOTBK
(optional)
Snoot for MOSAICOFX100BK series, black
MFX100SNOOTPROTGY
MFX100SNOOTPROTGY
(optional)
Anti tampering full snoot with front glass, gray
MFX100SNOOTPROTBK
MFX100SNOOTPROTBK
(optional)
Anti tampering full snoot with front glass, black
MFX100ENCOVERGY
MFX100ENCOVERGY
(optional)
Encoder protection cover for MOSAICOFX100 series, gray
MFX100ENCOVERBK
MFX100ENCOVERBK
(optional)
Encoder protection cover for MOSAICOFX100 series, black
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
LRAURORA
LRAURORA
(optional)
Single Universe DMX/RDM transceiver with WiFi and Bluetooth
RSR1235B
RSR1235B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

DMX chart & personalities

File name File size Download
DMX chartMosaicofx100_DMX_CHARTS.pdf85KB
MOSAICOFX100 Firmware rev. 1.1.01.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
MOSAICOFX100 Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 23/08/2023 Fixed Bug:
  • If the DMX data signal is connected at startup, the device does not turn on the light source.
Rev. 1.0

Info Request

News

November 20, 2024
PROLIGHTS lights up the Despotovac Cultural Centre
PROLIGHTS lights up the Despotovac Cultural Centre
November 18, 2024
Hotel National Chooses PROLIGHTS for New Stage Lighting Setup
Hotel National Chooses PROLIGHTS for New Stage Lighting Setup
November 11, 2024
PROLIGHTS Illuminates the WWE Experience in Riyadh
PROLIGHTS Illuminates the WWE Experience in Riyadh
November 07, 2024
ICOONTheatre shines with PROLIGHTS
ICOONTheatre shines with PROLIGHTS
November 04, 2024
Intense Lighting Expands Inventory with PROLIGHTS EclProfile CT+
Intense Lighting Expands Inventory with PROLIGHTS EclProfile CT+
October 28, 2024
PROLIGHTS Illuminates the Karol Szymanowski Academy of Music in Katowice
PROLIGHTS Illuminates the Karol Szymanowski Academy of Music in Katowice
October 21, 2024
NRK Chooses PROLIGHTS for the New Lighting Setup in Studio 5 of Dagsrevyen
NRK Chooses PROLIGHTS for the New Lighting Setup in Studio 5 of Dagsrevyen
October 18, 2024
Centrestate Sound & lighting choose PROLIGHTS Smart BatWash
Centrestate Sound & lighting choose PROLIGHTS Smart BatWash
October 15, 2024
PROLIGHTS lights up season 13th of Masterchef Poland
PROLIGHTS lights up season 13th of Masterchef Poland
October 11, 2024
PROLIGHTS lights up the final bouts of No Limit Boxing with EclPanel TWC
PROLIGHTS lights up the final bouts of No Limit Boxing with EclPanel TWC
October 08, 2024
Gotcha AV expands catalogue with PROLIGHTS
Gotcha AV expands catalogue with PROLIGHTS
October 04, 2024
PROLIGHTS lights up the Great Hall of the Historic Town Hall in Košice
PROLIGHTS lights up the Great Hall of the Historic Town Hall in Košice

Subscribe to our Newsletter

Loading...
