Smart Disk

Full colour and pixel controlled table centre with battery

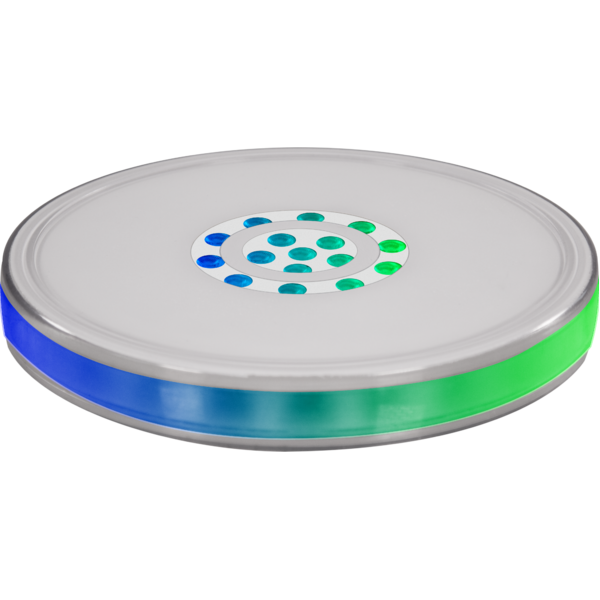

Smart Disk is an IP rated, wireless battery powered RGBW LED table centre. Designed for both branding events and adding a controllable element to a table - it adds an extra dimension to any event design.

Main features:

Battery powered and wireless DMX control for fast deployment and accurate control
Separate control of each RGBW LED pixel of up-light and side-light for dynamic effects
Available in a SMARTDISKPACK featuring 8 lights with accessories in an case with foam shell

See variants

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 39x0,25W RGB + Warm White
CCT: 2.800 K ~ 6.000
Source life expectancy: > 30.000 h

OPTICS

Beam angle: 360° to light up tables and 25° to light up objects on top

COLOUR SYSTEM

Colour mixing: RGBW / FC
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

FX generator: adjustable foreground/background colour, index, speed, direction
Static mode: selection of static colour
Manual mode: manual adjustment of colour

BODY

Body: sturdy policarbonate body
Body colour: white

CONTROL

Protocols: W-DMX
DMX channels: 4 / 8 / 17 / 165channel
Pixel control: pixel2pixel control
Wireless Control: included, wireless solution receiver
Display: LCD display
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
IR: infrared sensor controlled by remote

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: 0° ~ +45°

ELECTRICAL

Max power consumption: 19,9W

BATTERY

Battery: 4,4 Ah - 11,1V lithium
Estimated battery life in colour change mode up to: 15h
Estimated battery life in single colour mode up to: 24h
Estimated battery life in full-mode up to: 8h
Re-charge connection: power cable
Re-charge time: 5h/max
Battery status: shown on display

PHYSICAL

IP rating: 54
Data connection: W-DMX receiver
Dimensions (WxHxD): 300x40x300mm / 11.81''x1.57''x11.81''
Weight: 1,62kg / 3.57lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x SMARTDISK
1 x PRL-IRC
1 x battery charger
User Manual

Versions

Code

SmartDisk

IRC

Case with recharger

Recharger

SMARTDISK1

1x1

SMARTDISKPACK
