SMARTOWER
PROLIGHTS
discontinued

Smart Tower

ORDER CODE: SMARTOWER

Dynamic battery operated event luminaire projecting 360°

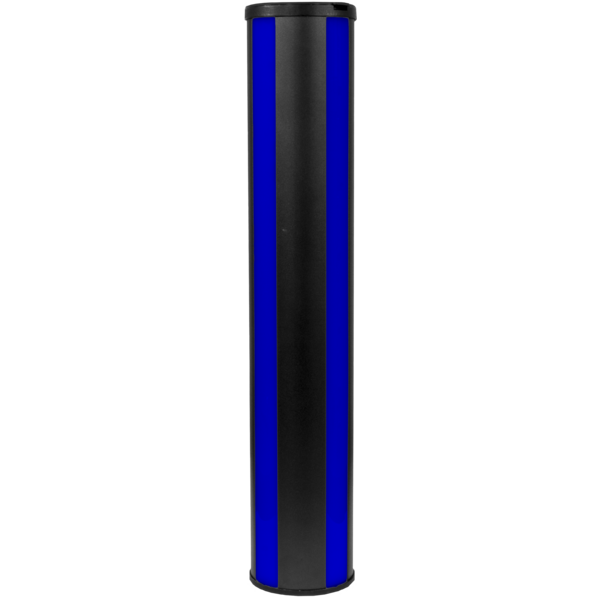

Smart Tower is a new concept of outdoor portable pixel and decor luminaire, featuring a full cable-free operation and delivering a multitude of visual effects projecting a full 360°. Smart Tower consists of a vertical tubular housing with pixel battens on 4 sides delivering both colourful accent lighting as well as eye-catching visual effects through the many built-in pixel macros which can be easily individually customised. The unit is waterproof and equipped with on-board Wireless DMX and can be used anywhere from corporate events and weddings right through to showrooms.


Main features:

  • Battery operated 360° pixel controlled LED fixtures
  • IP rated for outdoor events and with on-board wireless DMX
  • Built-in and customisable pixel effects and static looks
See variants

PHOTO GALLERY

Smart Tower
Smart Tower
Smart Tower
Smart Tower
Smart Tower
Smart Tower

Technical specifications

LIGHT SOURCE
  • Light source: 360° projection with 4 pcs strips of 60x0,2 W RGB / FC LEDs working together
  • Source: 4x60x0,2W RGB / FC LED
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: linear change from 2.600 K to 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: fixture for independent use, adjustable height of the base
  • Body: sturdy die-cast aluminium body
  • Body colour: black with white wash strips
  • Other: stand-up usable as accessorie for increase height of installation
CONTROL
  • Control units: WDMX
  • Protocols: DMX512
  • DMX channels: 8 / 15 / 18channel
  • Pixel control: 4 pcs strips pixel2pixel controllable all together
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° ~ +40°
  • LED Control: flicker free operation
BATTERY
  • Battery: lithium battery 14,8V
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in single colour mode up to: 18h
  • Estimated battery life in full-mode up to: 6h
  • Re-charge time: 6h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M10 threaded insert for easy clamp installation
  • Signal connection: WDMX
  • Power connection: adaptor base with external charger (included)
  • Dimensions (WxHxD): 119x632x119mm / 4.69''x24.88''x4.69''
  • Weight: 6kg / 13.23lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
<b>IR</b> Controller
IR Controller
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSmartower_A4_DATASHEET_(EN).pdf271KB
Letter datasheetSmartower_A4_DATASHEET_(IT).pdf273KB

User manual

DMX chart & personalities

File name File size Download
DMX chartSmartower_DMX_CHARTS.pdf51KB
SMARTOWER Firmware rev. 1.0.00
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKPSmartower_3D.skp178KB
2DSmartower_CAD_2D.dwg224KB
3DSmartower_CAD_3D.dwg2MB
Technical drawingSmartower_TECHNICAL_DRAWING.pdf65KB
VectorWorksVECTORWORKS_SYMBOLS.vwx199KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.00 STABLE 22/06/2018 Definitive stable version.
