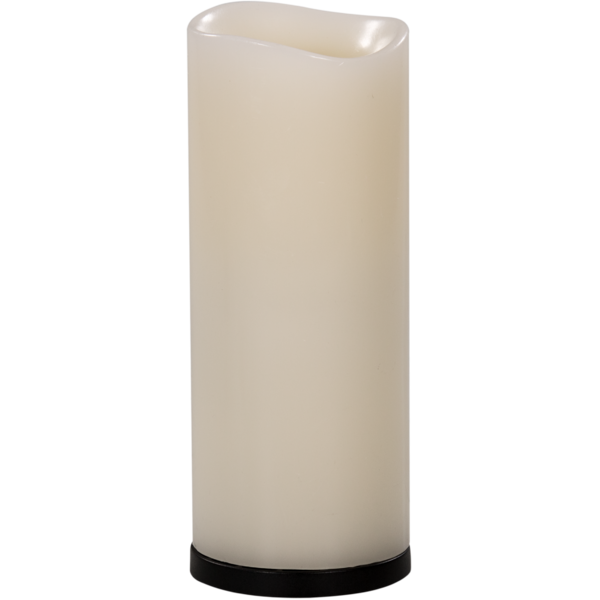

Smart Torch

Fireless, battery operated candle light

Smart Torch is an IP54 wireless, battery powered LED candle designed specifically for the event industry. Maintaining the aesthetic look of a candle with a simple normal flame effect, the Smart Torch can become part of a show with its RGBW LED and wireless DMX control.

Main features:

Battery powered and wireless DMX control for fast deployment and accurate control
Standard flame effect plus full RGBW control for dynamic effects
Available in a SMARTTORCHPACK featuring 6 lights with accessories in an ABS case

See variants

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 8x0,25W RGB + Warm White
CCT: 2.800 K ~3.200
Source life expectancy: > 30.000 h

COLOUR SYSTEM

Colour mixing: RGBW / FC
Macros: several pre-built pixel macros with adjustable speed

BODY

Body: paraffin wax

CONTROL

Protocols: W-DMX
DMX channels: 3 / 9 / 21channel
Wireless Control: included, wireless solution receiver
Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
IR: infrared sensor controlled by remote

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: 0° ~ +45°

ELECTRICAL

Mains power supply: DC 5 V - 1,6 A
Max power consumption: 2,85W

BATTERY

Battery: 5,0 Ah - 3,7V lithium
Estimated battery life in colour change mode up to: 21h
Estimated battery life in single colour mode up to: R: 18 h - G: 18 h - B: 19 h - W: 18h
Estimated battery life in full-mode up to: 8h
Re-charge connection: power cable fast-charge in pelican case
Re-charge time: 5h/max

PHYSICAL

IP rating: 54
Data connection: W-DMX receiver
Dimensions (WxHxD): 76x191x76mm / 2.99''x7.52''x2.99''
Weight: 0,64kg / 1.41lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

Versions

Code

SmartTorch

IRC

Recharger

Certifications

SMARTTORCH1 (DISCONTINUED)

1x1

CE, cTUVus, UKCA

SMARTTORCHPACK (DISCONTINUED)

1x6

CE, UKCA

Accessories & Related Products

C6002B

(optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

RSR0630B

(optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

LRLUNA

(optional)

Single Universe DMX transceiver with Bluetooth

IR Controller

(optional)

RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

Upbox 1

(optional)

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

	File name	File size	Download
	Smarttorch_A4_DATASHEET_(EN).pdf	186KB
	Smarttorch_A4_DATASHEET_(IT).pdf	182KB
	Smarttorchpack_A4_DATASHEET_(IT).pdf	182KB
	Smarttorchpack_A4_DATASHEET_(EN).pdf	186KB

User manual

	File name	File size	Download
	Smarttorch1_USER_MANUAL_ITEN.pdf	978KB
	GENERAL_BATTERY_SAFETY_INFO.pdf	3MB
	GENERAL_BATTERY_SAFETY_INFO.pdf	3MB
	Smarttorch_GENERAL_SAFETY_INFO.pdf	9MB
	Smarttorch1_Wireless_Protocol_Compatibilit_EN.pdf	4MB

DMX chart & personalities

	File name	File size	Download
	Smarttorch1_DMX_CHARTS.pdf	47KB

SMARTTORCH Firmware rev. 1.0

manufacturer fixture library (Link)	Link
prolights_smarttorch.d4	Download

manufacturer fixture library (Link)	Link
prolights_smarttorch_bas.hed	Download
prolights_smarttorch_ext.hed	Download
prolights_smarttorch_stnd.hed	Download

manufacturer fixture library (Link)

Link

prolights@smarttorch@basic@ma_library_update_v14.2.xmlp	Download
prolights@smarttorch@extended@ma_library_update_v14.2.xmlp	Download
prolights@smarttorch@standard@ma_library_update_v14.2.xmlp	Download

smarttorch basic.fix2	Download
smarttorch extended.fix2	Download
smarttorch standard.fix2	Download

Photometrics

	File name	File size	Download
	Smarttorch_PHOTOMETRICS.pdf	571KB
	Download DIALux product catalogue	-

CAD symbols & drawings

	File name	File size	Download
	Smarttorch_3D.skp	860KB
	Smarttorch1_CAD_2D.dwg	345KB
	Smarttorch1_CAD_3D.dwg	3MB
	Smarttorch_TECHNICAL_DRAWING.pdf	115KB
	VECTORWORKS_SYMBOLS.vwx	166KB
	PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx	317MB
	PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx	488MB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
