SOLAR27Q
PROLIGHTS

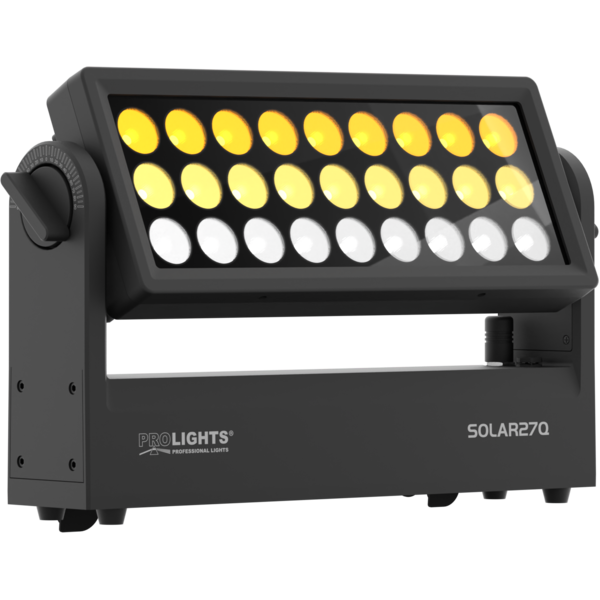

Solar 27Q

ORDER CODE: SOLAR27Q

27x10W high brightness indoor/outdoor compact wash light

Solar 27Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 10'832 lumens. Equipped with 27x10W RGBW/FC LEDs, delivering superior colour mixing. Featuring a slim size as well as the multiple interchangeable optics through magnets, including asymmetrical filters which, all together, make the Solar 27Q an incredibly flexible device for indoor use and outdoor. Whilst highly-powerful, the Solar 27Q also benefits from being silent.

Main features:

  • 27x10W RGBW/FC LEDs, delivering 10'832 lumens
  • Compact form factor and fan-free
  • Wireless DMX on-board
See variants

PHOTO GALLERY

Solar 27Q
Solar 27Q
Solar 27Q
Solar 27Q

Technical specifications

LIGHT SOURCE
  • Source: 27x10W RGBW / FC LEDs
  • Luminous flux: @FULL 10'832 lm - with included filter 6'987
  • Lux: @FULL (25°) 6'340 lx - with included filter 1'027lx @3 m full
  • Lux: @FULL (25°) 2.282 lx - with included filter 370lx @5 m full
  • CRI: 71,8
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Additional optics: 10° / 15° / 45° / 40° filter /60° filter/ 10x60° filter / 30x60° filter
  • Other: magnetic 40° filter included , barn door not included
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • FX generator: section effect with 3 horizontal individually select and control sections
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: magnetic filter frame with 40° filter
  • Tilt range: 0 - 150° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, W-DMX
  • DMX channels: 5 / 7 / 10 / 13 / 17channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +50° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 268W
  • Max power consumption (at 120V): 275W
  • Output (at 230V): 9 units on a single power line
  • Output (at 120V): 5 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: W-DMX receiver
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 454x269x83mm / 17.87''x10.59''x3.27''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSolar27q_A4_DATASHEET_(IT).pdf218KB
Letter datasheetSolar27q_A4_DATASHEET_(EN).pdf213KB
Tender SpecificationSolar27q_TENDER_SPECIFICATION.pdf3MB

User manual

File name File size Download
User manualSolar27q_USER_MANUAL_EN.pdf7MB

DMX chart & personalities

File name File size Download
DMX chartSolar27q_DMX_CHARTS.pdf107KB
SOLAR27Q Firmware rev. 3.8
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_solar27q_5ch.hedDownload
prolights_solar27q_7ch.hedDownload
prolights_solar27q_10ch.hedDownload
prolights_solar27q_13ch.hedDownload
manufacturer fixture library (Link) Link
prolights@solar27q_10ch@.xmlDownload
prolights@solar27q_17ch.xmlDownload
prolights@solar27q_17ch.hog4showDownload

Photometrics

File name File size Download
IESprolights_solar27q_blue_15°_10x60° filter.ies30KB
IESprolights_solar27q_blue_15°_30x60° filter.ies30KB
IESprolights_solar27q_blue_15°_40° filter.ies30KB
IESprolights_solar27q_blue_15°_60° filter.ies30KB
IESprolights_solar27q_blue_15°_without filter.ies30KB
IESprolights_solar27q_blue_25°_40° filter.ies30KB
IESprolights_solar27q_blue_45°_10x60° filter.ies30KB
IESprolights_solar27q_blue_45°_30x60° filter.ies30KB
IESprolights_solar27q_blue_45°_40° filter.ies30KB
IESprolights_solar27q_blue_45°_60° filter.ies30KB
IESprolights_solar27q_blue_45°_without filter.ies30KB
IESprolights_solar27q_green_15°_10x60° filter.ies30KB
IESprolights_solar27q_green_15°_30x60° filter.ies30KB
IESprolights_solar27q_green_15°_40° filter.ies30KB
IESprolights_solar27q_green_15°_60° filter.ies30KB
IESprolights_solar27q_green_15°_without filter.ies30KB
IESprolights_solar27q_green_25°_40° filter.ies30KB
IESprolights_solar27q_green_45°_10x60° filter.ies30KB
IESprolights_solar27q_green_45°_30x60° filter.ies30KB
IESprolights_solar27q_green_45°_40° filter.ies30KB
IESprolights_solar27q_green_45°_60° filter.ies30KB
IESprolights_solar27q_green_45°_without filter.ies30KB
IESprolights_solar27q_red_15°_10x60° filter.ies30KB
IESprolights_solar27q_red_15°_30x60° filter.ies30KB
IESprolights_solar27q_red_15°_40° filter.ies30KB
IESprolights_solar27q_red_15°_60° filter.ies30KB
IESprolights_solar27q_red_15°_without filter.ies30KB
IESprolights_solar27q_red_25°_40° filter.ies30KB
IESprolights_solar27q_red_45°_10x60° filter.ies30KB
IESprolights_solar27q_red_45°_30x60° filter.ies30KB
IESprolights_solar27q_red_45°_40° filter.ies30KB
IESprolights_solar27q_red_45°_60° filter.ies30KB
IESprolights_solar27q_red_45°_without filter.ies30KB
IESprolights_solar27q_rgbw_15°_10x60° filter.ies30KB
IESprolights_solar27q_rgbw_15°_30x60° filter.ies30KB
IESprolights_solar27q_rgbw_15°_40° filter.ies30KB
IESprolights_solar27q_rgbw_15°_60° filter.ies30KB
IESprolights_solar27q_rgbw_15°_without filter.ies30KB
IESprolights_solar27q_rgbw_25°_40° filter.ies30KB
IESprolights_solar27q_rgbw_45°_10x60° filter.ies30KB
IESprolights_solar27q_rgbw_45°_30x60° filter.ies30KB
IESprolights_solar27q_rgbw_45°_40° filter.ies30KB
IESprolights_solar27q_rgbw_45°_60° filter.ies30KB
IESprolights_solar27q_rgbw_45°_without filter.ies30KB
IESprolights_solar27q_white_15°_10x60° filter.ies30KB
IESprolights_solar27q_white_15°_30x60° filter.ies30KB
IESprolights_solar27q_white_15°_40° filter.ies30KB
IESprolights_solar27q_white_15°_60° filter.ies30KB
IESprolights_solar27q_white_15°_without filter.ies30KB
IESprolights_solar27q_white_25°_40° filter.ies30KB
IESprolights_solar27q_white_45°_10x60° filter.ies30KB
IESprolights_solar27q_white_45°_30x60° filter.ies30KB
IESprolights_solar27q_white_45°_40° filter.ies30KB
IESprolights_solar27q_white_45°_60° filter.ies30KB
IESprolights_solar27q_white_45°_without filter.ies30KB
PhotometricsSolar27q_PHOTOMETRICS.pdf7MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings

File name File size Download
3D RFASolar27q_3D.rfa568KB
3D SKPSolar27q_3D.skp345KB
2DSolar27q_CAD_2D.dwg2MB
3DSolar27q_CAD_3D.dwg684KB
2D cad symbolsSolar27q_CAD_2DSYMBOLS.dwg218KB
Technical drawingSolar27q_TECHNICAL_DRAWING.pdf375KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx641KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.8 STABLE 14/01/2025 Firmware for Hardware revision: 2.0 - To check revision please refer to serial number. Units with hardware revision 2.0 are with serial number starting from xxxxx0120xxx.

Improvement:
  • Set by default Full on Mode@HB Mode.
2.8 STABLE 13/01/2025 Firmware for Hardware revision: 1.0 - To check revision please refer to serial number. Units with hardware revision 1.0 are with serial number before of xxxxx0120xxx.

Improvement:
  • Set Full on Mode@HB Mode by default.
