STARDRAPERGBW
TRIBEby TRIBE
discontinued

STARDRAPERGBW

ORDER CODE: STARDRAPERGBW

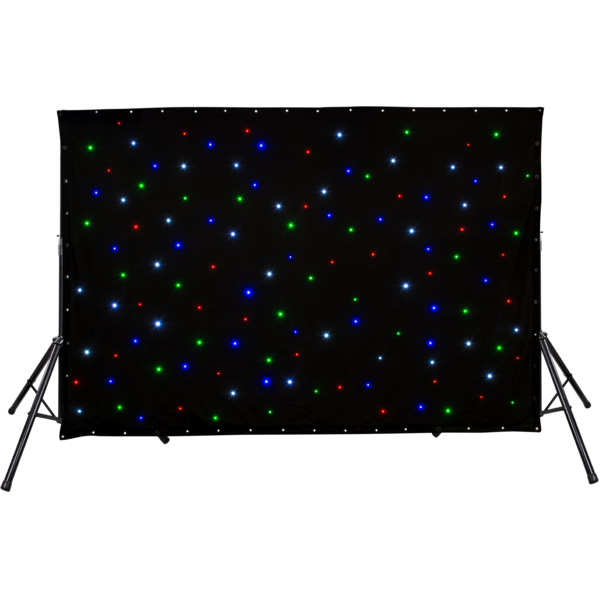

STARDRAPERGBW is a LED curtain created to emulate light backdrops. STARDRAPERGBW is built in a fireproof textile material with 120 RGBW SMD LED (30 for each colour), in 300x200 cm modular sizes. Power supply and control driver are built inside an external box (included) which allows for the setting up of the DMX address and allows the user to run a wide range of auto-show, Sound-show or static patterns. STARDRAPERGBW is an innovative scenographic solution, usable in a wide range of applications such as stages, clubs, weddings,  ceremonies, showroom and conference. STARDRAPERGBW is packed in a nylon bag with drape, control box and the mounting set included.

Main features:

  • 120 (30 for each colour) RGBW SMD LED
  • Flexible tissue, flame-retardant
  • Flicker-free operations
  • Packed in a nylon bag with drape, control box and mounting set included
See variants

PHOTO GALLERY

STARDRAPERGBW

Technical specifications

LIGHT SOURCE
  • Source: 120x0.5W SMD RGBW LED
  • Source life expectancy: > 50.000 h
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: flexible tissue, flame-retardant
  • Body colour: black
CONTROL
  • Control units: Via external box (included)
  • Protocols: DMX512
  • DMX channels: 8 channel
  • Display: LCD display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1-28 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 30W~150W
PHYSICAL
  • IP rating: 20
  • Signal connection: 3p IN/OUT
  • Power connection: 4p IN/OUT
  • Dimensions (WxHxD): 300x200mm / 11.81''x7.87''
  • Weight: 4kg / 8.82lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualStardrapergbw_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

manufacturer fixture library (Link) Link
prolights_stardrapergbw.d4Download
manufacturer fixture library (Link) Link
prolights_stardrapergbw_8ch.hed Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.1 STABLE 05/07/2018
