StudioCob DY

100W Daylight White COB PAR with a parabolic reflector

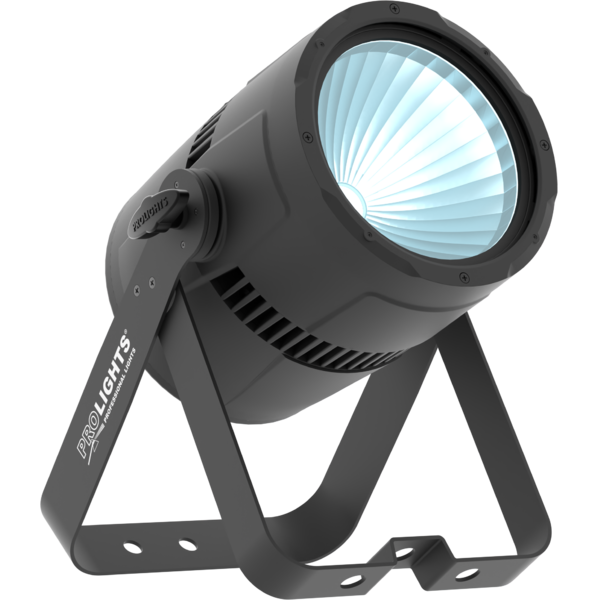

StudioCob DY is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

100W 5.000 K COB LED source with HD dimming and high CRI
Flexible lens options of 15° - 30° - 60°
Functional barn doors for beam control

See variants

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 100W high-power white LED
CCT: 5.000
Luminous flux: 8'139
Lux: (60°) 790lx @3 m
Lux: (30°) 1'698lx @3 m
CRI: 83
R9: 74
TLCI: 70
TM30 Rf: 82
TM30 Rg: 94
Source life expectancy: > 30.000 hrs (L80B10 @Ta 25° C / 77° F)

OPTICS

Beam angle: 66°
Field angle: 98°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) - 15° (opt)

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black, mirror and white finishing available

CONTROL

Protocols: DMX512
DMX channels: 1 / 2 / 5channel
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 109W
Max power consumption (at 120V): 109W
Output (at 230V): 12 units on a single power line
Power factor: 0,94

PHYSICAL

IP rating: 20
Cooling: active, silent operation
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
Weight: 4,5kg / 9.92lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x STUDIOCOBDY
1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
User Manual

Versions

Code

Housing

STUDIOCOBDYBK

Black

STUDIOCOBDYCR

Chrome

STUDIOCOBDYWH (END OF LIFE)

White

VIDEOS

Accessories & Related Products

C6002B

(optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

TOUR53415L03

(optional)

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

TOUR53413L03

(optional)

Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

958025L03

(optional)

3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m

9513FCAL03

(optional)

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m

9533FCAL03

(optional)

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m

RSR0630B

(optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

STUDIOCOBBD

(optional)

Barn door 4 directional flaps to adjust the light beam, f. frame included

STUDIOCOBL15

(optional)

Optics for STUDIOCOB projectors series, 15°

STUDIOCOBL30

(included)

Optics for STUDIOCOB projectors series, 30°

FCLPAR4190

(optional)

Flight case for 8 STUDIOCOB, VERSAPAR

STUDIOCOBTPG

(optional)

Filter frame for STUDIOCOB projectors

Upbox 1

(optional)

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

UPBOXPRO

(optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
