    Code Housing Avail.
    STUDIOCOBDYBK Black
    STUDIOCOBDYCR Chrome
    STUDIOCOBDYWH White

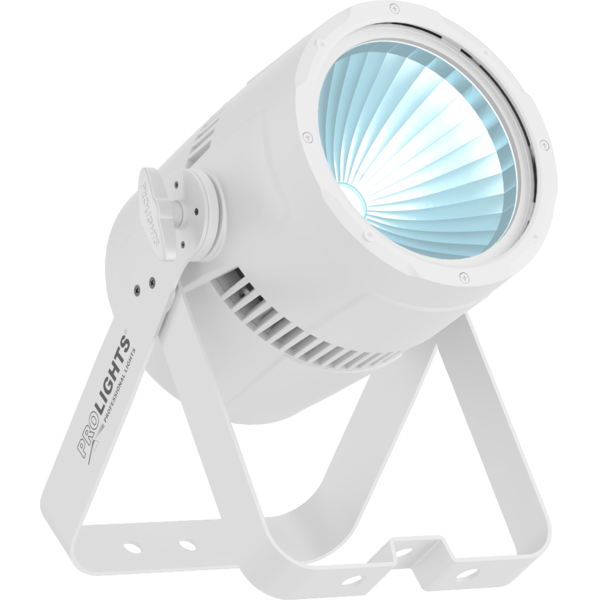

    StudioCob DY is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

    Features:
    100W 5.000 K COB LED source with HD dimming and high CRI
    Flexible lens options of 15° - 30° - 60°
    Functional barn doors for beam control

    LIGHT SOURCE
    • Source:
      100
      W
      high-power white LED
    • CCT:
      5.000
      K
    • Luminous flux:
      5'290
      lm
    • Lux:
      (30°) 1'940
      lx
      @3 m
    • CRI:
      83
    • R9:
      82,6
    • Other:
      TLCI (Qa): 68,7
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      60
      °
    • Field angle:
      80
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      30° (inc) - 15° (opt)
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, mirror and white finishing available
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      1 / 2 / 5
      channel
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      104
      W
    • Max power consumption (at 120 V):
      104
      W
    • Output (at 230 V):
      12
      units on a single power line
    • Power factor:
      0,9346
    PHYSICAL
    • Cooling:
      active, silent operation
    • Sospension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      262x190x371
      mm
    • Weight:
      4,5
      kg
