UNIU4XRP260I1X10B
UNILUMIN

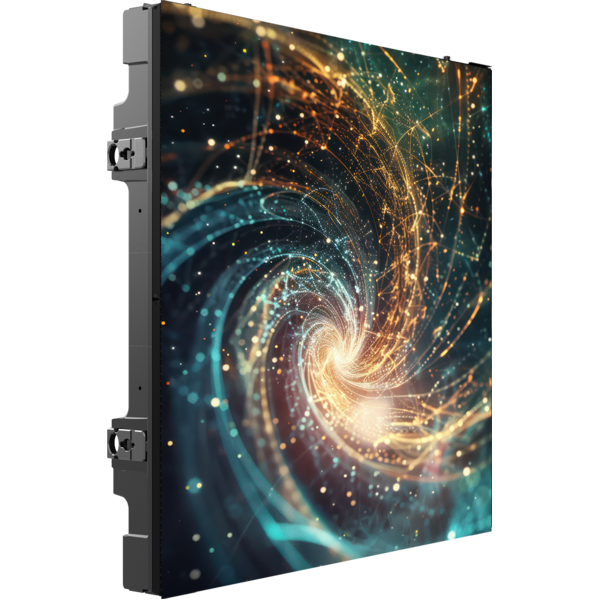

UPADIV XR P2.6 indoor full black new

ORDER CODE: UNIU4XRP260I1X10B

Indoor LED wall module, SMD1515 BF, p.2,6mm, 50x50cm, 192×192pix, 1200nit, 6,3kg

The UPAD 4 XR P2.6 is a next-generation indoor rental LED display, engineered for XR environments, live events, and broadcast productions that demand outstanding image quality and maximum flexibility.

With a 2.6 mm pixel pitch and a density of 147,456 pixels/m², it delivers sharp, detailed visuals ideal for immersive setups and virtual studios. Offering 1,200 nits brightness and a 6,000:1 contrast ratio, it ensures vivid and realistic content, while its wide color gamut (≥95% DCI-P3) guarantees professional-grade color accuracy. The ultra-high 7,680 Hz refresh rate and video frame rates up to 240 Hz provide smooth, flicker-free performance, even for high-speed video capture.

Each cabinet, built from die-cast magnesium, is compact (500×500×70 mm), lightweight (6.3 kg), and robust. Designed for modular setups, it supports concave and convex curves (-5° to +10°) and allows both front and rear maintenance.

With a typical power consumption of 50 W per cabinet, advanced calibration features, the UPAD 4 XR P2.6 is the ultimate solution for XR studios, virtual productions, and visually impactful stage designs.

Main features:

  • High-definition XR: 2.6 mm pixel pitch for crisp, detailed visuals.
  • Brightness and contrast: 1,200 nits and 6,000:1 ratio for vivid, realistic content.
  • Color accuracy: ≥95% DCI-P3 coverage for immersive, true-to-life colors.
  • Ultimate smoothness: 7,680 Hz refresh rate and video frame rates up to 240 Hz.
  • Lightweight and durable: die-cast magnesium cabinet weighing just 6.3 kg.
  • Versatile configurations: concave and convex curves from -5° to +10°.
  • Easy maintenance: full front and rear access.
  • Efficiency and reliability: low 50 W typical power consumption with stable performance.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: MBI 5264
  • LED source: SMD 1515 full black with anti-reflection coating trattament
  • Pixel pitch: 2.6 mm
  • Panel resolution: 192x192pixels
  • Module resolution: 96x96pixels
  • Luminous flux: 1.200nit
  • Contrast: 6.000:1
  • Grayscale: 16 bit
  • Refresh rate ≥: 7.680Hz
  • Frame rate: 23.5~240 Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 147.456LED/sqm
ELECTRICAL
  • Power input/output: Neutrik PowerCON TRUE IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 150W
  • Avg power consumption (panel): 50W
  • Max power consumption (sqm): 600W
  • Avg power consumption (sqm): 200W
  • Standby power consumption (pannello): 35W
  • Max rated current/panel:: AC 220 V / 7.3 A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A10S PRO
  • Control protocol: Novastar
  • Signal input: Neutrik Standard RJ45 EtherCon
  • Signal output: Neutrik Standard RJ45 EtherCon
MECHANICS
  • Other specifics: curve configurations with blocks, corner protection, auto-lock mechanics, calibration chip on LDM
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×70.1mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 6,3kg / 13.89lbs
  • Weight per square meter: 25,2kg / 55.56lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Die-cast magnesium housing
  • Finish: black
INSTALLATION
  • Curve configurations: convex accessories up to +10°, concave accessories down to -5° - see available options
CERTIFICATIONS / REPORTS
  • Compliance: TUV-CE/CB/FCC/IC/UL
