UNIURM3P190I1X1HB
UNILUMIN

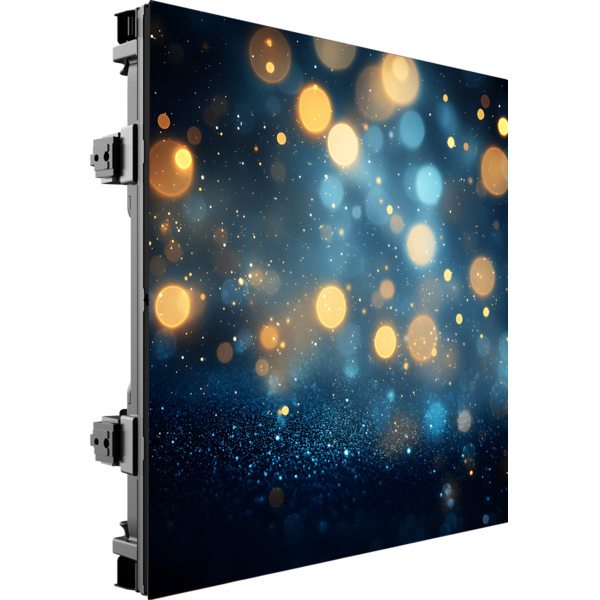

URMIII P1.9 HOB indoor black face new

ORDER CODE: UNIURM3P190I1X1HB

Indoor LED wall module, SMD1212 BF, HOB version, p.1,9mm, 50x50cm, 256x256pix, 800nit, 7,5kg

The URMIII P1.9 HOB is a high-performance indoor rental LED display, engineered for live events, broadcast applications, and corporate environments that demand premium image quality and ease of use.

With a 1.9 mm pixel pitch and a density of 262,144 pixels/m², it delivers sharp, detailed visuals even at close viewing distances. The 3-in-1 Black SMD technology enhances black levels and color richness, while its 800 nits brightness and 3,000:1 contrast ratio ensure vivid, realistic content. A high 7,680 Hz refresh rate guarantees smooth, flicker-free playback, perfectly suited for professional video productions.

Each cabinet, built from die-cast aluminum, weighs just 7.5 kg and features a click-lock system that allows fast, one-person installation. Automatic corner protection and support for concave and convex curves up to ±10° enable creative stage designs and dynamic setups. Maintenance access from both the front and rear ensures maximum flexibility in live environments.

Combining low power consumption with a robust, durable build, the URMIII P1.9 HOB guarantees reliable performance and long-lasting operation for touring, exhibitions, and temporary installations.

Main features:

  • High definition: 1.9 mm pixel pitch for ultra-detailed images.
  • Brilliant brightness: 800 nits with vivid, rich color reproduction.
  • Absolute smoothness: 7,680 Hz refresh rate for flawless playback.
  • Contrast and consistency: 3,000:1 ratio with 160°/160° viewing angles.
  • Creative freedom: concave and convex curves up to ±10° for dynamic designs.
  • Lightweight and robust: 7.5 kg die-cast aluminum cabinet.
  • Quick installation: click-lock system for fast, secure setups.
  • Integrated protection: automatic corner shields safeguard the panels.
  • Simplified maintenance: front and rear service access.
  • Built to last: efficient power use and rugged design for intensive applications.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICND 1065S
  • LED source: SMD 1212 full black
  • Pixel pitch: 1.9mm / 0.07''
  • Panel resolution: 256x256pixels
  • Module resolution: 128x128pixels
  • Luminous flux: 800nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/32 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 262.144LED/sqm
ELECTRICAL
  • Power input/output: Seetronic powerCON IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 120W
  • Avg power consumption (panel): 35W
  • Max power consumption (sqm): 480W
  • Avg power consumption (sqm): 140W
  • Standby power consumption (pannello): 18W
  • Max rated current/panel:: AC220V / 0.6A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: Seetronic RJ45
  • Signal output: Seetronic RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500x71mm / 19.69''x2.8''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7,5kg / 16.53lbs
  • Weight per square meter: 30kg / 66.14lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
BODY
  • Body: die-cast aluminium housing
  • Curve configurations: convex and concave -10° / +10°
  • Body colour: black
PHYSICAL
  • IP rating: IP30
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC

Versions

Accessories & Related Products

<b>URMIII</b> Flight case 10-in-1
URMIII Flight case 10-in-1
(Optional)
Flightcase 10 in1 for URMIII series
<b>URMIII</b> Fly / Ground bars
URMIII Fly / Ground bars
(Optional)
Fly bar / ground bar for URMIII systems, 1 column
<b>URMIII</b> Fly / Ground bars
URMIII Fly / Ground bars
(Optional)
Fly bar / ground bar for URMIII systems, 2 columns
KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXBS21
KSXBS21
(Optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
SXXJ
SXXJ
(Optional)
Metal joint used to connect 4 pcs SIGMAX series cabinets
OXXJ
OXXJ
(Optional)
Metal joint used to connect 4 pcs OMEGAX or SIGMAX cabinets, M10 hole
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display
<b>URMIII</b> Indoor Power cables
URMIII Indoor Power cables
(Optional)
Power cable for URMIII Indoor LED Display series, Seetronic, L.1 m
<b>URMIII</b> Indoor Power cables
URMIII Indoor Power cables
(Optional)
Power cable for URMIII Indoor LED Display series, Seetronic, L.10 m
<b>URMIII</b> Indoor Data cables
URMIII Indoor Data cables
(Optional)
Data cable for URMIII LED Indoor Display series assembled with RJ45, L 1 m
<b>URMIII</b> Indoor Data cables
URMIII Indoor Data cables
(Optional)
Data cable for URMIII Indoor LED Display series assembled with RJ45, L 10 m
FMTOOL
FMTOOL
(Optional)
Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)
MRTOOL
MRTOOL
(Optional)
Mask Replacement TOOL for OMEGAX26B and OMEGAX26BE

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetUniurm3p190i1x1hb_A4_DATASHEET_(EN).pdf(06/10/2025)726KB

User manual

File name File size Download
User manualUniurm3p190i1x1hb_USER_MANUAL_EN.pdf(03/10/2025)6MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DUniurm3p190i1x1hb_CAD_2D.dwg(17/11/2025)3MB
Technical drawingUniurm3p190i1x1hb_TECHNICAL_DRAWING.pdf(17/11/2025)557KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.9.2.0 STABLE 03/09/2025 Stable release.
